Gridspan joint connector G
Type GS Splice EG
|Item no. 6909222
|EAN 4012196575336
Item no. / Type
6909222 / GS Splice EG
Width
29 mm
Height
24 mm

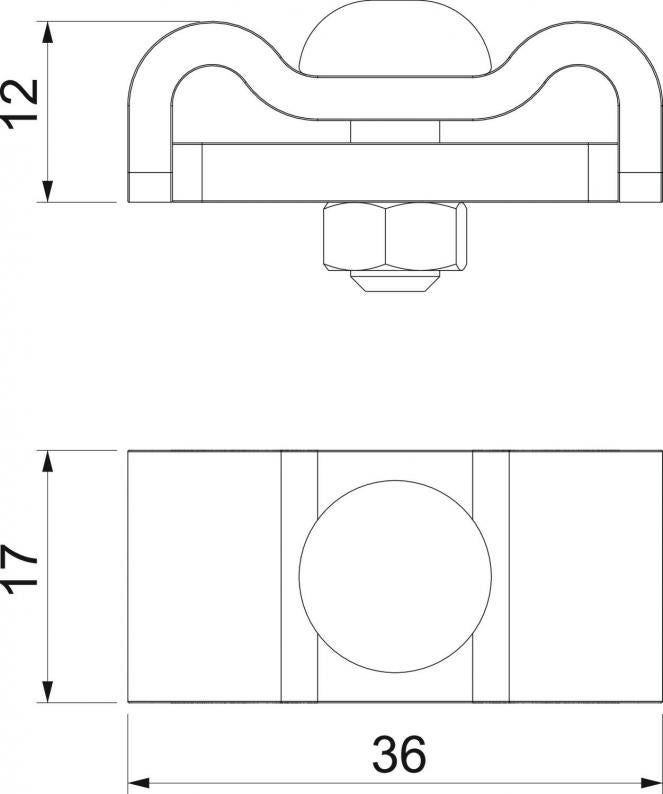

Dimension
35x17x12
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description

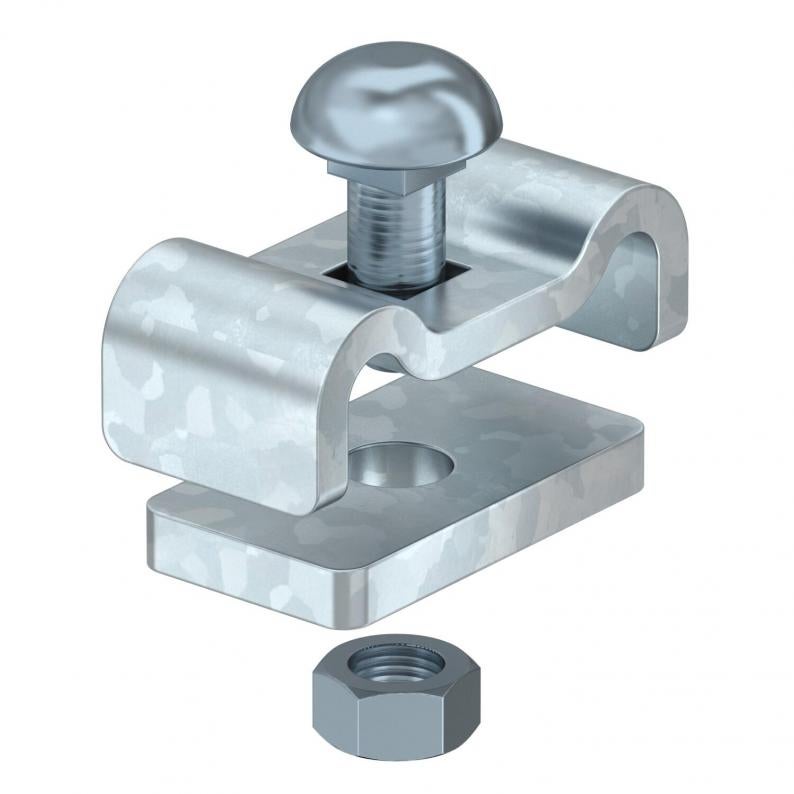

Screwed version of joint connector for mesh cable trays.
Technical data
Dimensions
| Length | 34 mm |
|---|---|
| Width | 29 mm |
| Height | 24 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Quantity of bolts | 1 St. |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for mesh cable tray wire, min. | 5 mm |
| Version for | Joint plate |
| Connection type | Screw connector |
| Dimension | 35x17x12 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Height
Dimension
Surface
Material
Item no.
GS Splice EG
29
24
35x17x12
Hot-dip galvanised
Steel
6909222
GS Splice EG
Item no.
6909222
Width
29
Height
24
Dimension
35x17x12
Surface
Hot-dip galvanised
Material
Steel
