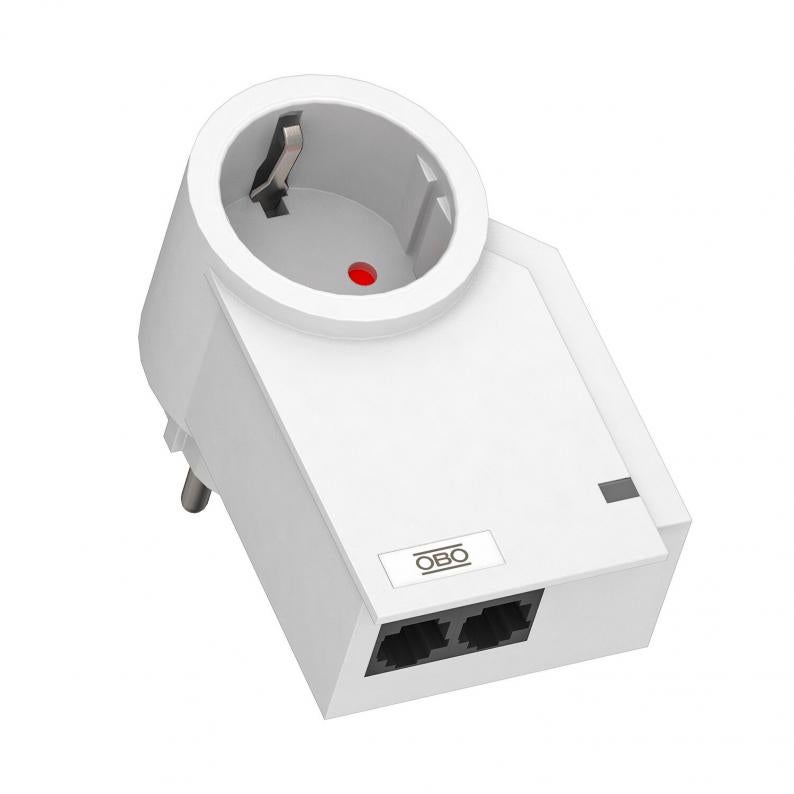

FineController FC-ISDN for ISDN telephone systems and terminals

Type FC-ISDN-D

Item no. 5092812

EAN 4012195047223

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5092812 / FC-ISDN-D

Country-specific version

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

Type 3 combined surge protection to EN 61643-11
designed for use in ISDN / DSS 1 telephone systems and terminals.

• Adapter connector
• Cut-off unit and function display
• With increased contact protection
• Incl. 0.5 m connection cable RJ12
• Maximum continuous voltage, ISDN connection 6 V DC / 1.5 A (25 °C)
• Limit frequency: type 300 kHz

Note: The technical data in the table below refers to the power supply.

Technical data

Protection level (L-N / L/N-PE)	<1200 / <1500 V
Signalling on device	None
Protection rating	IP20
Protection level (L-N)	< 1,2 kV
Protection level (N-PE)	< 1,5 kV
Nominal voltage	230 V
Test class, type 3	yes
With interference suppression filter	no
Version for	Schuko − ISDN
Country-specific version	D
Max. continuous operating voltage	275 V
SPD to IEC 61643-11	Class III
SPD to EN 61643-11	Type 3
Lightning protection zone LPZ	2→3
Protection level	< 1,5 kV
Nominal discharge surge current	3 kA
Rated current	16 A
Response time	<25 ns
Maximum back-up fuse	16 A
Permitted temperature range, min.	-25 °C
Permitted temperature range, max.	75 °C
Dimension	230V
Colour	Pure white; RAL 9010
