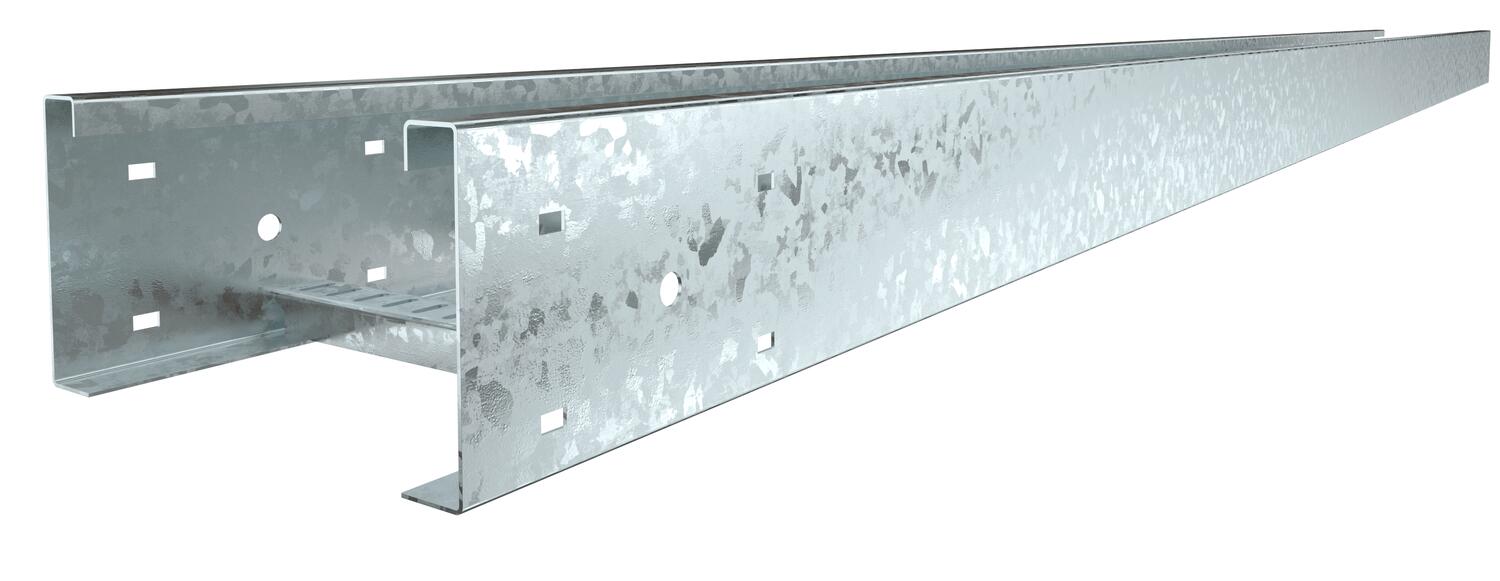

Cable ladder SSP150 Nema 20B, 6 m

Cable ladder SSP150 Nema 20B, 6 m

Type SSP150 200 HDG
|
Item no. 6905303
|
EAN 4012196074792
Show all variants
Item no. / Type
Length
Width
Rail thickness

Smallest selling unit: 6 m

m

Description

Heavy-duty SSP150 cable ladder system Nema 20B, welded version. The side height is 150 mm with a supply length of 6,000 mm.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

Dimensions

Length6000 mm
Width200 mm
Height150 mm
Dimension B200 mm

Loads

Support spacing 4.0 m1,6 kN/m
Support spacing 5.0 m1,1 kN/m
Support spacing 6.0 m0,8 kN/m
Support spacing 7.0 m0,4 kN/m

Technical data

Rung distance300 mm
Rail thickness1,6 mm
Dimension6000x200x150
SurfaceHot-dip galvanised
MaterialSteel

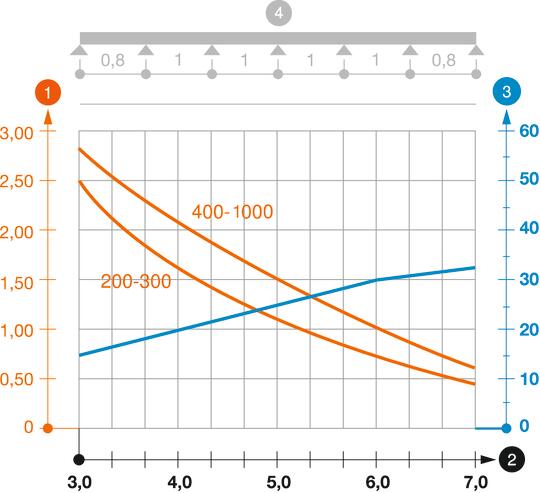

Load diagram, wide span cable ladder, type SSP150 Nema 20A

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width
