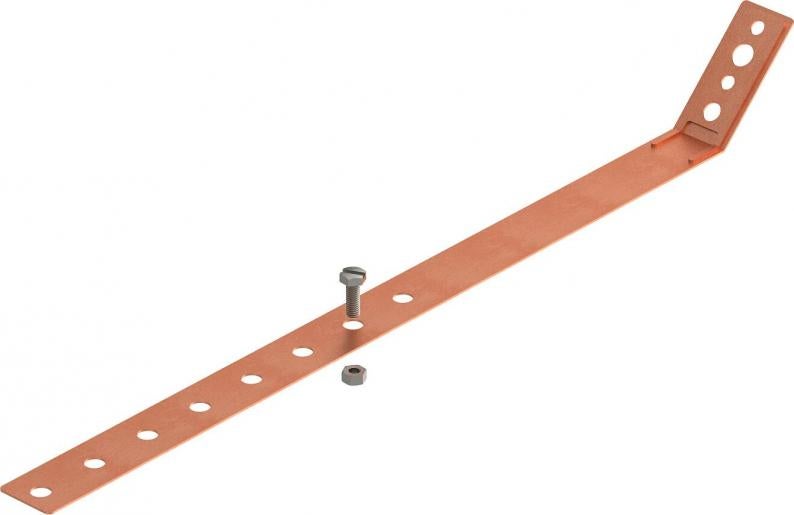

Universal downpipe clip 60−130 mm Cu
Type 301 V-CU
|Item no. 5350883
|EAN 4012195426851
Item no. / Type
5350883 / 301 V-CU
Material
Copper
Smallest selling unit: 5 piece
5piece
piece
Description
• Adjustable for pipe diameter of 60−130 mm
• With 2 connection holes Ø 7 mm
• With 1 connection hole Ø 9 mm
• With 1 connection hole Ø 11 mm
• Incl. hexagonal bolt M6 x 20 and M6 nut
• With 2 connection holes Ø 7 mm
• With 1 connection hole Ø 9 mm
• With 1 connection hole Ø 11 mm
• Incl. hexagonal bolt M6 x 20 and M6 nut

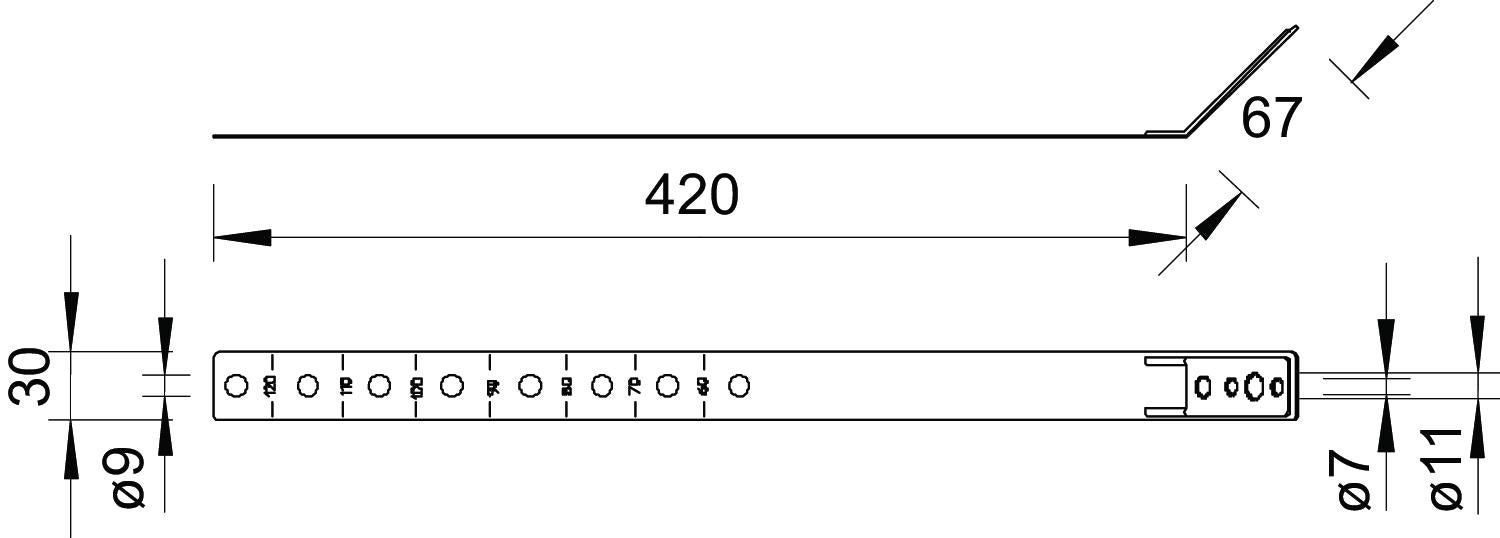

Technical data
Technical data
| explosion-proof | no |
|---|---|
| Bimetal connector | no |
| Integrated round conductor guide | no |
| Connection hole | 11 mm |
| Dimension | 420mm |
| Material | Copper |
| Clamping range, min. | 60 mm |
| Clamping range, max. | 130 mm |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5018 kg CO2e / 1 Piece |
|---|
