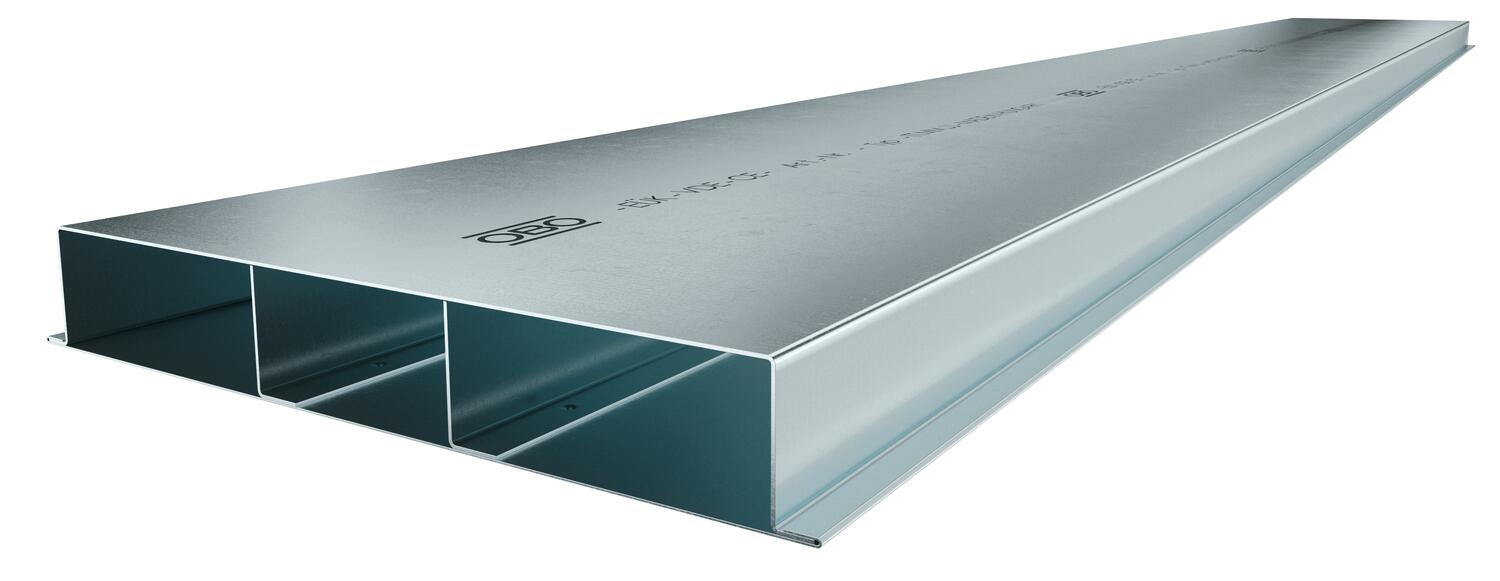

Underfloor installation duct, 3-compartment, trunking height 38 mm
Type S3 25038
|Item no. 7400328
|EAN 4012195089346
Item no. / Type
7400328 / S3 25038
Length
2000 mm
Width
250 mm
Number of compartments
3 St.
This item is a discontinued product!
Smallest selling unit: 2 m
2m
m
Description
Underfloor installation duct for laying cables under the floor.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 250 mm |
| Height | 38 mm |

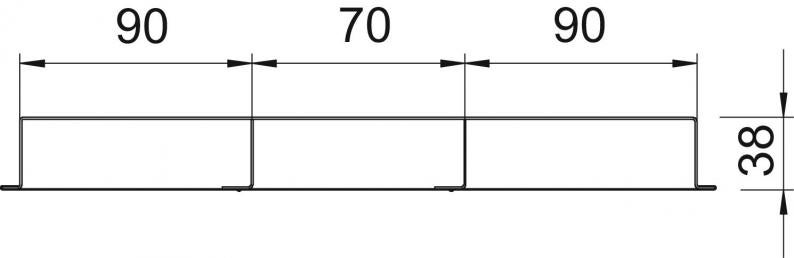

| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 38 mm |
Technical data
| Usable cross-section | 8820 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of fixed partitions | 2 |
| Cross-section, draw a | 3168 mm² |
| Cross-section, draw b | 2484 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 38 mm |
| Dimension | 2000x250x38 |
| Surface | Strip galvanised |
| Material | Steel |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 9,845 kg CO₂e / 1 Meter |
|---|
