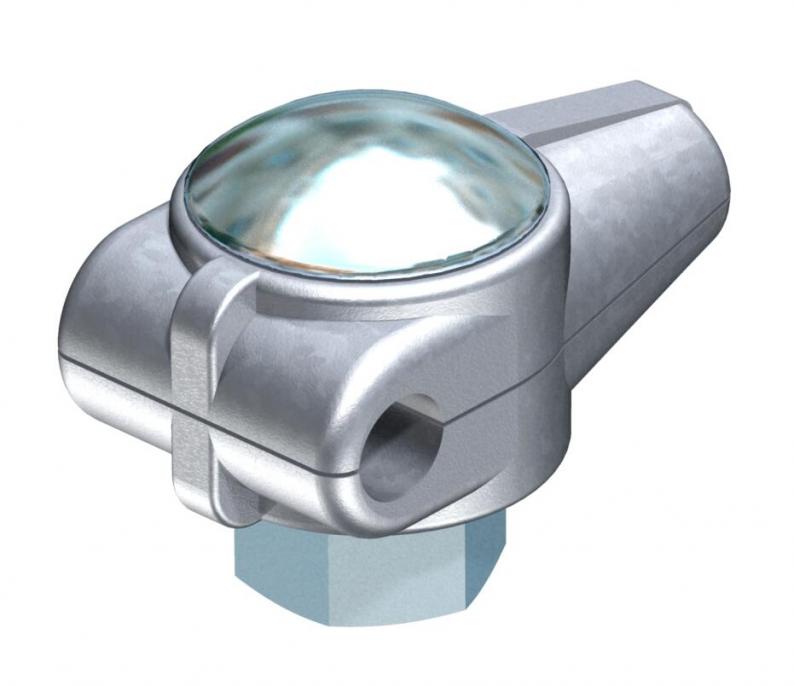

T connector Rd 8 mm
Type 244
|Item no. 5311039
|EAN 4012195417316
Item no. / Type
5311039 / 244
Fit
Rd 8 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With truss-head bolt M10 x 30 and hexagonal nut M10
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Gutter bolt |
| Type of connector | T connector |
| Suitable for connection | Round conductor Rd 8 / Rd 8 |
| Lightning current carrying capacity | N/50 kA |
| Fit | Rd 8 mm |
| Dimension | 8mm |
| Surface | Electrogalvanised |
| Material | Die-cast zinc |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7061 kg CO2e / 1 Piece |
|---|
