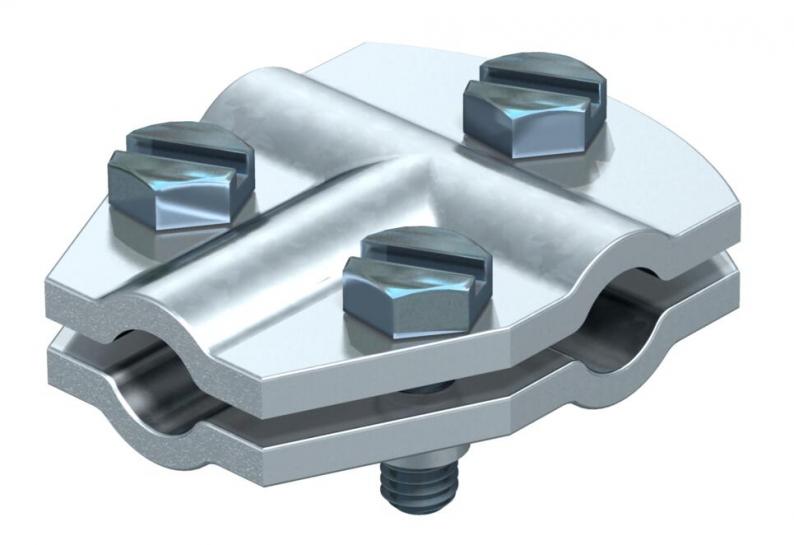

T connector Rd 8-10 mm, triple-screwed FT

T connector Rd 8-10 mm, triple-screwed FT

Type 247 8-10 FT
|
Item no. 5311209
|
EAN 4012195417491
Show all variants
Item no. / Type
5311209 / 247 8-10 FT
Fit
Rd 8-10 mm

Smallest selling unit: 10 piece

piece

Description

• With 3 hexagonal bolts M6 x 16 (VA)
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Intermediate plateno
Type of fastening screwHexagonal bolt
Type of connectorT connector
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
Lightning current carrying capacityN/50 kA
FitRd 8-10 mm
Dimension8-10mm
SurfaceHot-dip galvanised
MaterialSteel

page.product.environmentalData.environmentalData

CO2 Footprint (GWP) Cradle-to-Gate0,3008 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

247 8-10 FT
Item no.
5311209
Fit
Rd 8-10
