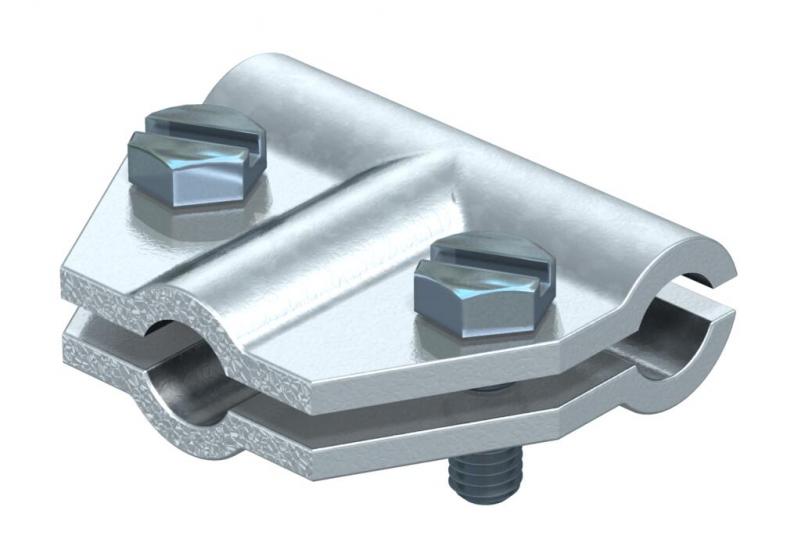

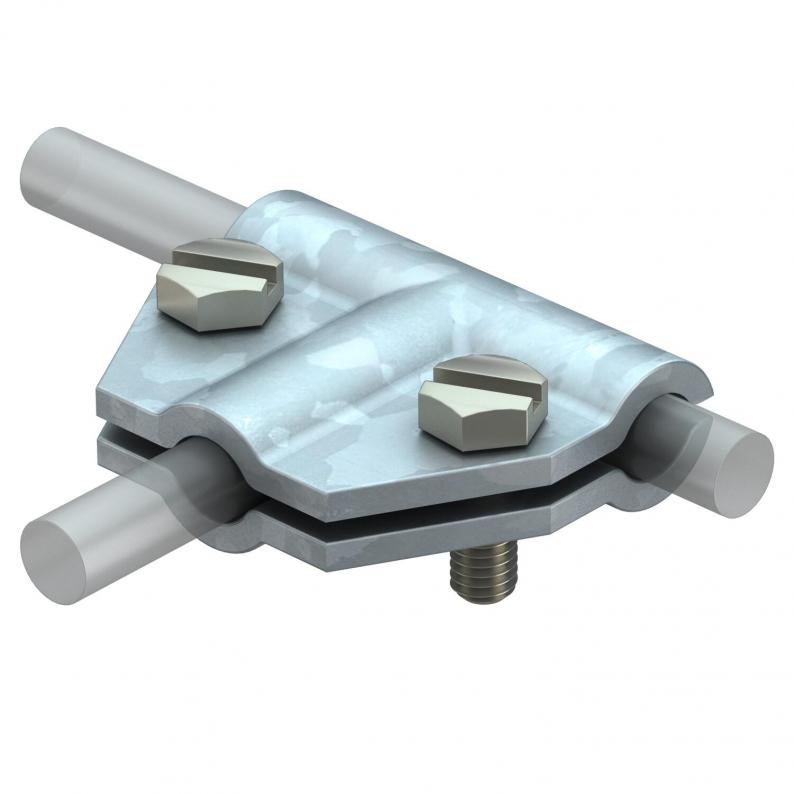

T connector Rd 8−10 mm FT
Type 245 8-10 FT
|Item no. 5311101
|EAN 4012195417378
Item no. / Type
5311101 / 245 8-10 FT
Fit
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With 2 hexagonal bolts M6 x 16 (VA)
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | T connector |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | N/50 kA |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2506 kg CO2e / 1 Piece |
|---|
