T branch piece PT38 FT
Type PT38 76 HDG
|Item no. 6900463
|EAN 4012196061785
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

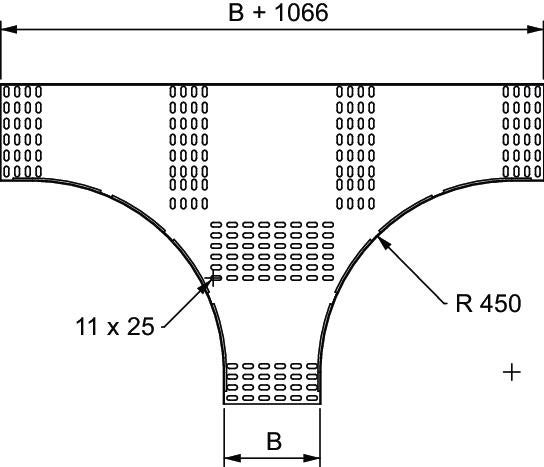

T branch piece, horizontal, for the cable tray types PT38.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Technical data
Dimensions
| Width | 76 mm |
|---|---|
| Height | 38 mm |
| Dimension A | 1,6 mm |
| Dimension B | 76 mm |
Technical data
| Plate thickness | 1,6 mm |
|---|---|
| Dimension | 1150x640x38 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Item no.
PT38 76 HDG
76
Hot-dip galvanised
Steel
6900463
PT38 114 HDG
114
Hot-dip galvanised
Steel
6900467
PT38 152 HDG
152
Hot-dip galvanised
Steel
6900471
PT38 228 HDG
228
Hot-dip galvanised
Steel
6900475
PT38 304 HDG
304
Hot-dip galvanised
Steel
6900479
