T branch piece 60 FS
Type RT 660 FS
|Item no. 7003439
|EAN 4012196214273
Item no. / Type
7003439 / RT 660 FS
Width
600 mm
Surface
Strip galvanised
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description

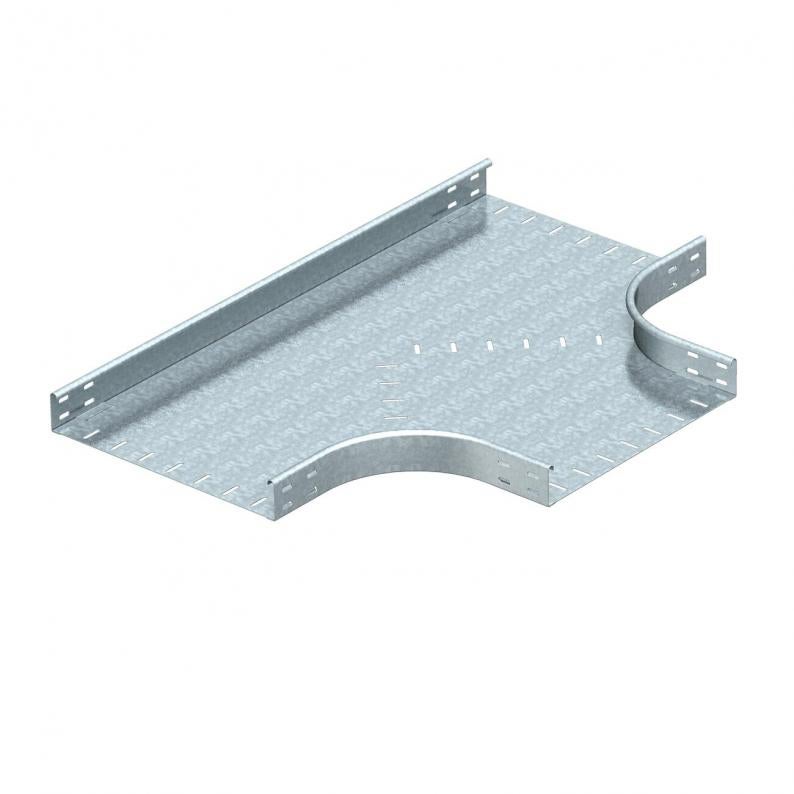

Horizontal T branch piece, for all cable tray types of 60 mm side height.
Fitting in round design. The interior radius of the fitting is 150 mm. All the sides are designed for the same cable tray width.
Fastening materials should be ordered separately.
Technical data

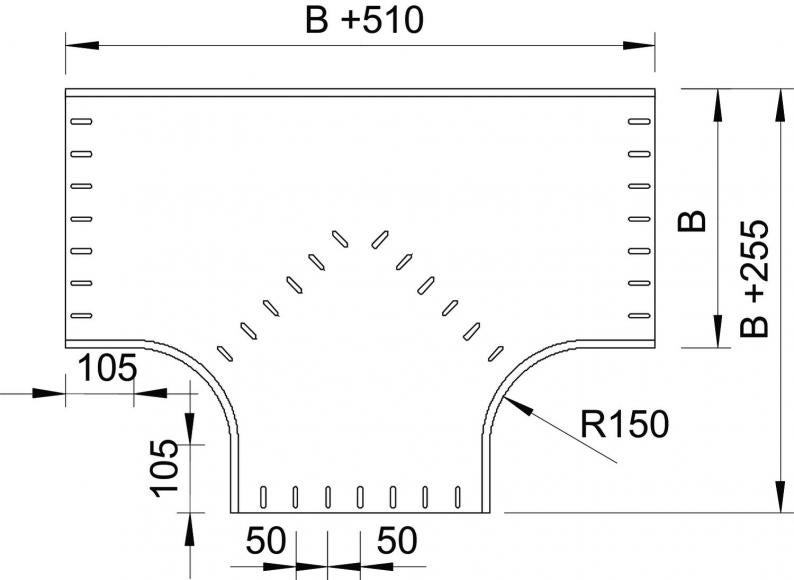

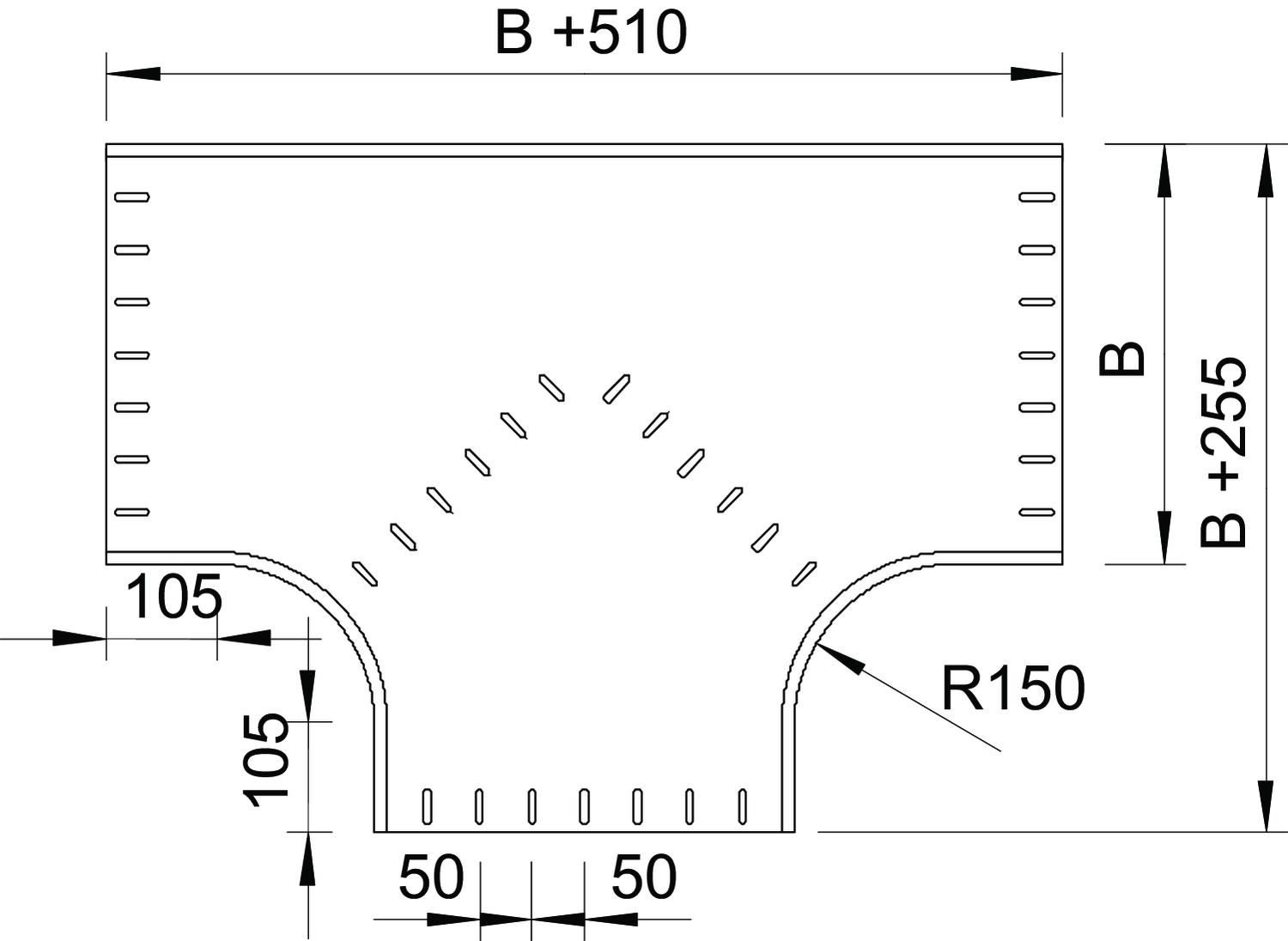

Dimensions
| Width | 600 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 600 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | T piece horizontal |
| Rail thickness | 1,5 mm |
| Dimension | 60x600 |
| Surface | Strip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
