SSP130 cable ladder Nema 20B, 6 m
Type SSP130 200 HDG
|Item no. 6905003
|EAN 4012196074150
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 6 m
6m
m
Description

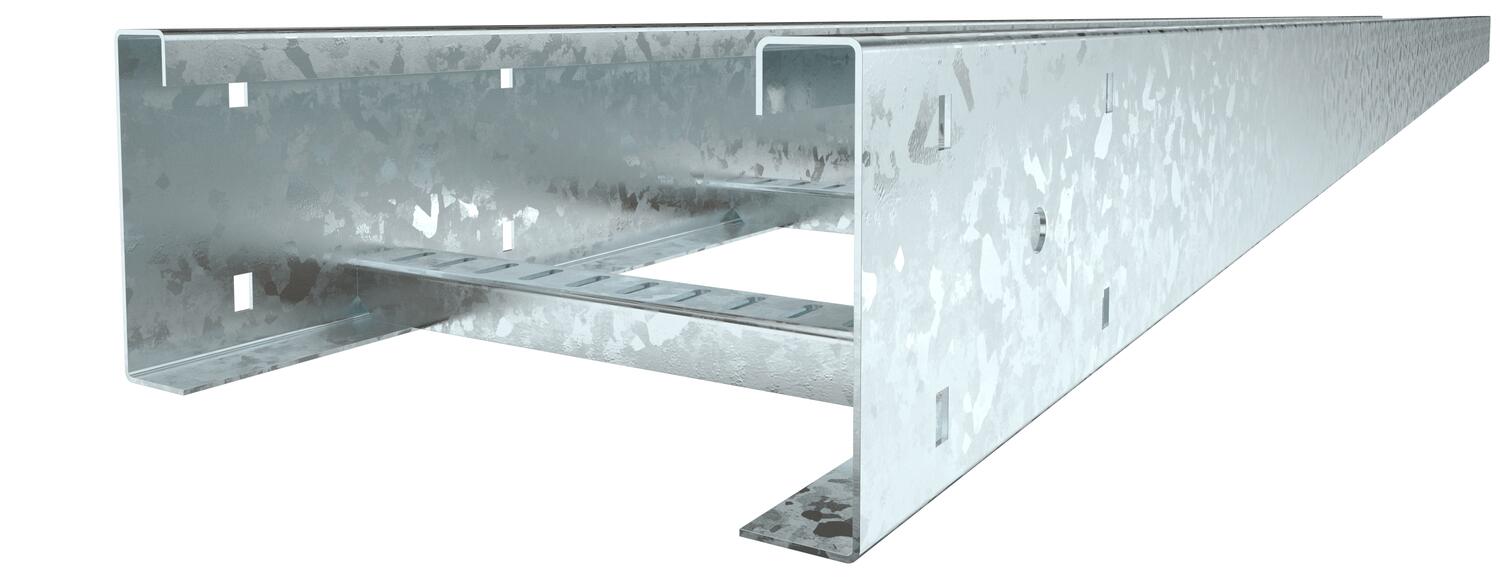

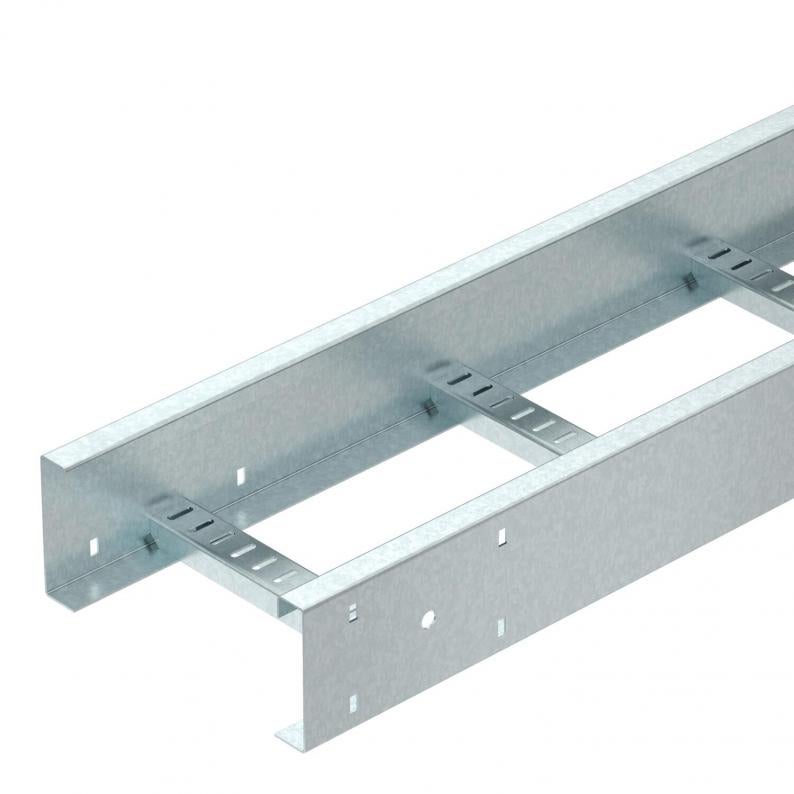

Heavy-duty SSP130 cable ladder system, welded version. The side height
is 130 mm with a supply length of 6000 mm.
is 130 mm with a supply length of 6000 mm.
Technical data
Dimensions
| Length | 6000 mm |
|---|---|
| Width | 200 mm |
| Height | 130 mm |
| Dimension B | 200 mm |
Loads
| Support spacing 3.0 m | 2,2 kN/m |
|---|---|
| Support spacing 6.0 m | 0,5 kN/m |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 1,6 mm |
| Dimension | 6000x200x130 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
SSP130 200 HDG
6000
200
1,6
6905003
SSP130 300 HDG
6000
300
1,6
6905007
SSP130 400 HDG
6000
400
1,6
6905011
SSP130 500 HDG
6000
500
1,6
6905015
SSP130 600 HDG
6000
600
1,6
6905019
SSP130 800 HDG
6000
800
1,6
6905023
SSP130 1000 HDG
6000
1000
1,6
6905027
Width
SSP130 200 HDG
Item no.
6905003
Length
6000
Width
200
Rail thickness
1,6
SSP130 300 HDG
Item no.
6905007
Length
6000
Width
300
Rail thickness
1,6
SSP130 400 HDG
Item no.
6905011
Length
6000
Width
400
Rail thickness
1,6
SSP130 500 HDG
Item no.
6905015
Length
6000
Width
500
Rail thickness
1,6
SSP130 600 HDG
Item no.
6905019
Length
6000
Width
600
Rail thickness
1,6
SSP130 800 HDG
Item no.
6905023
Length
6000
Width
800
Rail thickness
1,6
SSP130 1000 HDG
Item no.
6905027
Length
6000
Width
1000
Rail thickness
1,6
