Single wall and support bracket OL254
Type OL254 200 HDG
|Item no. 6910005
|EAN 4012196080885
Item no. / Type
Length
Width
Smallest selling unit: 1 piece
1piece
piece
Description

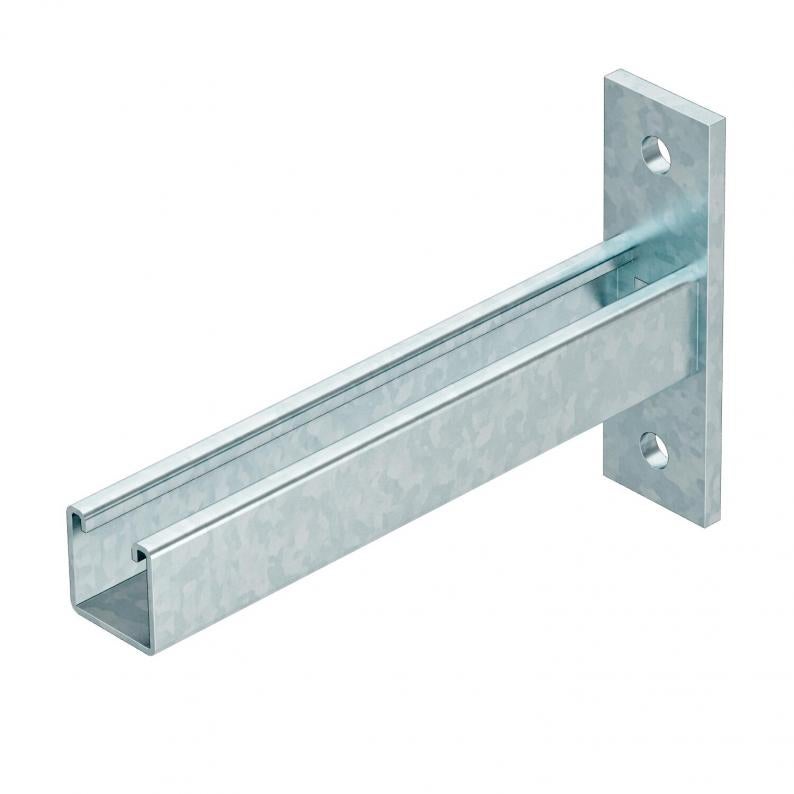

OL254 single cantilever bracket. Designed as a single profile with welded head plate.
All the wall and support brackets for cable ladders and cable trays are 50 mm longer than the width of the appropriate cable ladder or cable tray.
All the wall and support brackets for cable ladders and cable trays are 50 mm longer than the width of the appropriate cable ladder or cable tray.
Technical data
Dimensions
| Length | 200 mm |
|---|---|
| Width | 50 mm |
| Height | 160 mm |
| Dimension A | 200 mm |
Technical data
| Dimension | 210x120x45 |
|---|---|
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Length
Width
Item no.
OL254 150 HDG
150
50
6910003
OL254 200 HDG
200
50
6910005
OL254 250 HDG
258
50
6910007
OL254 350 HDG
350
50
6910009
OL254 450 HDG
450
50
6910011
OL254 550 HDG
550
50
6910013
OL254 650 HDG
650
50
6910015
Length
OL254 150 HDG
Item no.
6910003
Length
150
Width
50
OL254 200 HDG
Item no.
6910005
Length
200
Width
50
OL254 250 HDG
Item no.
6910007
Length
258
Width
50
OL254 350 HDG
Item no.
6910009
Length
350
Width
50
OL254 450 HDG
Item no.
6910011
Length
450
Width
50
OL254 550 HDG
Item no.
6910013
Length
550
Width
50
OL254 650 HDG
Item no.
6910015
Length
650
Width
50
