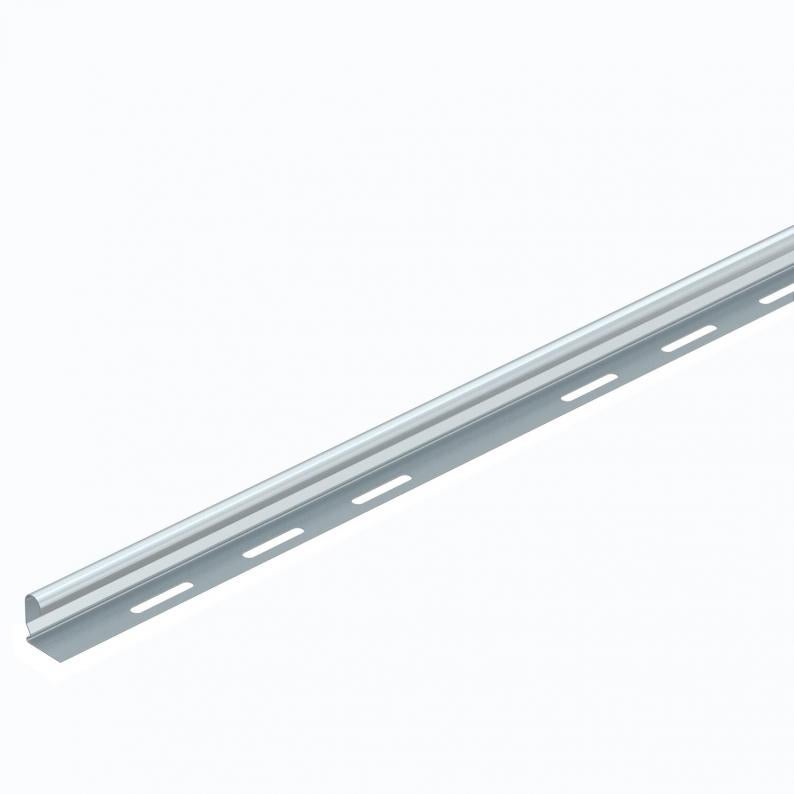

Separating retainer 60 FS
Type TSG 60 FS
|Item no. 6062068
|EAN 4012195694540
Item no. / Type
6062068 / TSG 60 FS
Length
3000 mm
Height
60 mm
Colour
zinc
Smallest selling unit: 3 m
3m
m
Description
Separating retainer for separation of cables of different voltages or functions.
Technical data

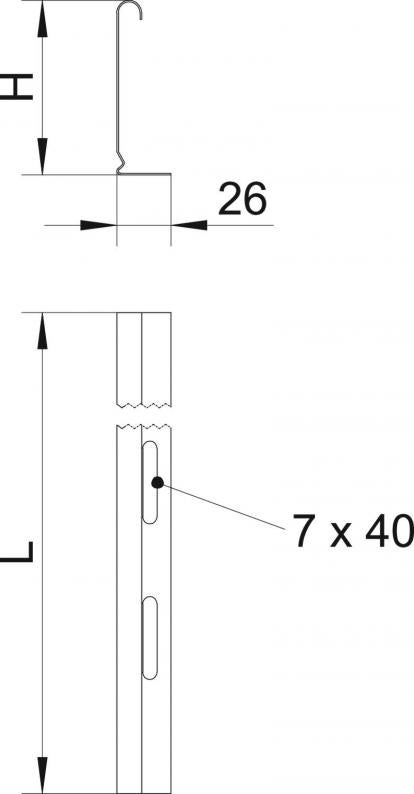

Dimensions
| Length | 3000 mm |
|---|---|
| Height | 60 mm |
| Dimension L | 3000 mm |
| Dimension H | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 0,75 mm |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening perforation (ETIM) | no |
| Version for | L profile |
| Fastening type | Screw-on |
| Dimension | 60x2995 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 1,219 kg CO2e / 1 Meter |
|---|
