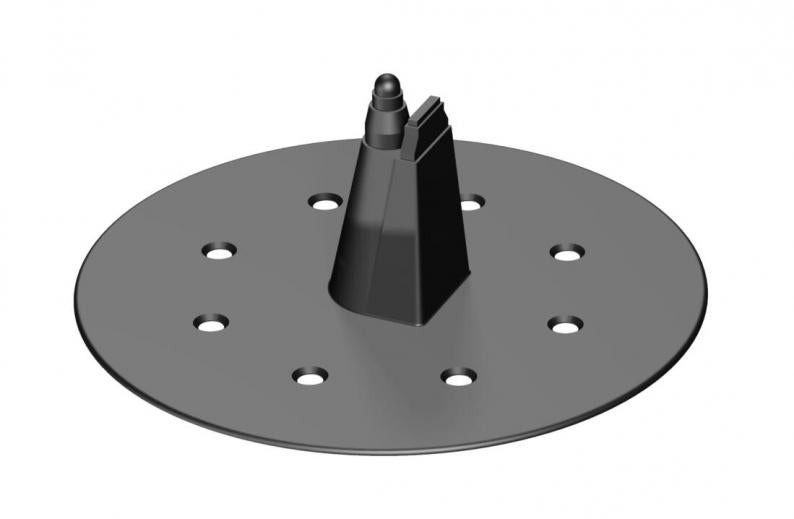

Roof penetration
Type 330 K
|Item no. 5201101
|EAN 4012195401599
Item no. / Type
5201101 / 330 K
Smallest selling unit: 5 piece
5piece
piece
Description
• For round conductors 8–10, air-termination rods 16 mm
• Flat conductors 20 mm/30 mm
• Colour: Black, UV-resistant
• For penetration and sealing of roofs
• Flat conductors 20 mm/30 mm
• Colour: Black, UV-resistant
• For penetration and sealing of roofs
Technical data

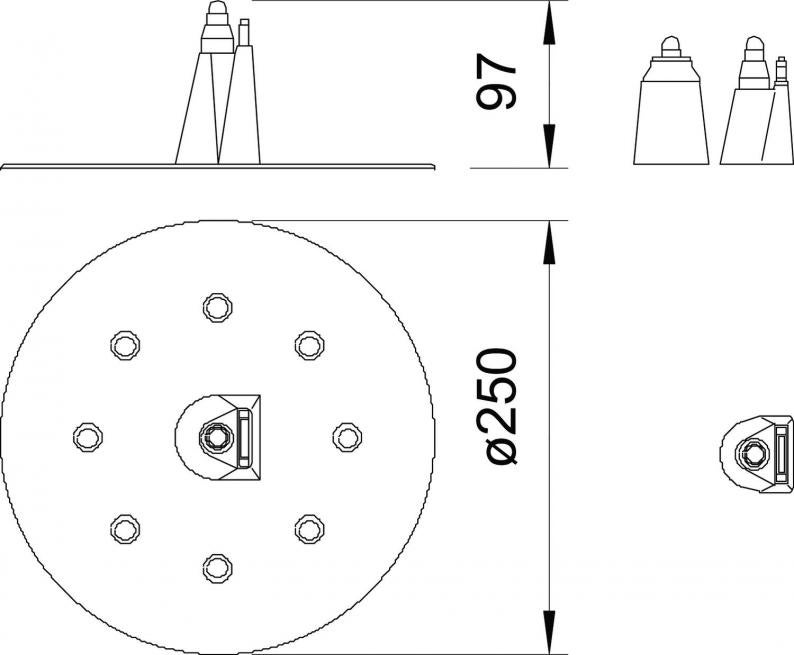

Dimensions
| Length | 250 mm |
|---|---|
| Width | 250 mm |
| Height | 97 mm |
Technical data
| Fit | Rd 8-16/ FL20 u. FL30 mm |
|---|---|
| Dimension | 250x250x100 |
| Material | Polyamide |
| Colour | Black |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7031 kg CO2e / 1 Piece |
|---|
