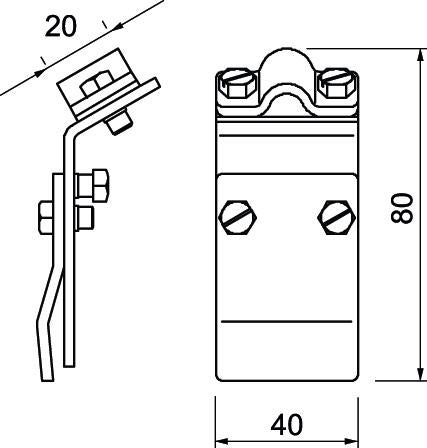

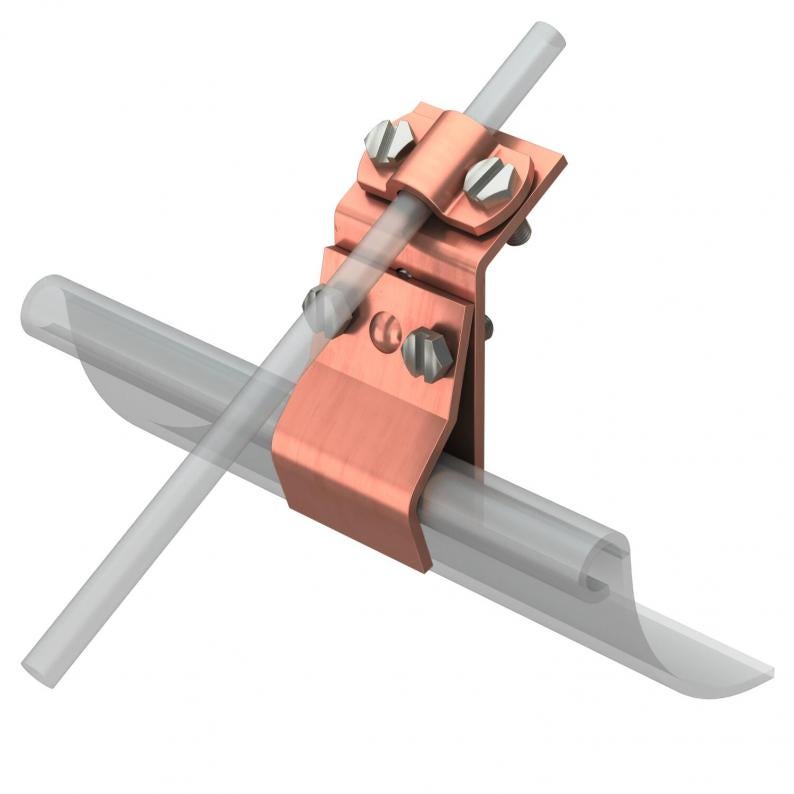

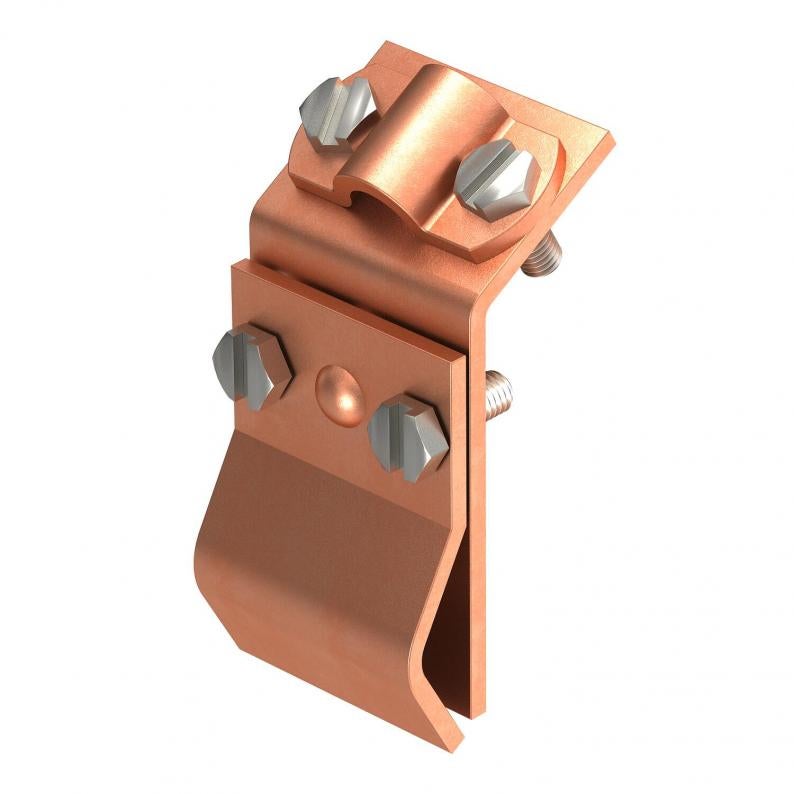

Roof gutter clamp for all bead thicknesses Cu
Type 262 CU
|Item no. 5316154
|EAN 4012195419952
Item no. / Type
5316154 / 262 CU
Fit
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With 4 hexagonal bolts M6 x 16
• Fits all bead thicknesses
• Fits all bead thicknesses
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Roof gutter clamp |
| Fit | Rd 8-10 mm |
| Dimension | 8mm |
| Material | Copper |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7835 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Product images (3)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Fit
Item no.
262 CU
Rd 8-10
5316154
262 CU
Item no.
5316154
Fit
Rd 8-10
