Roof cable holder for ridge tiles with M8 threaded bolts
Type 132 GB-M8
|Item no. 5202568
|EAN 4012195894124
Item no. / Type
5202568 / 132 GB-M8
Mounting height
20 mm
Smallest selling unit: 20 piece
20piece
piece
Description

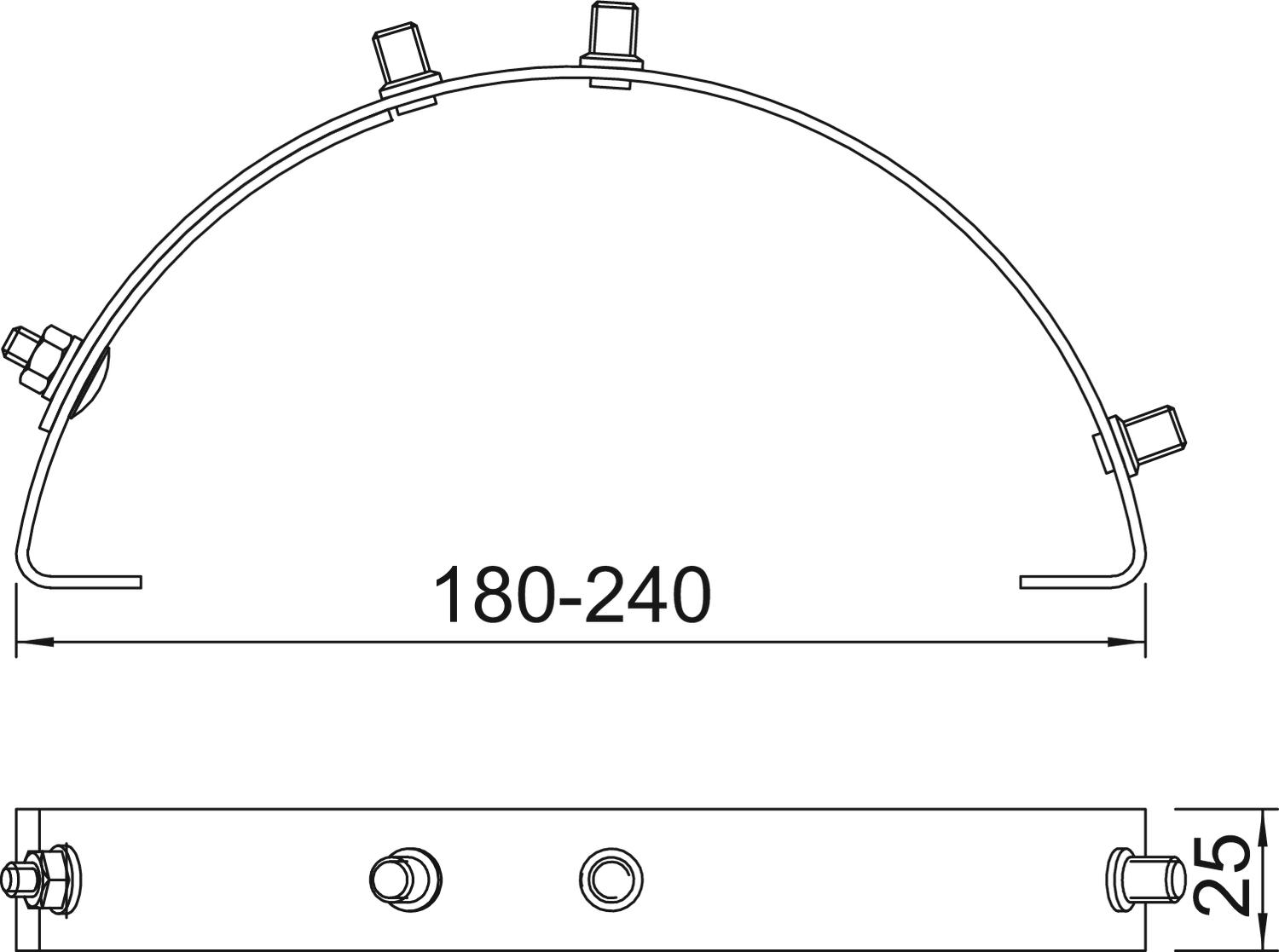

• Adjustable from 180–240 mm
• With conductor 177/20, polyamide, grey
• With 3 M8 threaded nipples for positioning the holder
• With conductor 177/20, polyamide, grey
• With 3 M8 threaded nipples for positioning the holder
Technical data
Technical data
| Mounting height | 20 mm |
|---|---|
| Application | Ridge |
| Mounting type | Tensionable |
| Dimension | M8 |
| Surface | Hot-dip galvanised |
| Material | Steel |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4358 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Mounting height
Item no.
132 GB-M8
20
5202568
132 GB-M8
Item no.
5202568
Mounting height
20
