Rod holder, 16 mm, with square pin
Type 112 DIN-100
|Item no. 5410096
|EAN 4012195428893
Item no. / Type
5410096 / 112 DIN-100
Fit
Rd 16 mm
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
piece
Description
• For air-termination and earth entry rods
• Crossbar with 2 hexagonal bolts M6 x 16 (VA)
• With square pin
• Crossbar with 2 hexagonal bolts M6 x 16 (VA)
• With square pin
Technical data

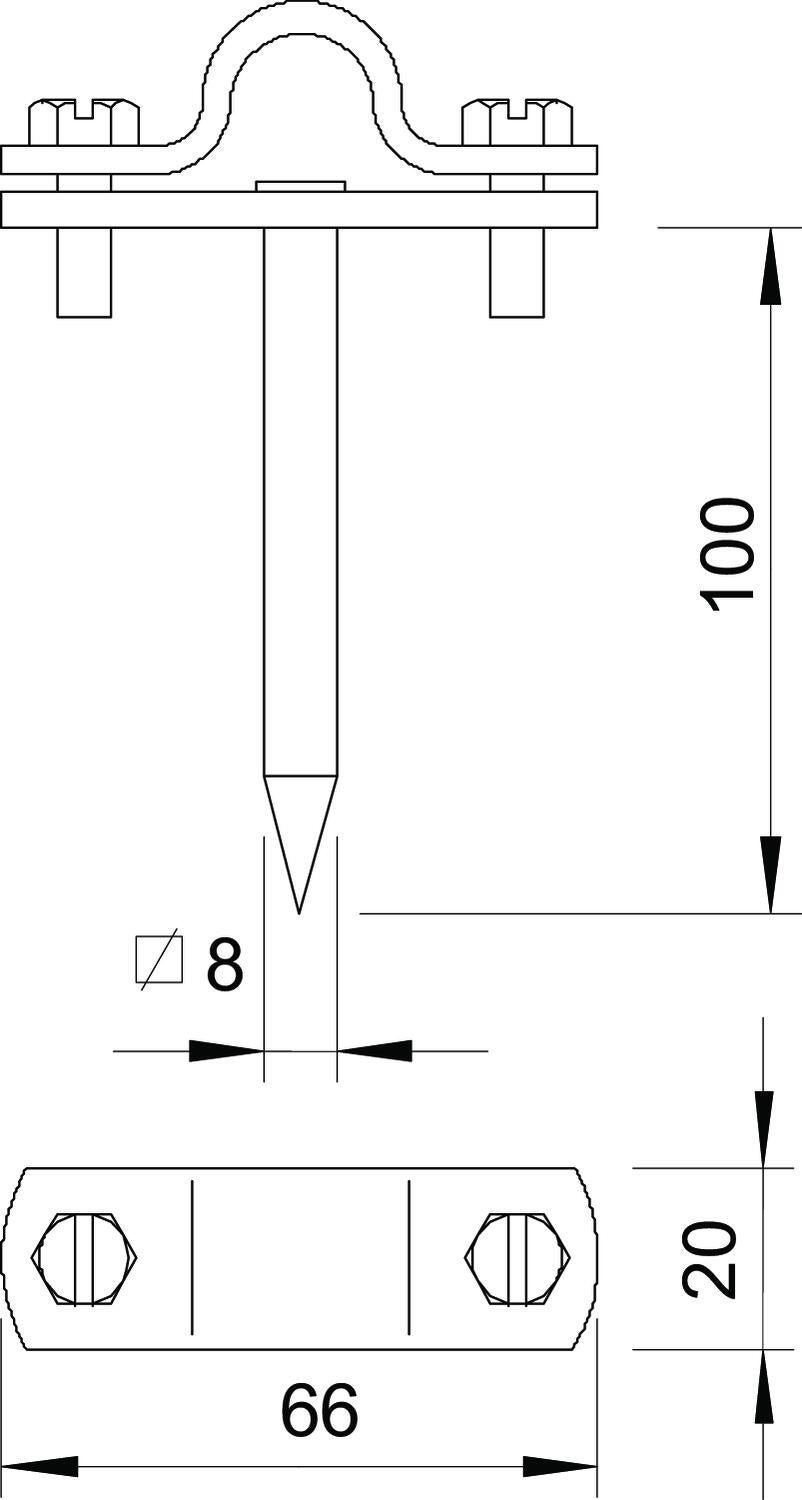

Dimensions
| Length | 100 mm |
|---|---|
| Dimension H | 100 mm |
Technical data
| Material of the crossbar | Steel, hot galvanised |
|---|---|
| Material of the base | Steel, hot galvanised |
| Rod fastening type | With screw clip |
| Holder fastening type | With impact pin |
| Fit | Rd 16 mm |
| Dimension | 16mm |
| Surface | Hot galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
