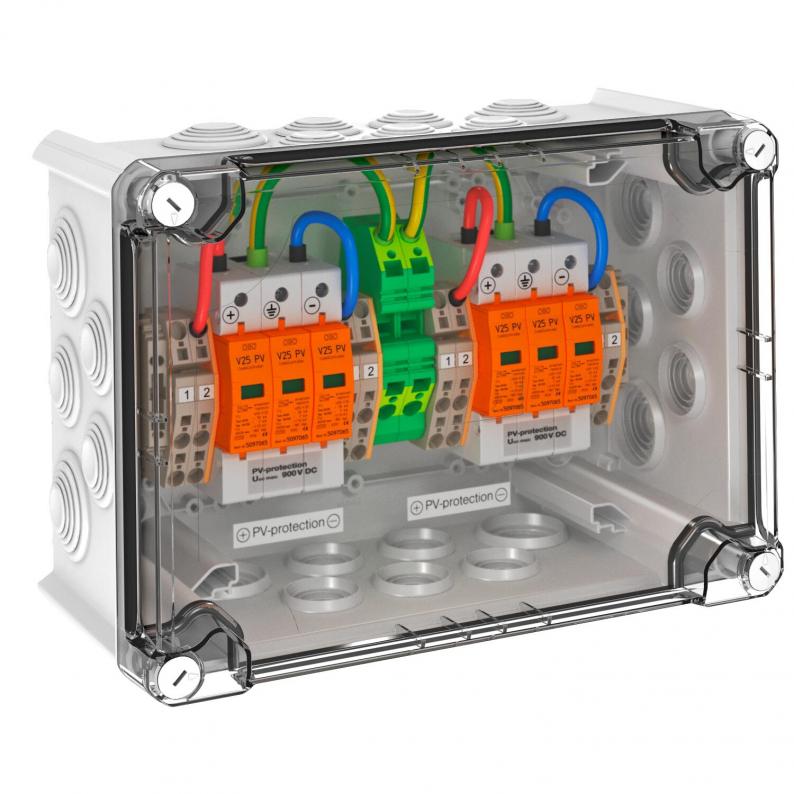

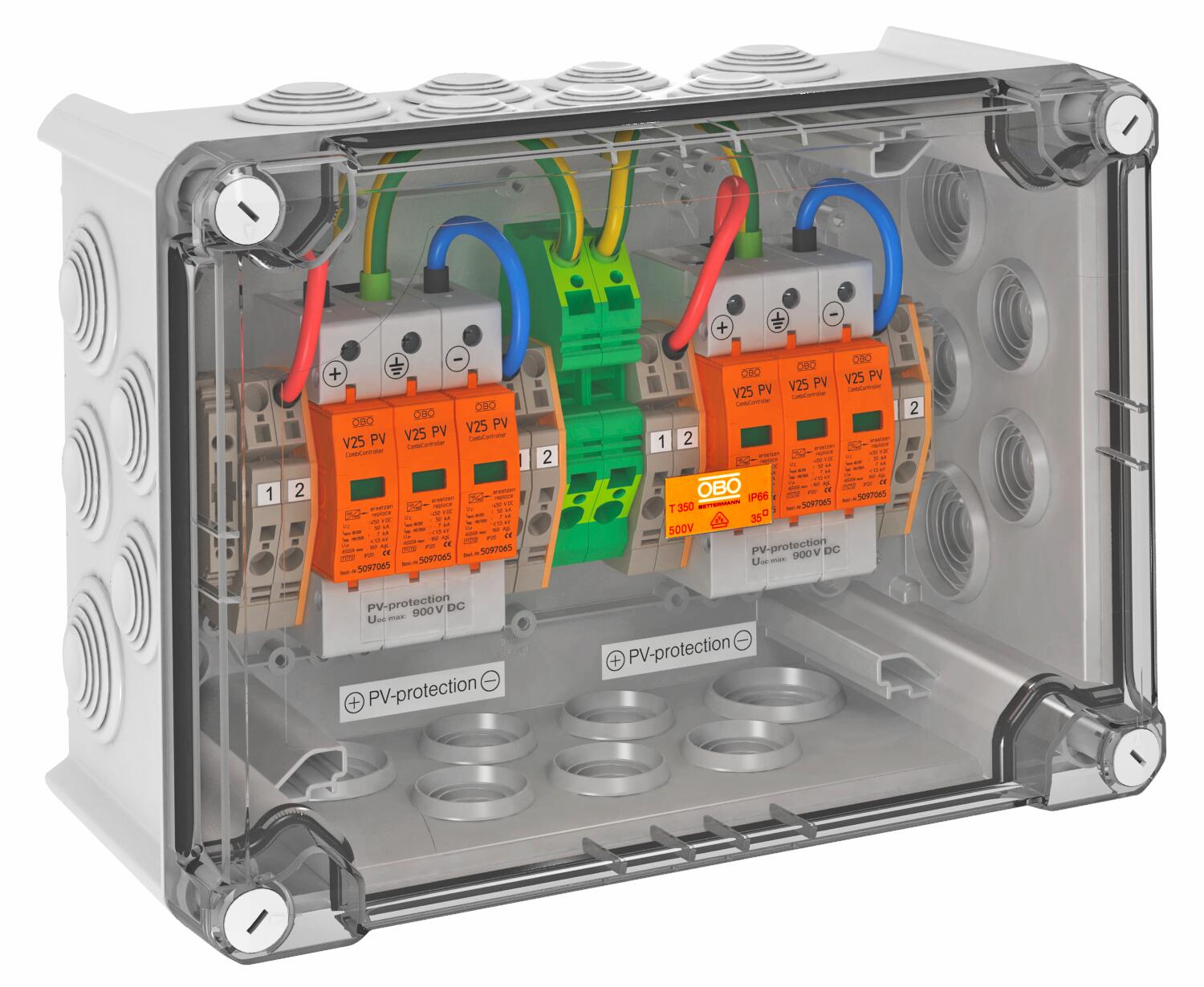

PV system solution, type 1+2, for inverter with 2 MPP trackers, 900 V DC
Type VG-BCPV900K 22
Item no. 5088566
EAN 4012196190263
Item no. / Type
5088566 / VG-BCPV900K 22
Protection rating
IP66
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
System solution for photovoltaic inverter with 2 separate MPP trackers
• Varistor arrester, connectable with disconnecting device in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 4.0 kV (Uoc max = 1,000 V DC with V20-C/0-500PV)
• Low DC protection level: < 3.0 kV (Uoc max = 900 V DC with V25-B+C/0-450PV)
• Per protection device, there are 4 terminals up to 6 mm² pre-mounted in the housing, up to 30 A DC per terminal
• Pre-mounted in polycarbonate housing (IP66), UV-resistant for the use outside, including cable gland kit
For DC protection of the inverter in photovoltaic systems.
If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!
• Varistor arrester, connectable with disconnecting device in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 4.0 kV (Uoc max = 1,000 V DC with V20-C/0-500PV)
• Low DC protection level: < 3.0 kV (Uoc max = 900 V DC with V25-B+C/0-450PV)
• Per protection device, there are 4 terminals up to 6 mm² pre-mounted in the housing, up to 30 A DC per terminal
• Pre-mounted in polycarbonate housing (IP66), UV-resistant for the use outside, including cable gland kit
For DC protection of the inverter in photovoltaic systems.
If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!
Technical data
Technical data
| Network form | DC |
|---|---|
| Blow-out | yes |
| Signalling on device | Visual |
| Protection rating | IP66 |
| Remote signalling | no |
| Test class, type 2 | yes |
| Lightning surge current (10/350 μs) | 7 kA |
| Maximum continuous voltage DC | 900 V |
| Nominal discharge current (8/20 µs) | 30 kA |
| Installation type | Pre-mounted in the housing |
| Max. mains-side overcurrent protection | 160 |
| Version for | For two MPP and with terminal connection |
| DC network form | yes |
| IT network form | no |
| TN network form | no |
| TN-C network form | no |
| TN-C-S network form | no |
| TN-S network form | no |
| TT network form | no |
| Other network form | no |
| ROHS-conformant | yes |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| SPD to IEC 61643-11 | Class II |
| SPD to EN 61643-11 | Type 1+2 |
| Lightning protection zone LPZ | 0→2 |
| Maximum discharge current (8/20 μs) | 50 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 160 A |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Dimension | 900V DC |
| Colour | Light grey; RAL 7035 |
| Product series | PV-ÜSS |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 30 kA |
|---|---|
| Conductor cross-section, rigid (single-wire/multiwire), min. | 0,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 10 mm² |
Environmental Data
6,2524 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 6,2524 kg CO₂e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 6,2524 kg CO₂e |
| Determination date of CO2 value | 2025-04-02T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
