PV housing for inverter with 3 MPP trackers, type 1+2, 900 V DC
Type VG-BC DCPH900-31
Item no. 5088629
EAN 4012195872658
Item no. / Type
5088629 / VG-BC DCPH900-31
Protection rating
IP65
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description

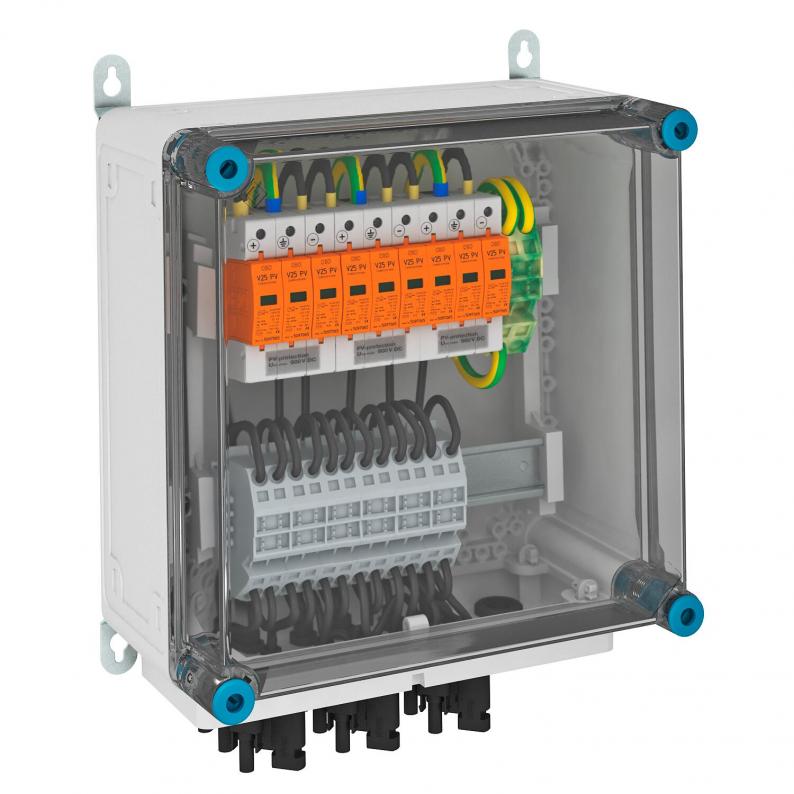

System solution with MC4 connector for photovoltaic inverter with 3 separate MPP trackers
• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-450PV)
• Two PV string inputs (MC4 plug connector) at one MPP inverter input, up to 30 A DC per terminal
• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside
For DC protection of the inverter of photovoltaic systems.
If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!
• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-450PV)
• Two PV string inputs (MC4 plug connector) at one MPP inverter input, up to 30 A DC per terminal
• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside
For DC protection of the inverter of photovoltaic systems.
If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!

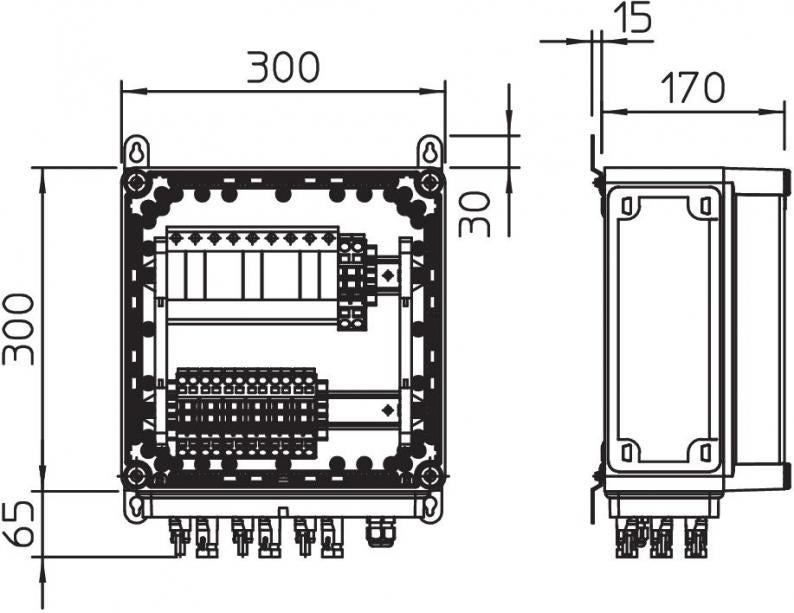

Technical data
Technical data
| Network form | DC |
|---|---|
| Signalling on device | Visual |
| Protection rating | IP65 |
| Remote signalling | no |
| Test class, type 2 | yes |
| Lightning surge current (10/350 μs) | 7 kA |
| Maximum continuous voltage DC | 900 V |
| Nominal discharge current (8/20 µs) | 30 kA |
| Installation type | Pre-mounted in the housing |
| Max. mains-side overcurrent protection | 160 |
| Version for | For three MPP and with MC4 connection |
| DC network form | yes |
| IT network form | no |
| TN network form | no |
| TN-C network form | no |
| TN-C-S network form | no |
| TN-S network form | no |
| TT network form | no |
| Other network form | no |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| SPD to IEC 61643-11 | Class I+II |
| SPD to EN 61643-11 | Type 1+2 |
| Lightning protection zone LPZ | 0→2 |
| Maximum discharge current (8/20 μs) | 50 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 160 A |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Dimension | 900V DC |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 30 kA |
|---|
Environmental Data
3,1379 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,1379 kg CO₂e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 3,1379 kg CO₂e |
| Determination date of CO2 value | 2025-04-02T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
