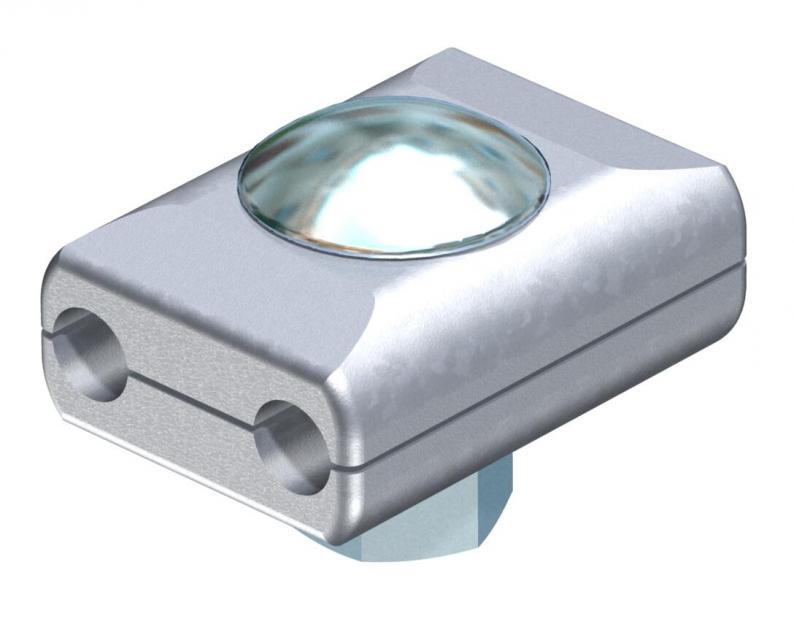

Parallel connector Rd 8 mm, M10 x 30
Type 260 8
|Item no. 5315700
|EAN 4012195419839
Item no. / Type
5315700 / 260 8
Fit
Rd 8 mm
Smallest selling unit: 50 piece
50piece
piece
Description
• With flat, round bolt M10 x 30 and hexagonal nut, hot-dip galvanised steel
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Parallel connector |
| Suitable for connection | Round conductor Rd 8 / Rd 8 |
| Lightning current carrying capacity | H/100 kA |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 1, max. | 8 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Round conductor diameter, conductor 2, max. | 8 mm |
| Fit | Rd 8 mm |

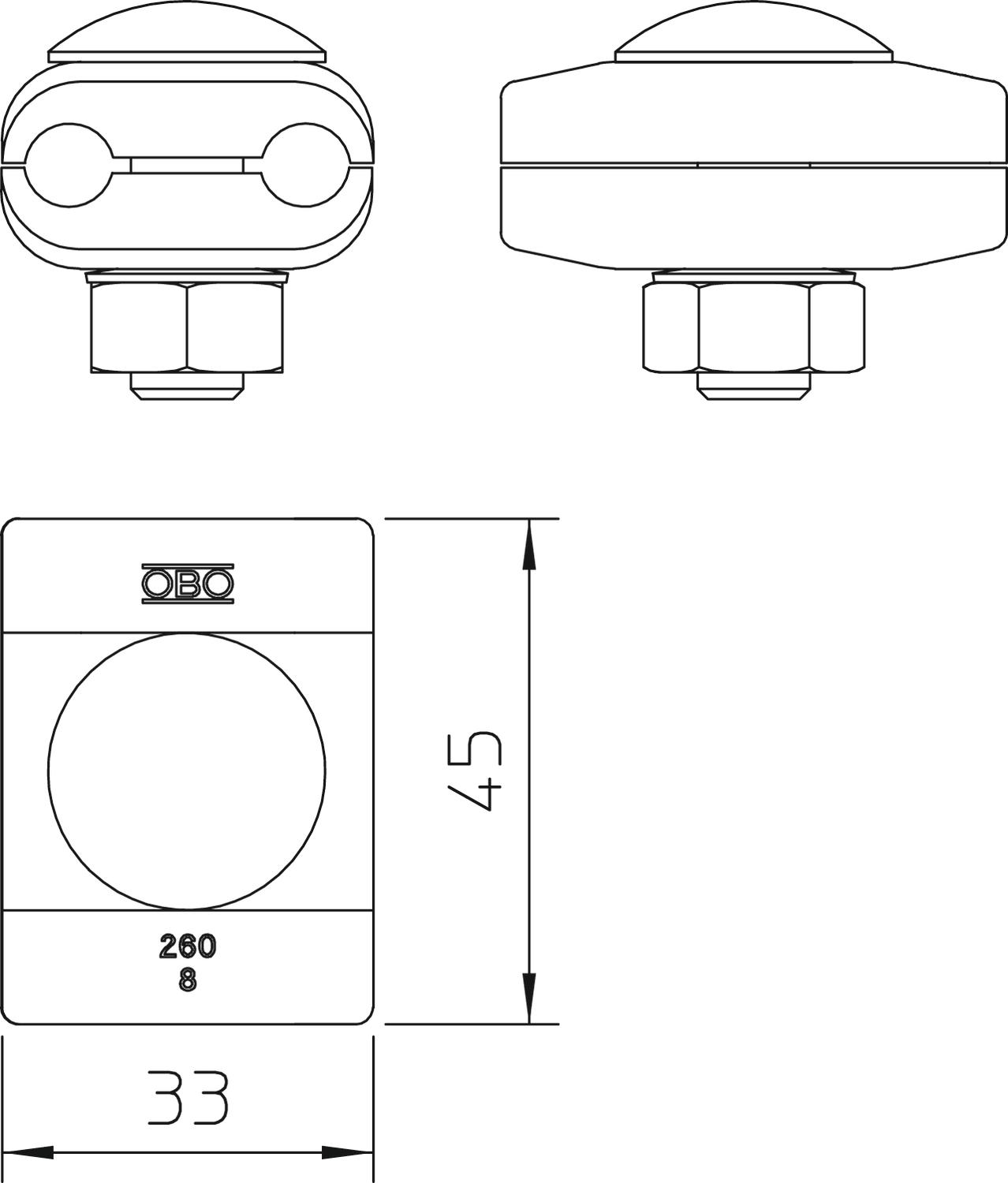

| Dimension | 8x8mm |
| Surface | Electrogalvanised |
| Material | Die-cast zinc |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5314 kg CO2e / 1 Piece |
|---|
