Mesh cable tray, Gridspan GS50
Type GS50 50 HDG
|Item no. 6901153
|EAN 4012196063789
Item no. / Type
Length
Width
Height
Wire diameter
Smallest selling unit: 3 m
3m
m
Description

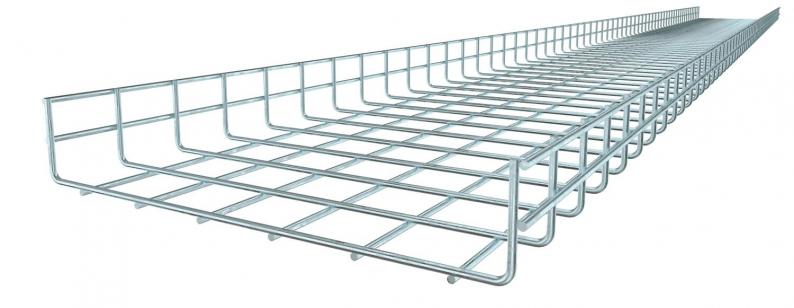

Mesh cable tray made of spot-welded steel wire of side height 50 mm.
Apperture size = 50 x 75 mm.
Apperture size = 50 x 75 mm.
Technical data

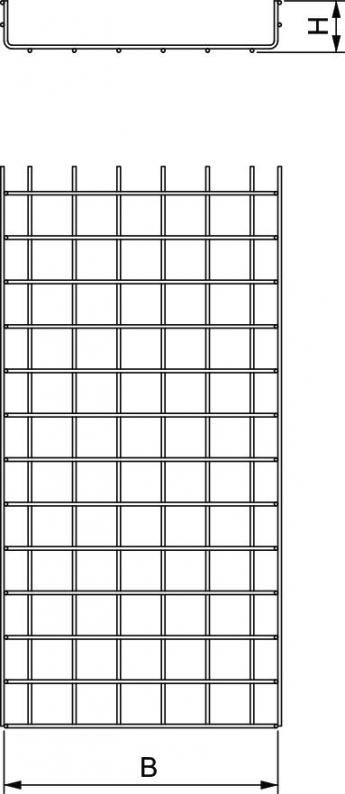

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 50 mm |
Technical data
| Wide-span version | no |
|---|---|
| Rustproof steel, pickled | no |
| Wire diameter | 4 mm |
| Dimension | 3000x70x60 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 1.0 m | 1,4 kN/m |
|---|---|
| Support spacing 1.5 m | 0,7 kN/m |
| Support spacing 2.0 m | 0,25 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (7)
Declarations (1)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Wire diameter
Item no.
GS50 50 HDG
3000
50
50
4
6901153
GS50 100 HDG
3000
100
50
4
6901157
GS50 150 HDG
3000
150
50
4
6901161
GS50 200 HDG
3000
200
50
4
6901165
GS50 300 HDG
3000
300
50
4
6901169
GS50 400 HDG
3000
400
50
4
6901173
GS50 500 HDG
3000
500
50
4
6901177
GS50 600 HDG
3000
600
50
4
6901181
Width
GS50 50 HDG
Item no.
6901153
Length
3000
Width
50
Height
50
Wire diameter
4
GS50 100 HDG
Item no.
6901157
Length
3000
Width
100
Height
50
Wire diameter
4
GS50 150 HDG
Item no.
6901161
Length
3000
Width
150
Height
50
Wire diameter
4
GS50 200 HDG
Item no.
6901165
Length
3000
Width
200
Height
50
Wire diameter
4
GS50 300 HDG
Item no.
6901169
Length
3000
Width
300
Height
50
Wire diameter
4
GS50 400 HDG
Item no.
6901173
Length
3000
Width
400
Height
50
Wire diameter
4
GS50 500 HDG
Item no.
6901177
Length
3000
Width
500
Height
50
Wire diameter
4
GS50 600 HDG
Item no.
6901181
Length
3000
Width
600
Height
50
Wire diameter
4
