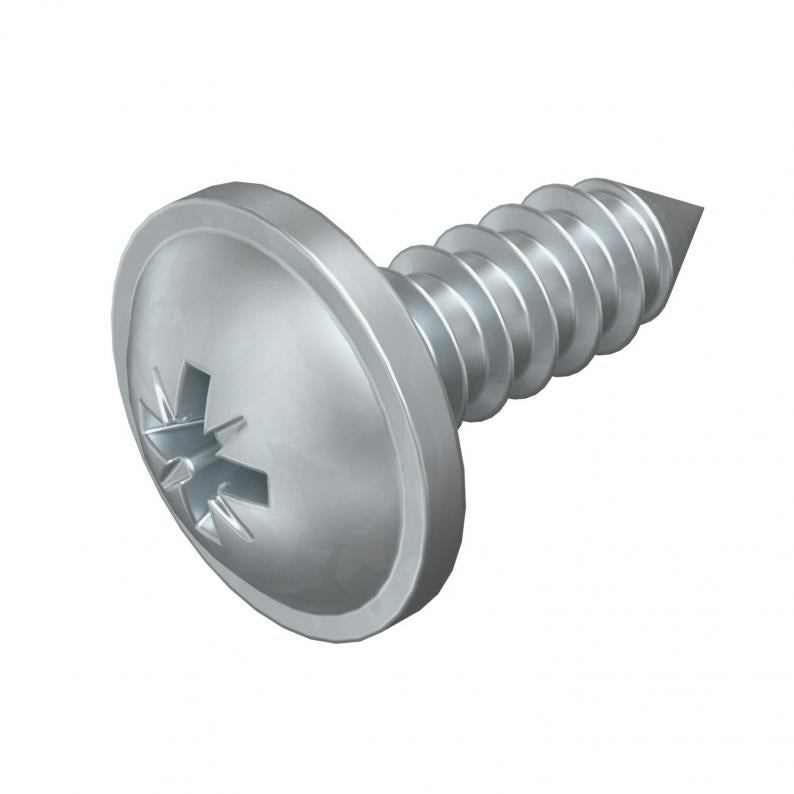

Lid connector PT38/PT76 FT
Type No10 Pozi Drive
|Item no. 6901132
|EAN 4012196063758
Item no. / Type
6901132 / No10 Pozi Drive
Smallest selling unit: 1 piece
1piece
piece
Description
Accessories for cover connection of types PT38 and PT76.
Technical data

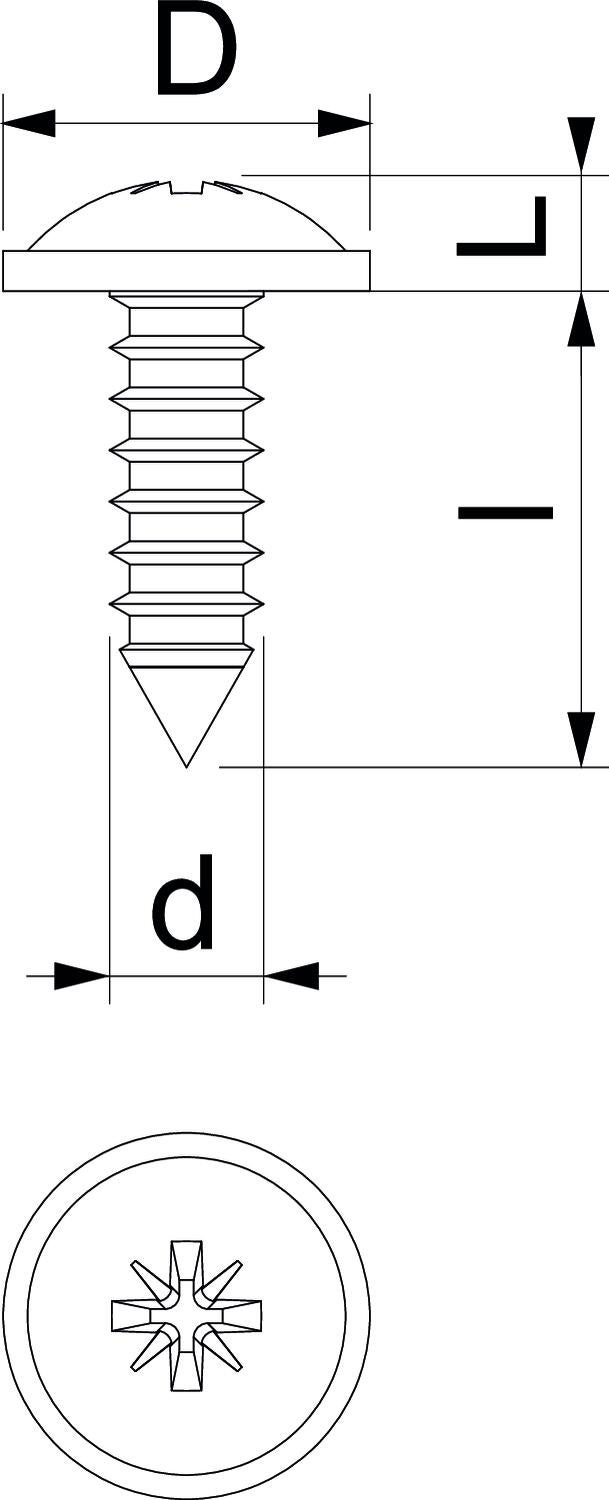

Dimensions
| Length | 16 mm |
|---|---|
| Width | 10 mm |
| Dimension L | 3 mm |
| Dimension d | 4,2 mm |
| Dimension l | 13 mm |
| Dimension d min. | 10 mm |
| Dimension d max. | 10 mm |
| Dimension D | 10 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Impact-resistant | no |
| Halogen-free | no |
| Fibre-glass reinforced | no |
| Head shape | Rounded head |
| Screw system | Pozidrive PZ |
| With washer | no |
| Dimension | 4,2x13 |
| With nut | no |
| Thread diameter ST | 4,2 |
| Thread length | 13 mm |
| Head diameter | 10 mm |
| Surface | Electrogalvanised |
| Material | Steel |
