Lid, 90° vertical bend, falling, OL

Lid, 90° vertical bend, falling, OL

Type OLCover 150 HDG
|
Item no. 6903257
|
EAN 4012196070206
Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

piece

Description

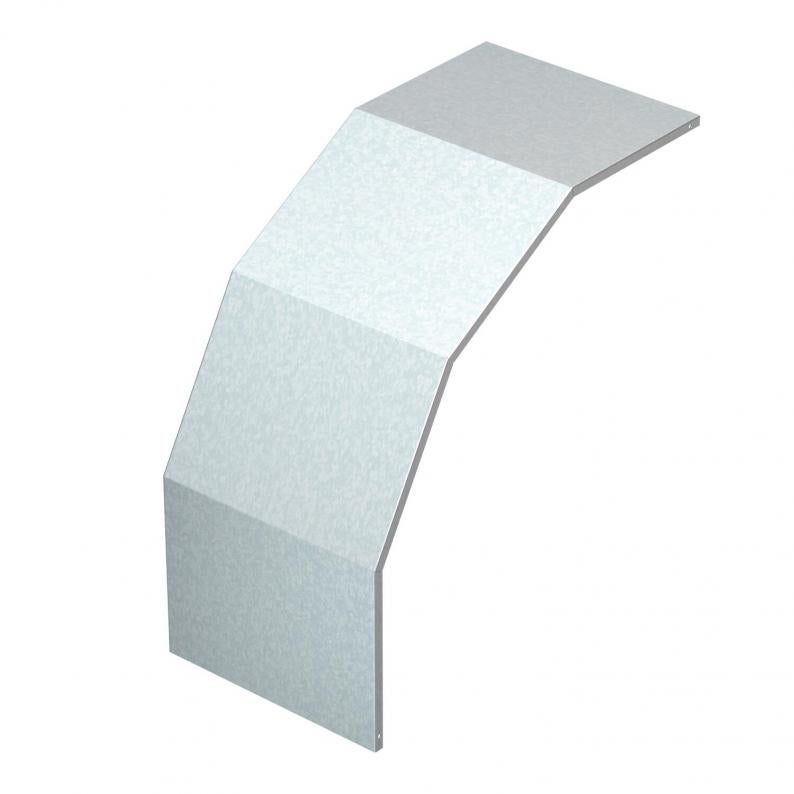

Cover, 90° vertical bend, falling, for OL cable ladder system.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

Dimensions

Width150 mm

Technical data

Plate thickness1,6 mm
Dimension624x624x190
SurfaceHot-dip galvanised
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
Plate thickness
OLCover 150 HDG
Item no.
6903257
Width
150
Plate thickness
1,6
OLCover 200 HDG
Item no.
6903261
Width
200
Plate thickness
1,6
OLCover 300 HDG
Item no.
6903265
Width
300
Plate thickness
1,6
OLCover 400 HDG
Item no.
6903269
Width
400
Plate thickness
1,6
OLCover 500 HDG
Item no.
6903273
Width
500
Plate thickness
2
OLCover 600 HDG
Item no.
6903277
Width
600
Plate thickness
2
OLCover 800 HDG
Item no.
6903281
Width
800
Plate thickness
2
OLCover 1000 HDG
Item no.
6903285
Width
1000
Plate thickness
2
