Intersection PT76 FT
Type PT76 76 HDG
Item no. 6900803
EAN 4012196062737
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

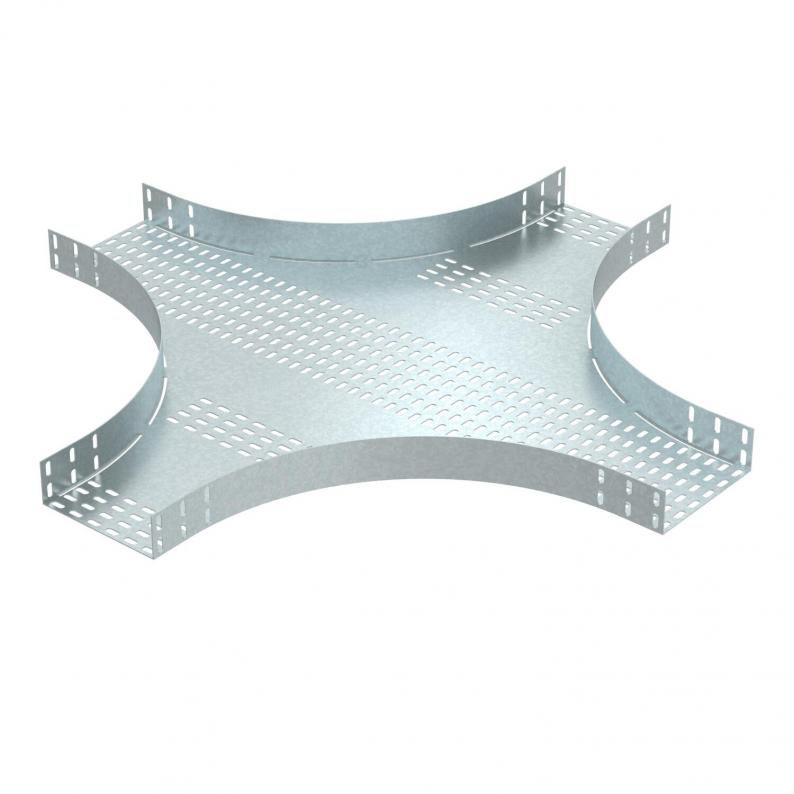

Cross-over, horizontal, for the cable tray types PT76.

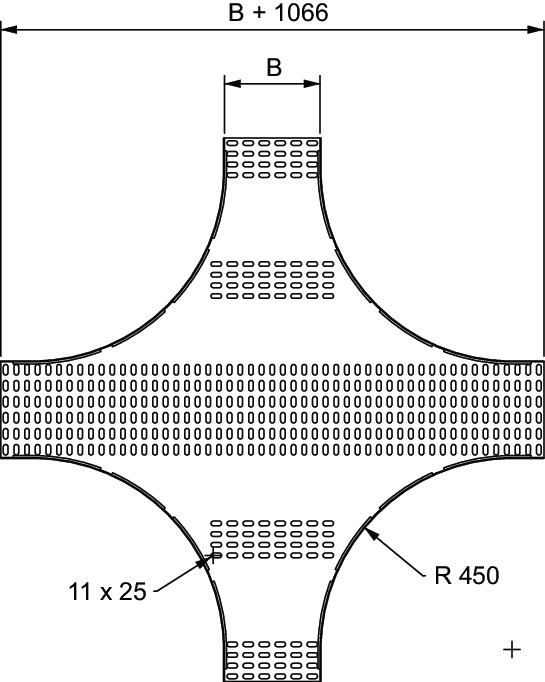

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Technical data
Dimensions
| Width | 76 mm |
|---|---|
| Height | 76 mm |
Technical data
| Plate thickness | 1,6 mm |
|---|---|
| Dimension | 1150x1150x76 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Item no.
PT76 76 HDG
76
6900803
PT76 114 HDG
114
6900807
PT76 152 HDG
152
6900811
PT76 228 HDG
228
6900815
PT76 304 HDG
304
6900819
PT76 457 HDG
457
6900823
PT76 609 HDG
609
6900827
Width
PT76 76 HDG
Item no.
6900803
Width
76
PT76 114 HDG
Item no.
6900807
Width
114
PT76 152 HDG
Item no.
6900811
Width
152
PT76 228 HDG
Item no.
6900815
Width
228
PT76 304 HDG
Item no.
6900819
Width
304
PT76 457 HDG
Item no.
6900823
Width
457
PT76 609 HDG
Item no.
6900827
Width
609
