Intersection PT38 FT
Type PT38 76 HDG
Item no. 6900503
EAN 4012196061891
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

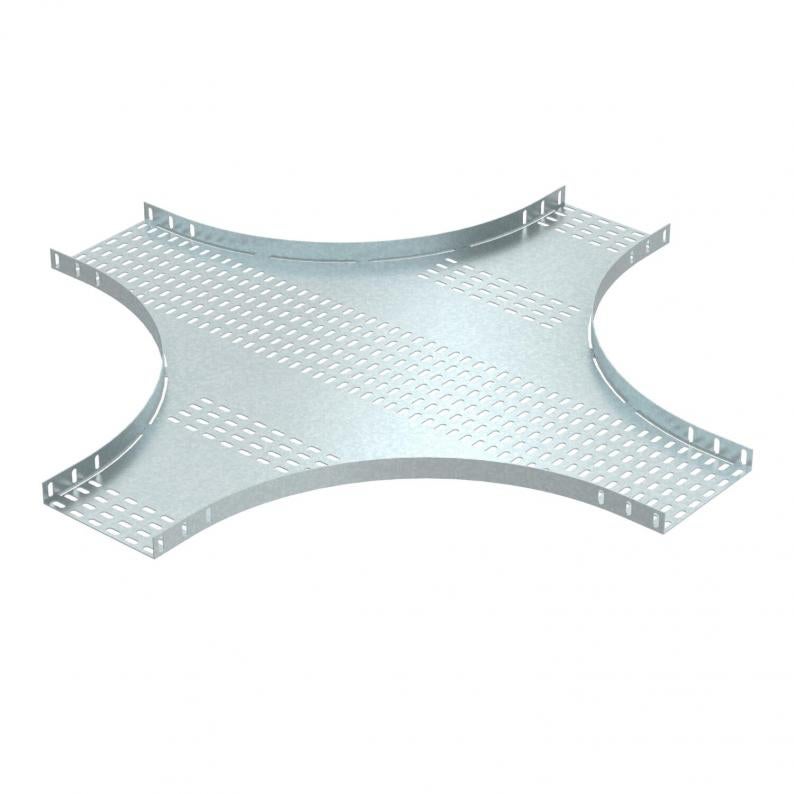

Cross-over, horizontal, for the cable tray types PT38.

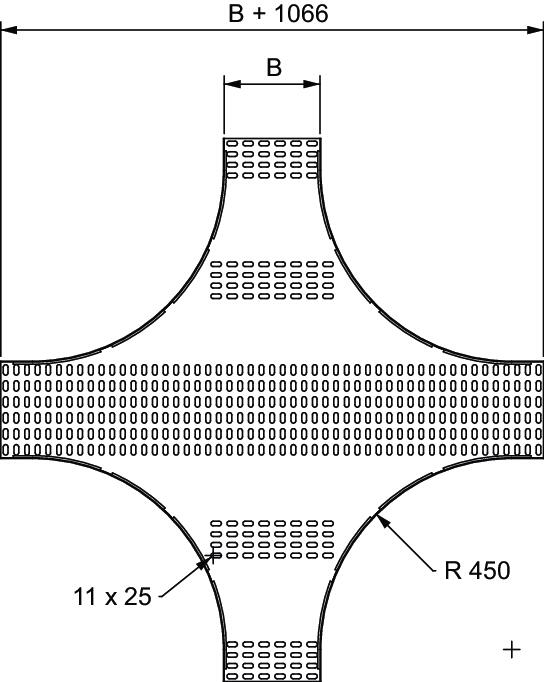

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Technical data
Dimensions
| Width | 76 mm |
|---|---|
| Height | 38 mm |
Technical data
| Plate thickness | 1,6 mm |
|---|---|
| Dimension | 1140x1140x38 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Item no.
PT38 76 HDG
76
6900503
PT38 114 HDG
114
6900507
PT38 152 HDG
152
6900511
PT38 228 HDG
228
6900515
PT38 304 HDG
304
6900519
