Earth rod for standard applications, hot galvanised, 20 mm
Type 219 20 ST FT
|Item no. 5000742
|EAN 4012195018049
Item no. / Type
5000742 / 219 20 ST FT
Length
1000 mm
External diameter
20 mm
Material
Steel
Smallest selling unit: 5 piece
5piece
piece
Description
• High corrosion resistance
• Zinc support approx. 130 µm
• With peg and bore for linking together
• Round pegs with two knurls
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 7.9 kA
• Zinc support approx. 130 µm
• With peg and bore for linking together
• Round pegs with two knurls
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 7.9 kA
Technical data

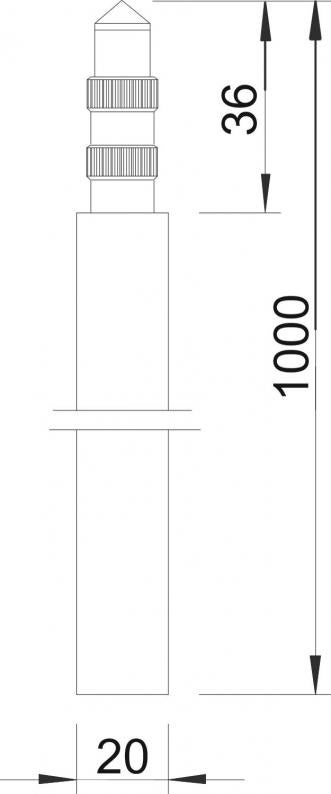

Dimensions
| Length | 1000 mm |
|---|
Technical data
| Profile type | Round D=20 mm |
|---|---|
| External diameter | 20 mm |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 7,9 kA |
| Lightning current carrying capacity | H/100 kA |
| Dimension | 1,0m |
| Surface | Hot-dip galvanised |
| Material | Steel |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 7,1416 kg CO2e / 1 Piece |
|---|
