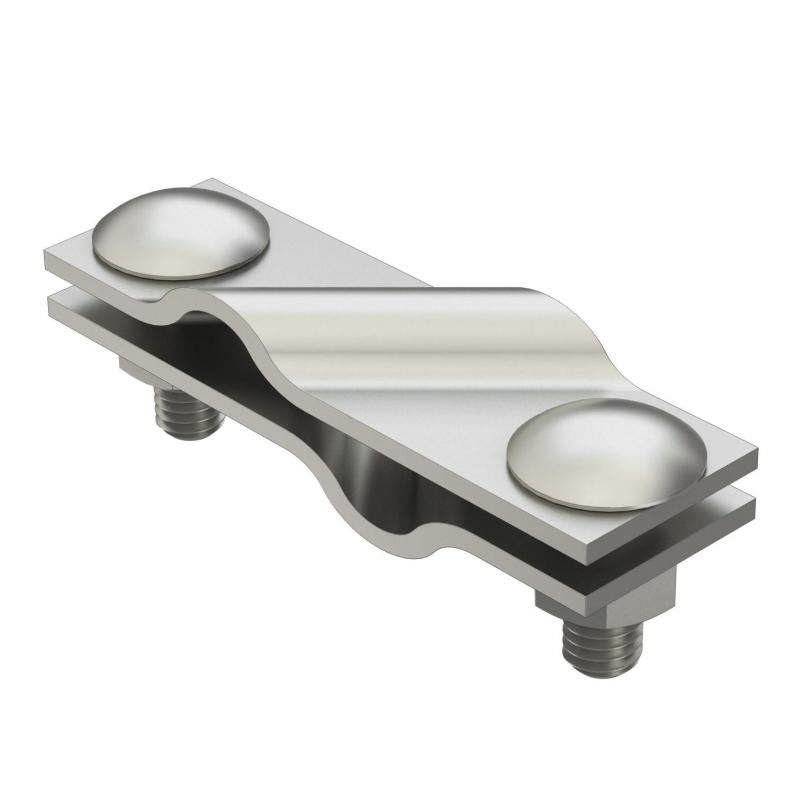

Diagonal connector for A4 round conductor
Type 2760 8-10 V4A
|Item no. 5313013
|EAN 4012196466290
Item no. / Type
5313013 / 2760 8-10 V4A
Fit
Rd 8-10 mm
Smallest selling unit: 25 piece
25piece
piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• To connect round conductors 8‒10 mm
• Mounted with 2 truss-head bolts M10 x 30 and 2 hexagonal bolts M10
• To connect round conductors 8‒10 mm
• Mounted with 2 truss-head bolts M10 x 30 and 2 hexagonal bolts M10
Technical data

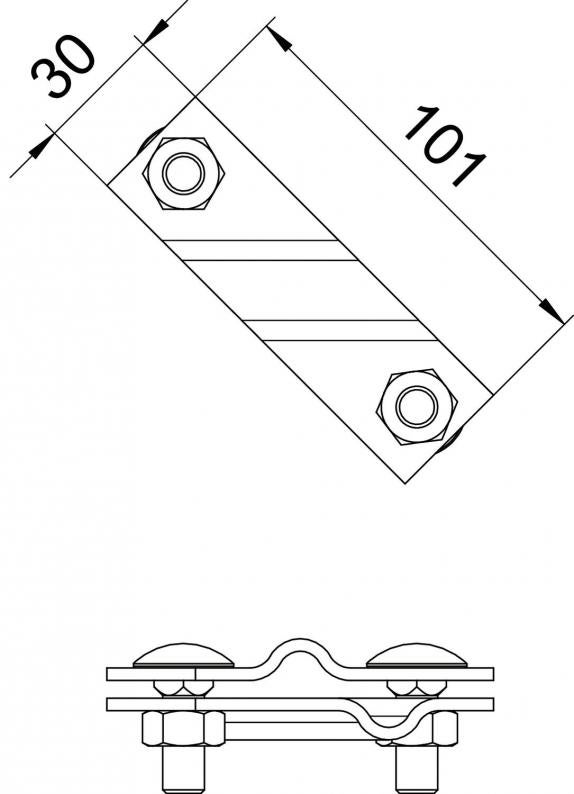

Dimensions
| Length | 101 mm |
|---|---|
| Width | 30 mm |
| Height | 35 mm |
| Dimension A | 101 mm |
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Gutter bolt |
| Type of connector | Connectors |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | H/100 kA |
| Fit | Rd 8-10 mm |
| Dimension | 101x30 |
| Material | Stainless steel 1.4571/1.4404 |
| Clamping range, min. | 8 mm |
| Clamping range, max. | 10 mm |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2273 kg CO2e / 1 Piece |
|---|
