Cover, 90° vertical bend, falling for PT38/PT76 FT

Cover, 90° vertical bend, falling for PT38/PT76 FT

Type PTCover76 HDG
Item no. 6901003
EAN 4012196063338
Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

piece

Description

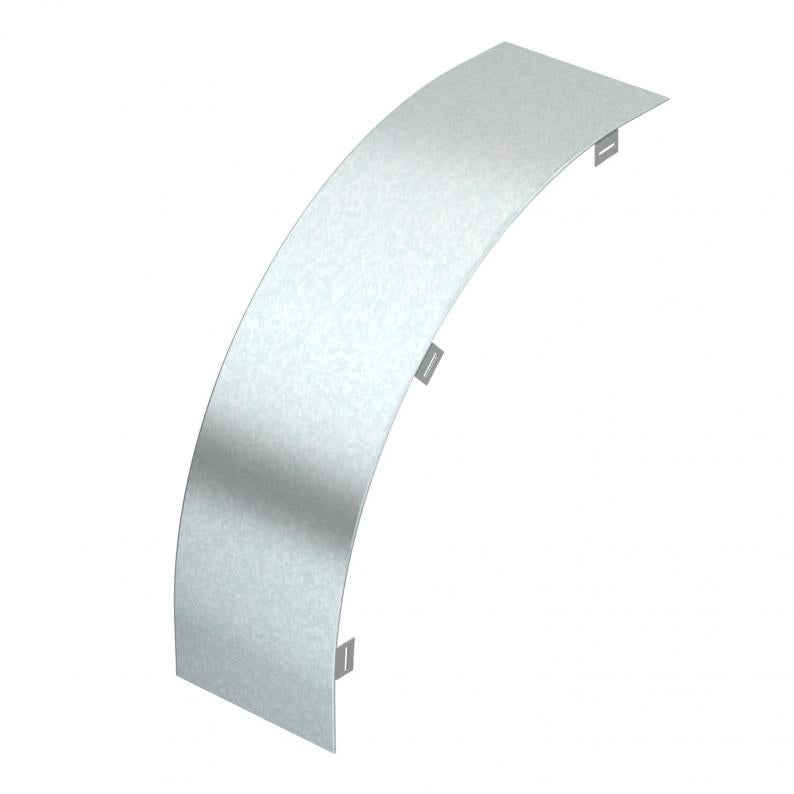

Unperforated cover for 90° vertical bend, falling, of types PT38 and PT76.

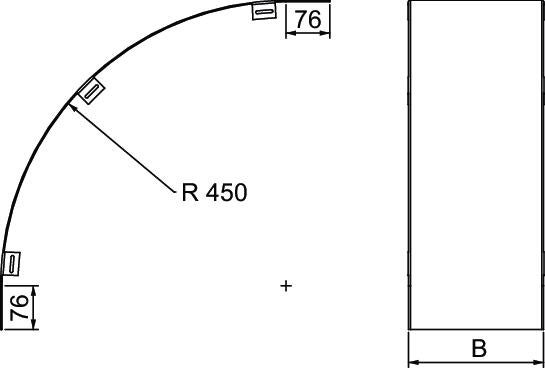

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.



  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

Dimensions

Width76 mm
Dimension B76 mm

Technical data

Plate thickness1,6 mm
Dimension452x452x76
SurfaceHot-dip galvanised
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
PTCover76 HDG
Item no.
6901003
Width
76
Plate thickness
1,6
PTCover114 HDG
Item no.
6901007
Width
114
Plate thickness
1,6
PTCover152 HDG
Item no.
6901011
Width
152
Plate thickness
1,6
PTCover228 HDG
Item no.
6901015
Width
228
Plate thickness
1,6
PTCover304 HDG
Item no.
6901019
Width
304
Plate thickness
1,6
PTCover457 HDG
Item no.
6901023
Width
457
Plate thickness
1,6
PTCover609 HDG
Item no.
6901027
Width
609
Plate thickness
1,6
