Cover, 90° bend PT38/PT76 FT
Type PTCover 76 HDG
Item no. 6900903
EAN 4012196063048
Item no. / Type
Width
Plate thickness
Smallest selling unit: 1 piece
1piece
piece
Description

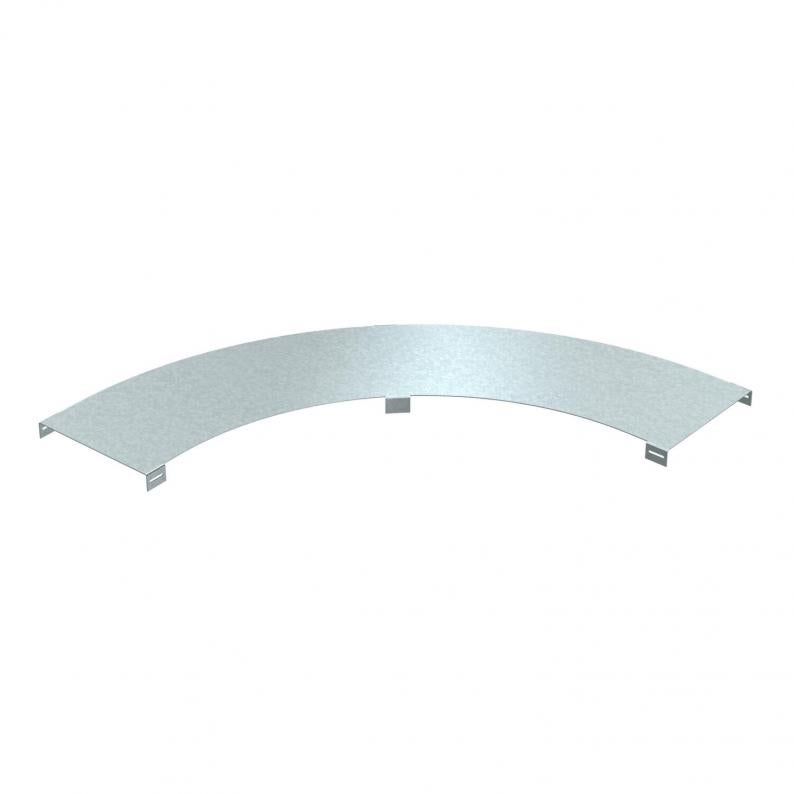

Unperforated cover for 90° bend of types PT38 and PT76.

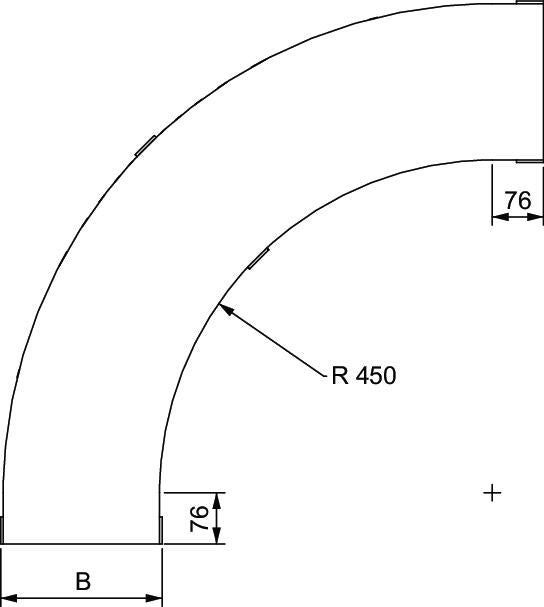

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Technical data
Dimensions
| Width | 76 mm |
|---|---|
| Dimension B | 76 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,6 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hinged | no |
| Dimension | 616x616x20 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Plate thickness
Item no.
PTCover 76 HDG
76
1,6
6900903
PTCover 114 HDG
114
1,6
6900907
PTCover 152 HDG
152
1,6
6900911
PTCover 228 HDG
228
1,6
6900915
PTCover 304 HDG
304
1,6
6900919
PTCover 457 HDG
457
1,6
6900923
PTCover 609 HDG
609
1,6
6900927
Width
PTCover 76 HDG
Item no.
6900903
Width
76
Plate thickness
1,6
PTCover 114 HDG
Item no.
6900907
Width
114
Plate thickness
1,6
PTCover 152 HDG
Item no.
6900911
Width
152
Plate thickness
1,6
PTCover 228 HDG
Item no.
6900915
Width
228
Plate thickness
1,6
PTCover 304 HDG
Item no.
6900919
Width
304
Plate thickness
1,6
PTCover 457 HDG
Item no.
6900923
Width
457
Plate thickness
1,6
PTCover 609 HDG
Item no.
6900927
Width
609
Plate thickness
1,6
