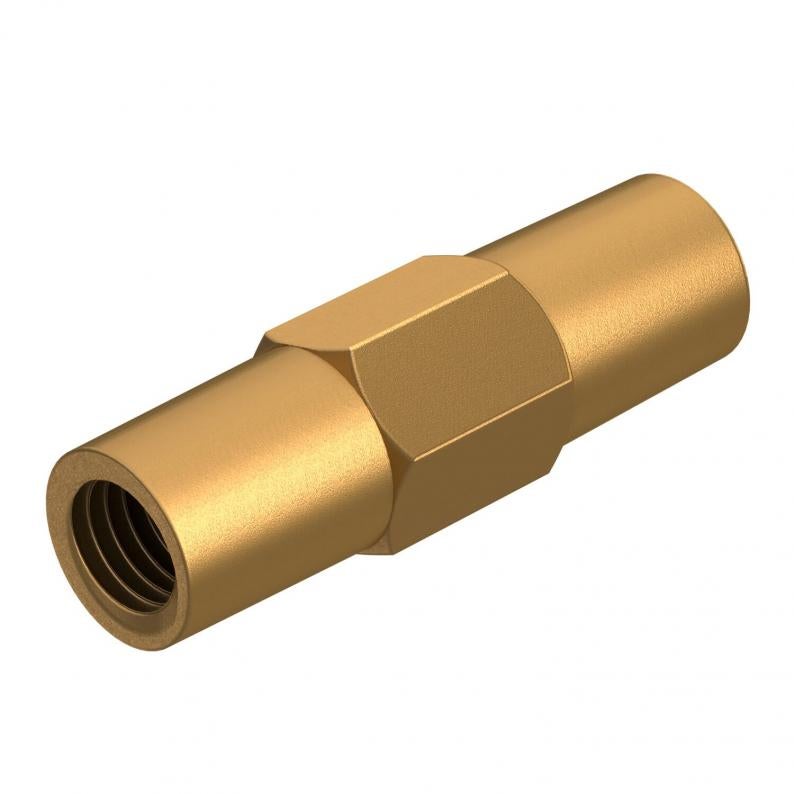

Coupling for earth rod with thread
Type 2019 16
|Item no. 5001190
|EAN 4012196431236
Item no. / Type
5001190 / 2019 16
External diameter
14,2 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Suitable for earth rods, type 2019 16 CU
Technical data

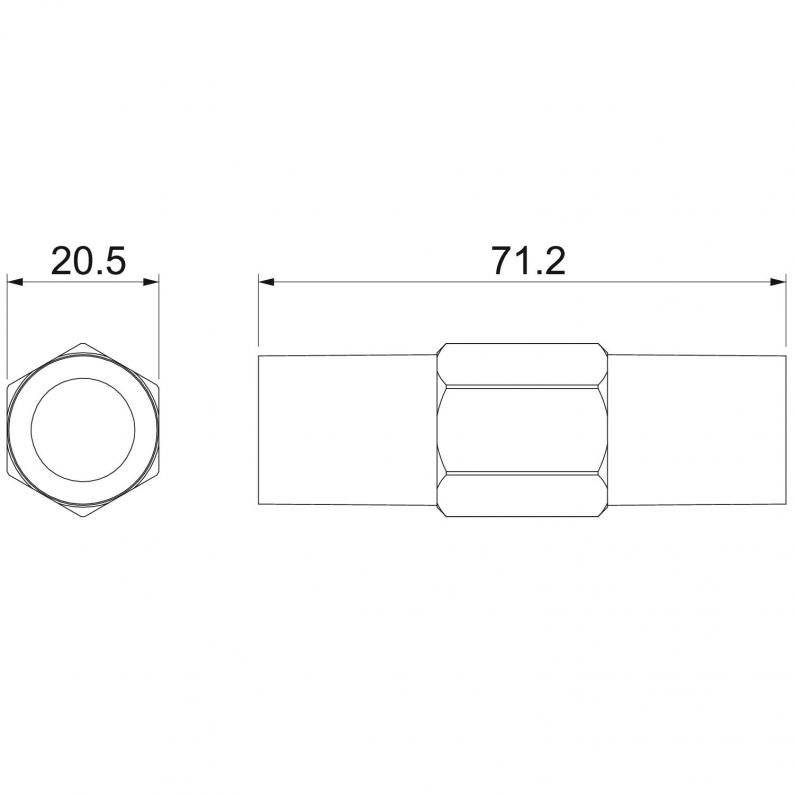

Dimensions
| Length | 72 mm |
|---|---|
| Dimension L | 71,2 mm |
| Dimension D | 20,5 mm |
Technical data
| External diameter | 14,2 mm |
|---|---|
| for earth rods | 14,2 mm |
| Dimension | 72x21 |
| Material | Red bronze |
page.product.environmentalData.environmentalData
| CO2 Footprint (GWP) Cradle-to-Gate | 0,25 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
External diameter
Item no.
2019 16
14,2
5001190
2019 16
Item no.
5001190
External diameter
14,2
