Cable tray PT38 FT

Cable tray PT38 FT

Type PT38 114 HDG
|
Item no. 6900307
|
EAN 4012196061419
Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

m

Description

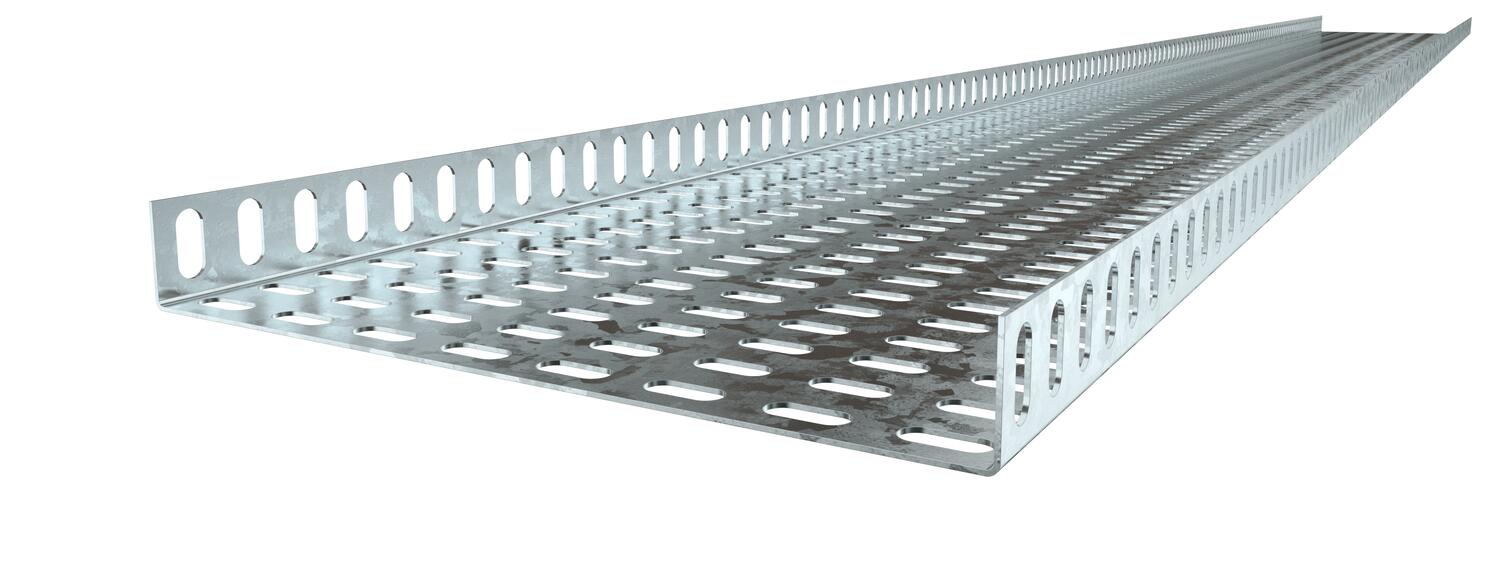

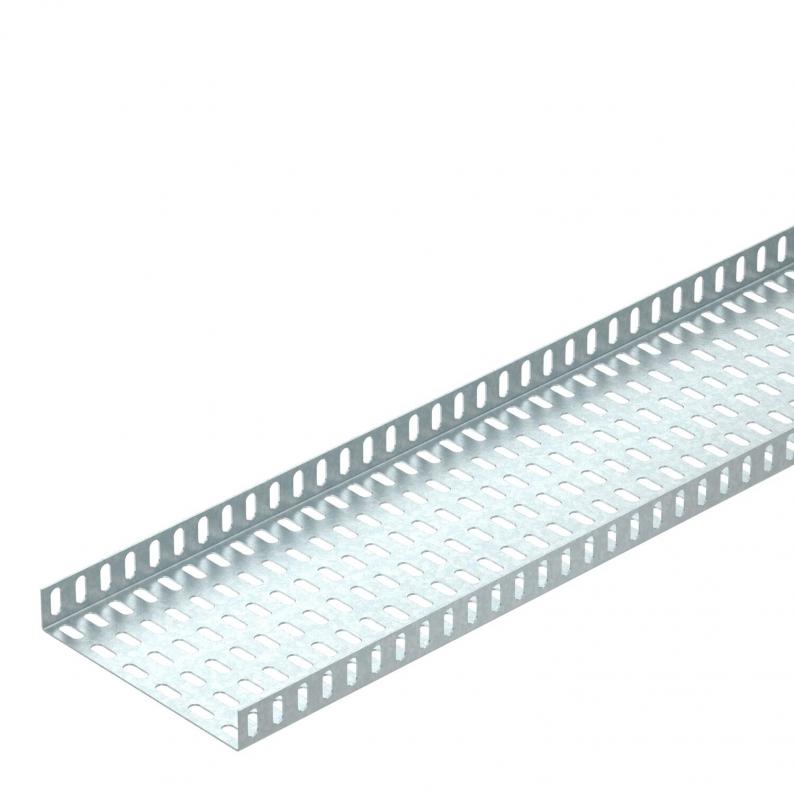

Medium-duty perforated cable tray system PT38.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

Dimensions

Length3000 mm
Width114 mm
Height38 mm

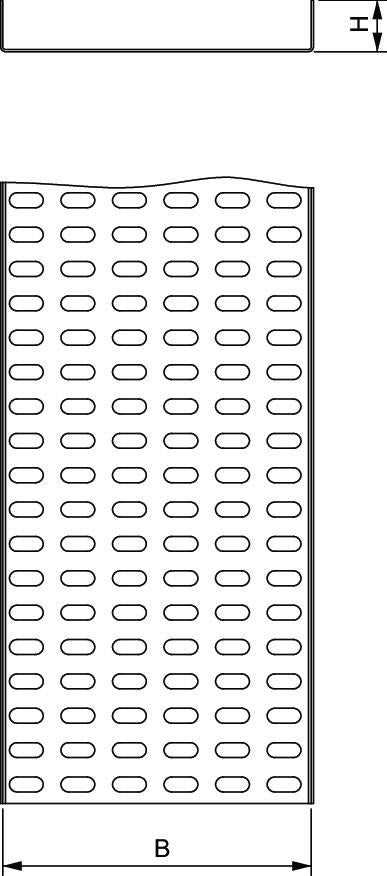

Dimension B114 mm
Dimension H38 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section43 cm²
Rustproof steel, pickledno
Plate thickness1,6 mm
Mounting perforation in baseyes
NATO hole patternno
With coverno
Dimension38x114x3000
SurfaceHot-dip galvanised
MaterialSteel
Type of connector, cable support systemScrewed

Loads

Support spacing 1.0 m1,5 kN/m
Support spacing 2.0 m0,4 kN/m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)

Variants

Width
PT38 76 HDG
Item no.
6900303
Length
3000
Width
76
Maintain electrical functions
no
Plate thickness
1,6
Surface
Hot-dip galvanised
Material
Steel
PT38 114 HDG
Item no.
6900307
Length
3000
Width
114
Maintain electrical functions
no
Plate thickness
1,6
Surface
Hot-dip galvanised
Material
Steel
PT38 152 HDG
Item no.
6900311
Length
3000
Width
152
Maintain electrical functions
no
Plate thickness
1,6
Surface
Hot-dip galvanised
Material
Steel
PT38 228 HDG
Item no.
6900315
Length
3000
Width
228
Maintain electrical functions
no
Plate thickness
1,6
Surface
Hot-dip galvanised
Material
Steel
PT38 304 HDG
Item no.
6900319
Length
3000
Width
304
Maintain electrical functions
no
Plate thickness
1,6
Surface
Hot-dip galvanised
Material
Steel
