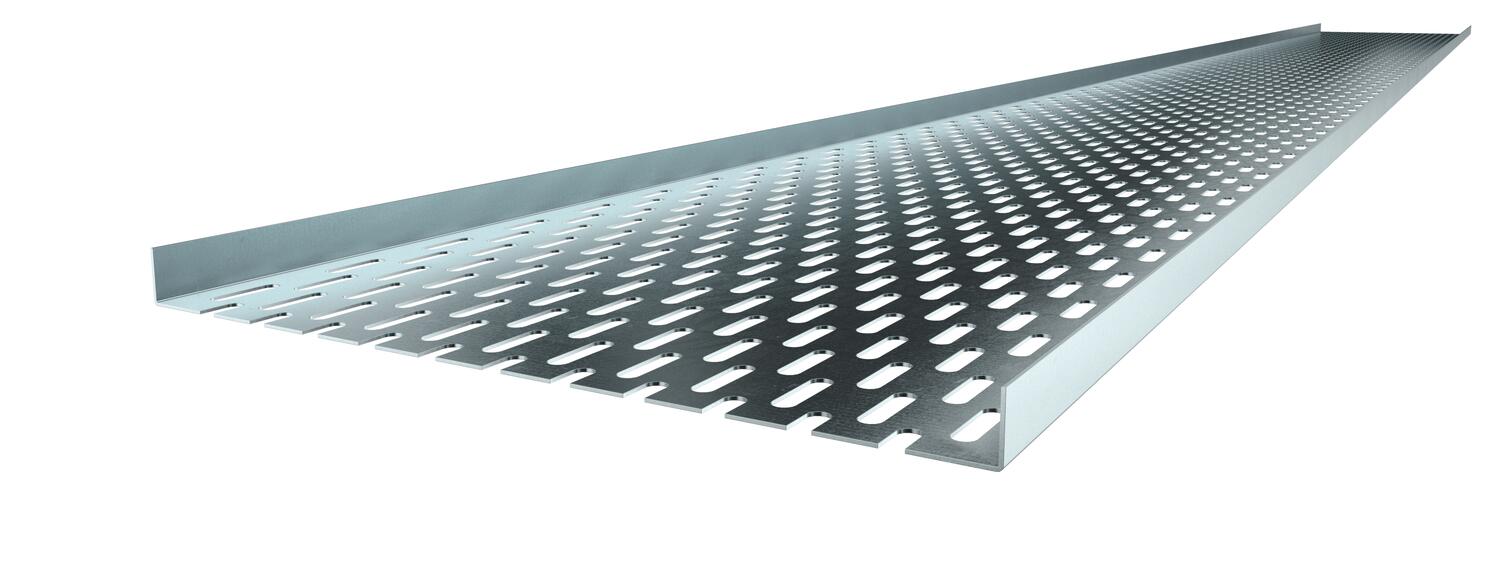

Cable tray PT19 FS
Type PT19 101 PG
|Item no. 6900011
|EAN 4012196060344
Item no. / Type
Length
Width
Plate thickness
Smallest selling unit: 3 m
3m
m
Description
Light-duty perforated cable tray system PT12/PT19.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 101 mm |
| Height | 19 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 19 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| With cover | no |
| Dimension | 19x101x3000 |
| Surface | Strip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
PT19 101 PG
3000
101
no
1
Strip galvanised
Steel
6900011
PT19 152 PG
3000
152
no
1
Strip galvanised
Steel
6900015
Width
PT19 101 PG
Item no.
6900011
Length
3000
Width
101
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanised
Material
Steel
PT19 152 PG
Item no.
6900015
Length
3000
Width
152
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanised
Material
Steel
