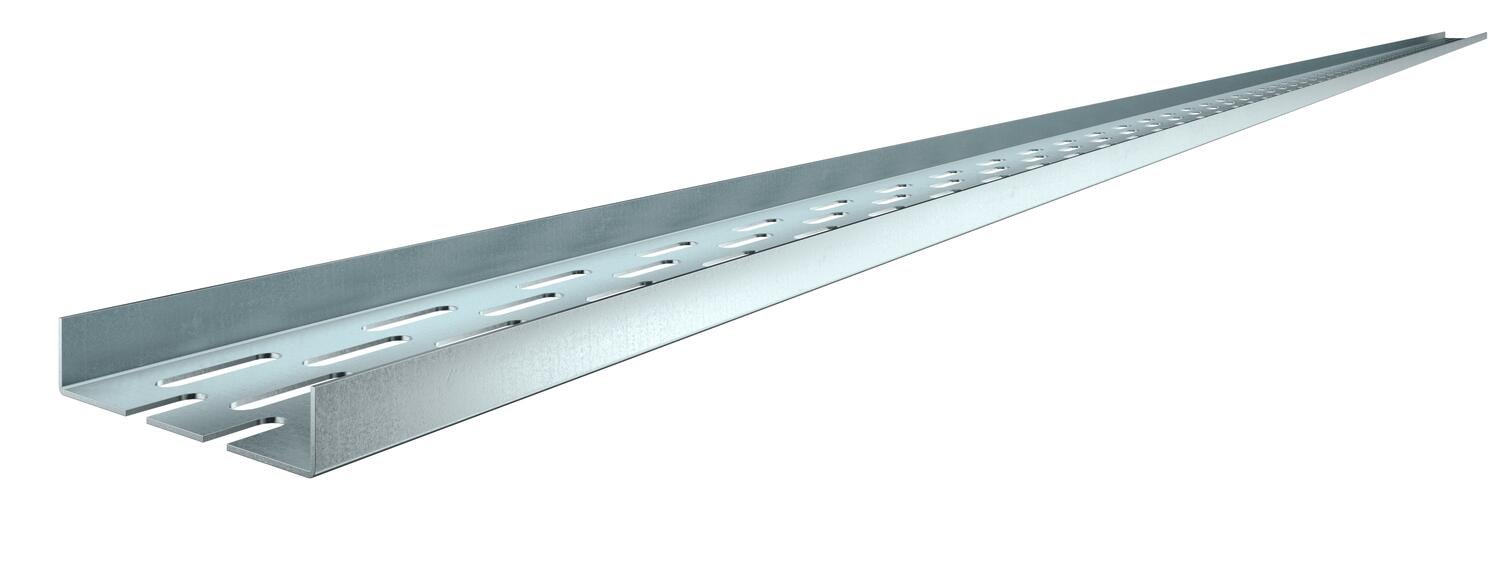

Cable tray PT12 FS
Type PT12 50 PG
|Item no. 6900003
|EAN 4012196060283
Item no. / Type
6900003 / PT12 50 PG
Length
3000 mm
Width
50 mm
Maintain electrical functions
no
Plate thickness
1,6 mm
Surface
Strip galvanised
Material
Steel
Smallest selling unit: 3 m
3m
m
Description
Light-duty perforated cable tray system PT12/PT19.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 12 mm |
| Dimension B | 50 mm |
| Dimension H | 12 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Wide-span version | no |
| Usable cross-section | 6 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 1,6 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 600 mm² |
| With cover | no |
| Dimension | 12x50x3000 |
| Surface | Strip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
