Cable-pipe clip OLTC HDG
Type OLTC01/45 HDG
Item no. 1500545
EAN 4012196059195
Item no. / Type
For diameter
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 1 piece
1piece
piece
Description

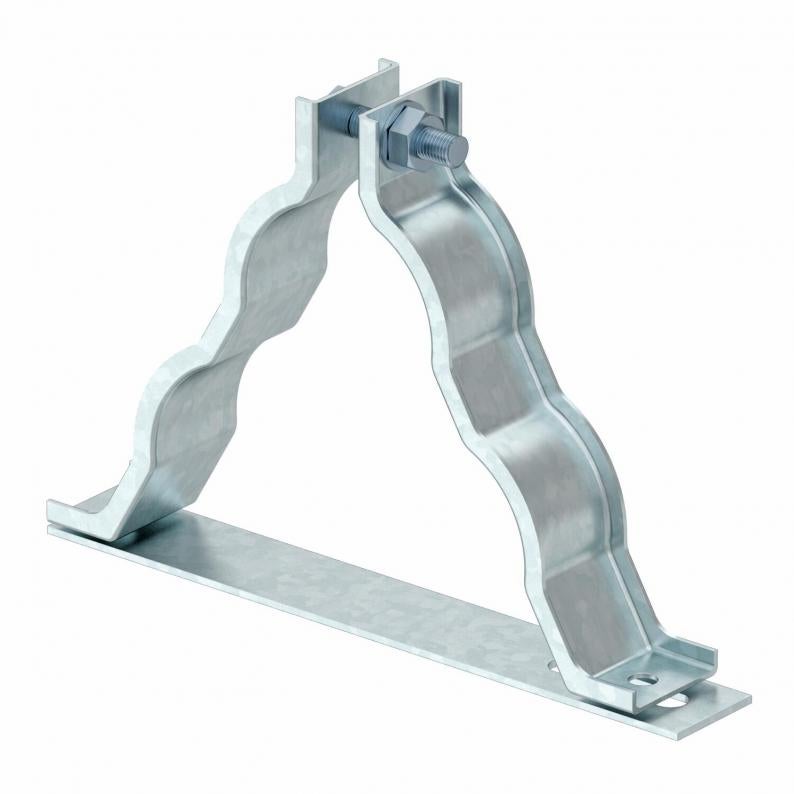

Fastening clip with retaining plate to accept 3 cables or pipes.
Complete with bolts, nuts, washers and head plates.
Complete with bolts, nuts, washers and head plates.
Technical data
Technical data
| For diameter | 39-45 |
|---|---|
| Clamping range D, min. | 90 mm |
| Clamping range D, max. | 130 mm |
| Dimension | 165x40x45 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Product series | Cable and pipe fastening |

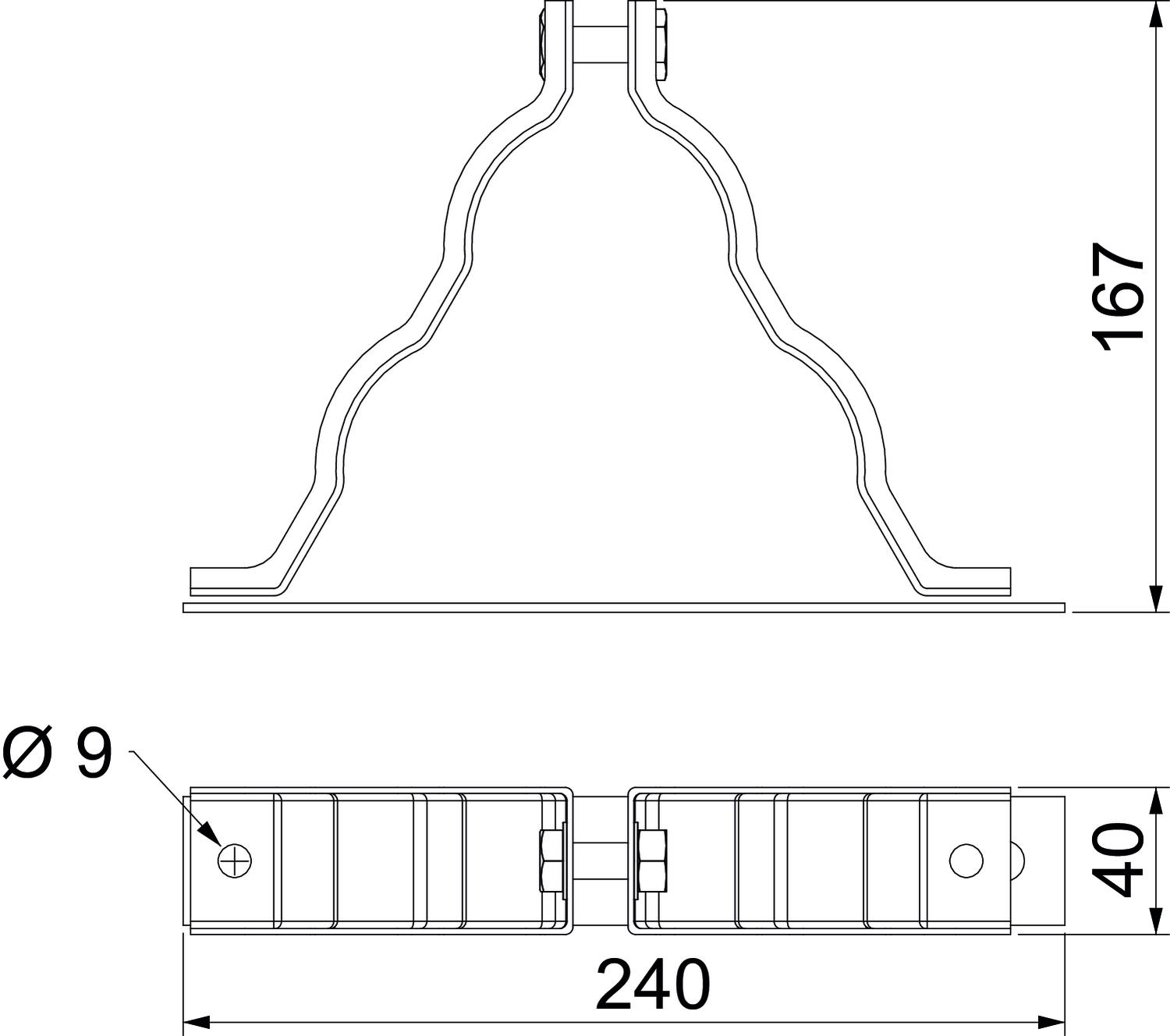

Dimensions
| Dimension B | 108 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Product images (2)
Tender specifications (1)
Variants
Type
For diameter
Clamping range D, min.
Clamping range D, max.
Item no.
OLTC01/45 HDG
39-45
90
130
1500545
OLTC01/51 HDG
46-51
130
170
1500551
OLTC01/59 HDG
52-59
145
185
1500559
OLTC01/70 HDG
60-70
170
210
1500570
OLTC01/75 HDG
70-75
170
210
1500575
For diameter
Clamping range D, min.
Clamping range D, max.
OLTC01/45 HDG
Item no.
1500545
For diameter
39-45
Clamping range D, min.
90
Clamping range D, max.
130
OLTC01/51 HDG
Item no.
1500551
For diameter
46-51
Clamping range D, min.
130
Clamping range D, max.
170
OLTC01/59 HDG
Item no.
1500559
For diameter
52-59
Clamping range D, min.
145
Clamping range D, max.
185
OLTC01/70 HDG
Item no.
1500570
For diameter
60-70
Clamping range D, min.
170
Clamping range D, max.
210
OLTC01/75 HDG
Item no.
1500575
For diameter
70-75
Clamping range D, min.
170
Clamping range D, max.
210
