Cable ladder TS225, 3 m
Type TS225 300 HDG
|Item no. 6906203
|EAN 4012196076314
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 3 m
3m
m
Description

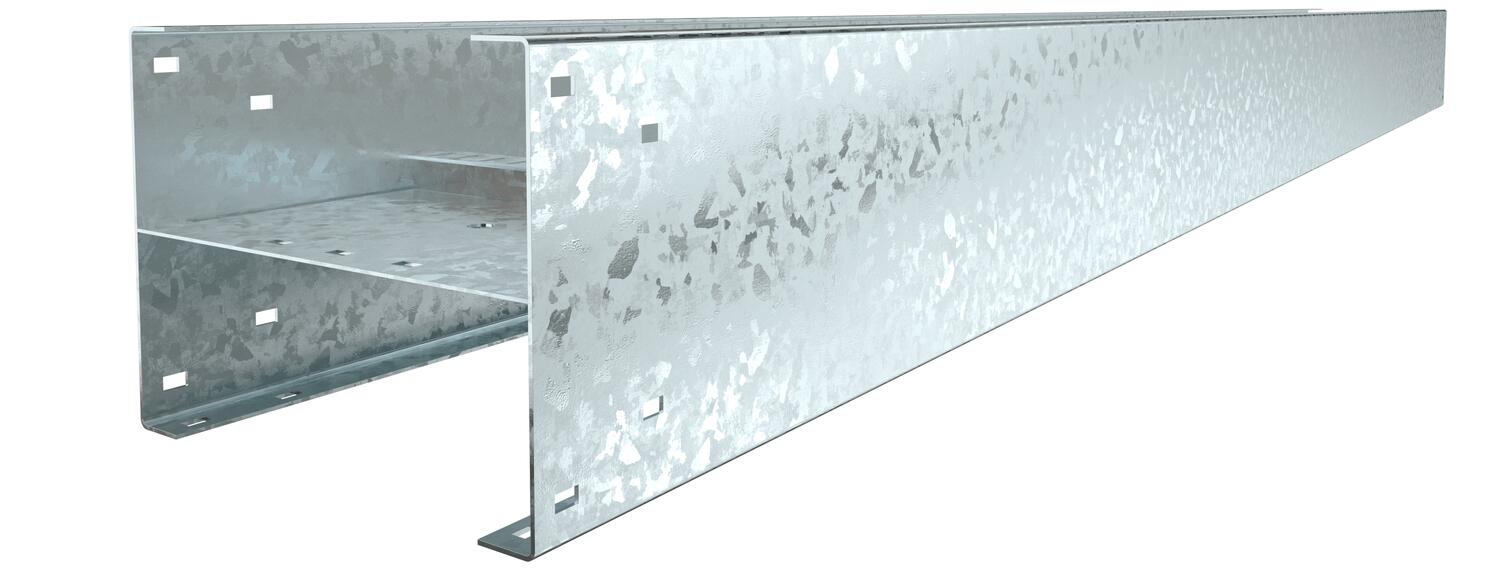

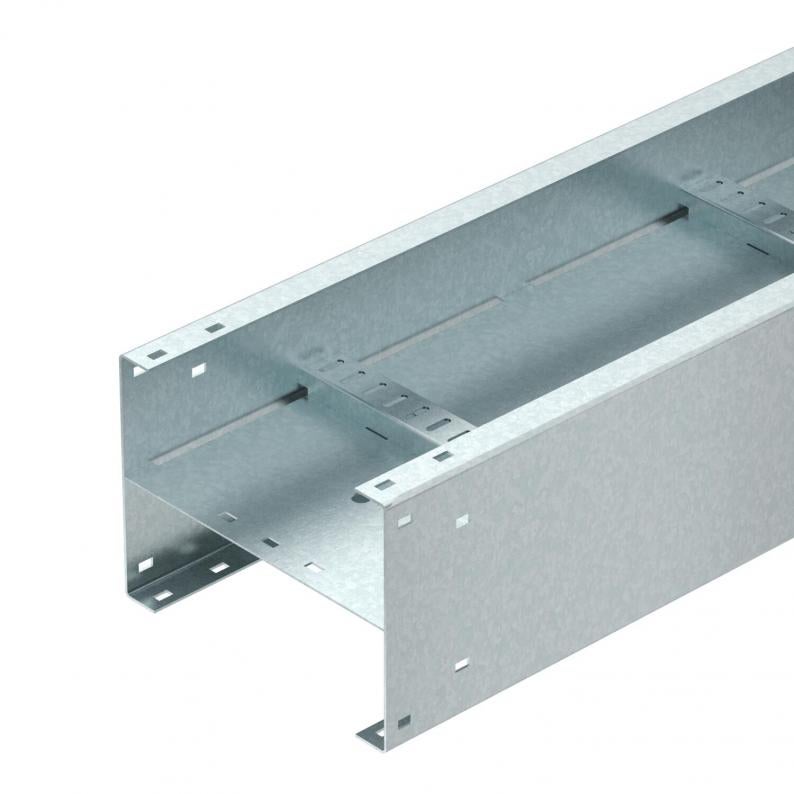

Double-sided TS225 cable ladder system, welded version, with closed base. The side height is 225 mm with a supply length of 3,000 mm.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 300 mm |
| Height | 225 mm |
| Dimension B | 300 mm |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 2,5 mm |
| Dimension | 3000x300x225 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
TS225 300 HDG
3000
300
2,5
6906203
TS225 450 HDG
3000
450
2,5
6906207
TS225 600 HDG
3000
600
2,5
6906211
TS225 900 HDG
3000
900
2,5
6906215
Width
TS225 300 HDG
Item no.
6906203
Length
3000
Width
300
Rail thickness
2,5
TS225 450 HDG
Item no.
6906207
Length
3000
Width
450
Rail thickness
2,5
TS225 600 HDG
Item no.
6906211
Length
3000
Width
600
Rail thickness
2,5
TS225 900 HDG
Item no.
6906215
Length
3000
Width
900
Rail thickness
2,5
