Cable ladder TS150, 3 m
Type TS150 300 HDG
|Item no. 6906003
|EAN 4012196076000
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 3 m
3m
m
Description

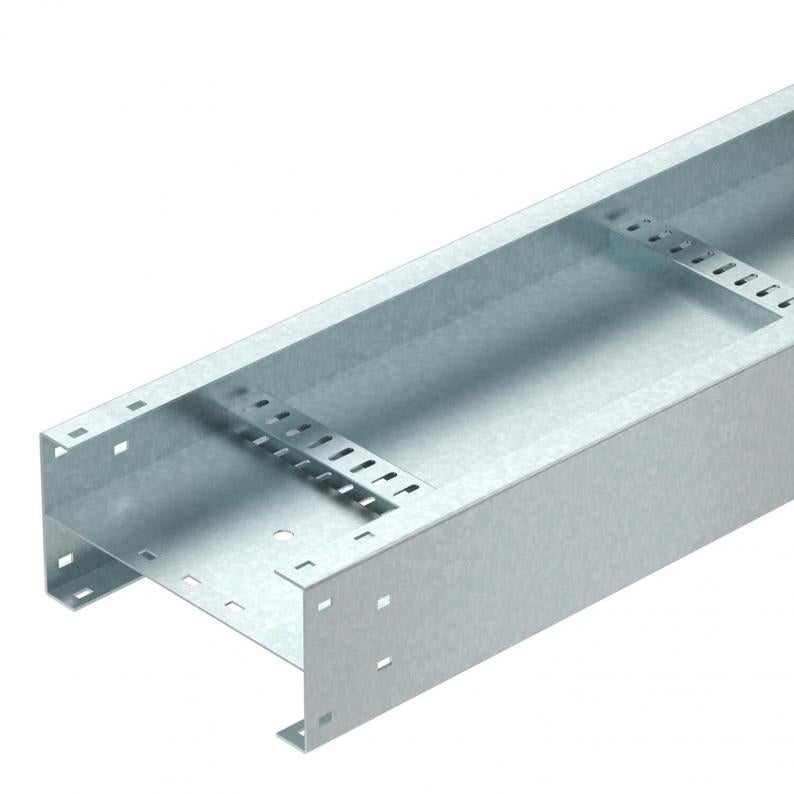

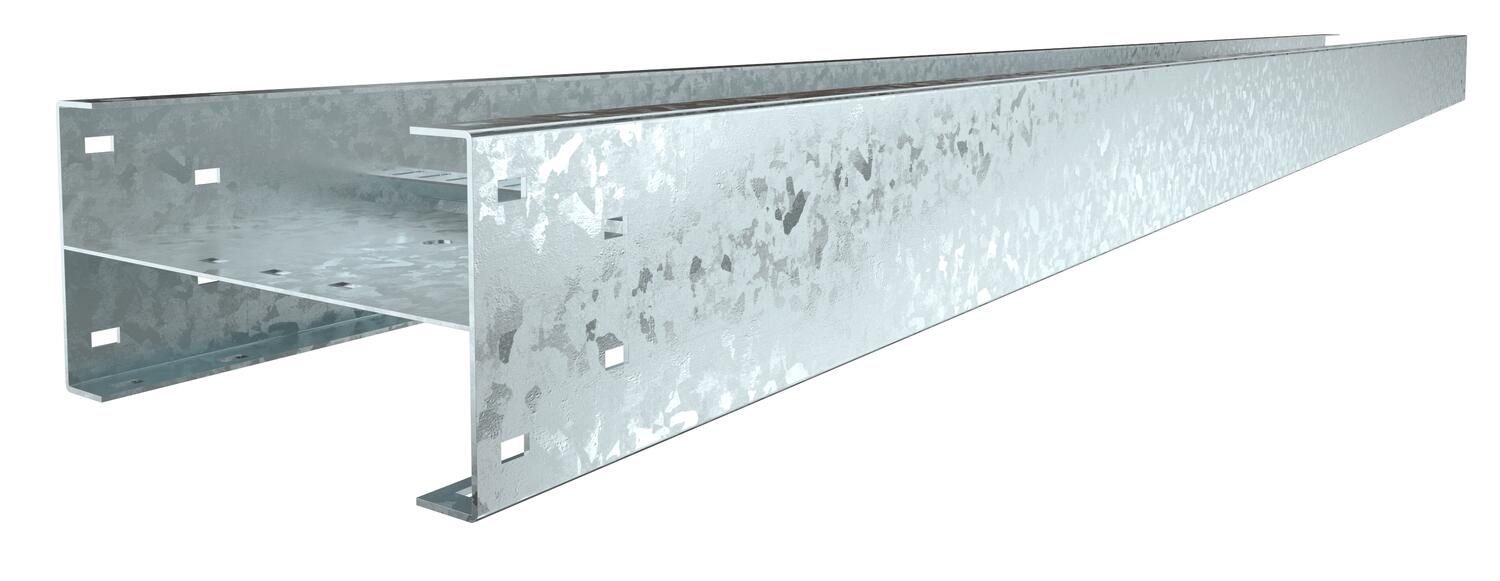

Double-sided TS150 cable ladder system, welded version, with closed base. The side height is 150 mm with a supply length of 3,000 mm.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 300 mm |
| Height | 150 mm |
| Dimension B | 300 mm |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 2,5 mm |
| Dimension | 3000x300x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
TS150 300 HDG
3000
300
2,5
6906003
TS150 450 HDG
3000
450
2,5
6906007
TS150 600 HDG
3000
600
2,5
6906011
TS150 900 HDG
3000
900
2,5
6906015
Width
TS150 300 HDG
Item no.
6906003
Length
3000
Width
300
Rail thickness
2,5
TS150 450 HDG
Item no.
6906007
Length
3000
Width
450
Rail thickness
2,5
TS150 600 HDG
Item no.
6906011
Length
3000
Width
600
Rail thickness
2,5
TS150 900 HDG
Item no.
6906015
Length
3000
Width
900
Rail thickness
2,5
