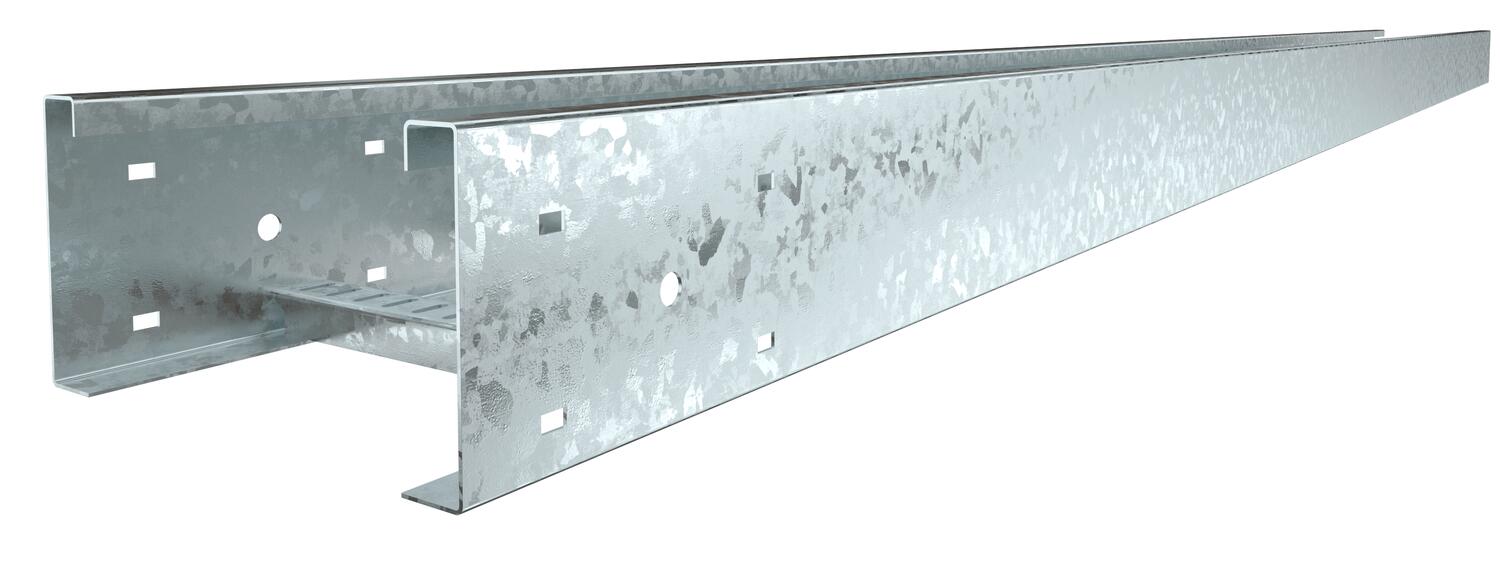

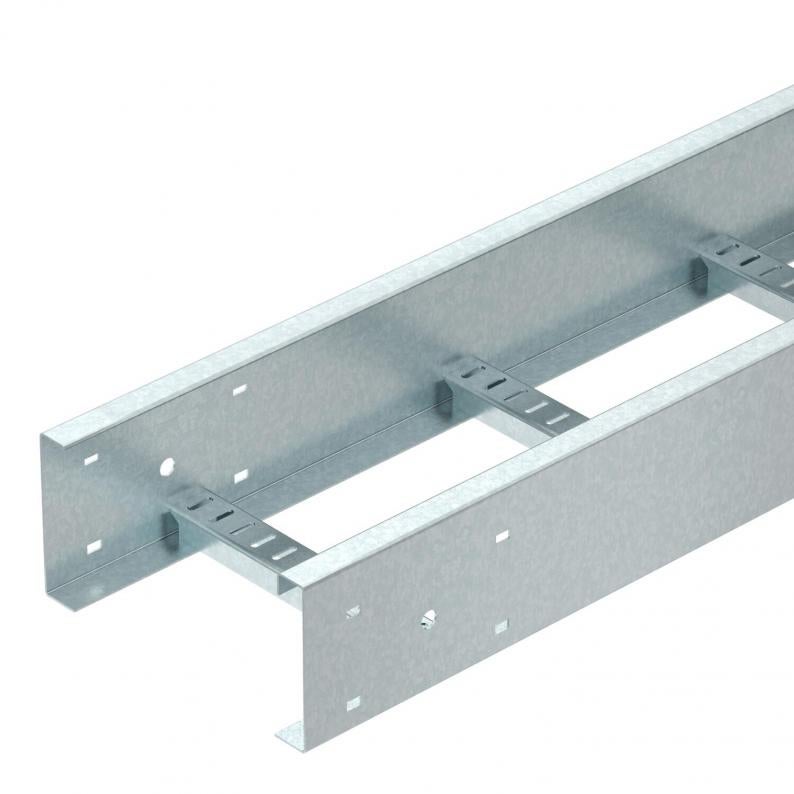

Cable ladder SSP150 Nema 20C, 6 m
Type SSP150 200 HDG
|Item no. 6905353
|EAN 4012196074884
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 6 m
6m
m
Description
Heavy-duty SSP150 cable ladder system, welded version. The side height is 150 mm with a supply length of 6000 mm.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Technical data
Dimensions
| Length | 6000 mm |
|---|---|
| Width | 200 mm |
| Height | 150 mm |
| Dimension B | 200 mm |
Loads
| Support spacing 5.0 m | 1,8 kN/m |
|---|---|
| Support spacing 6.0 m | 1,4 kN/m |
| Support spacing 7.0 m | 1 kN/m |
| Support spacing 8.0 m | 0,7 kN/m |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 2 mm |
| Dimension | 6000x200x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing

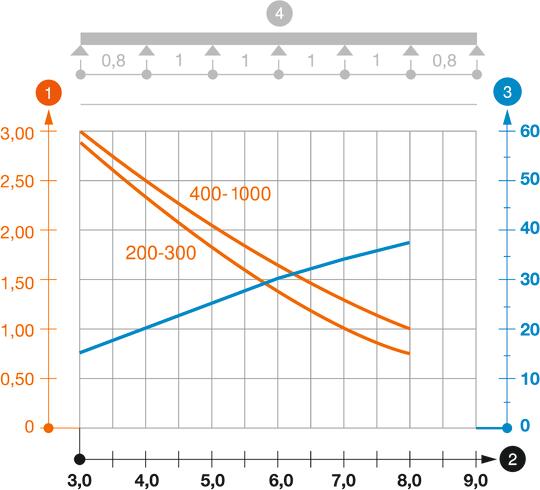

Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
