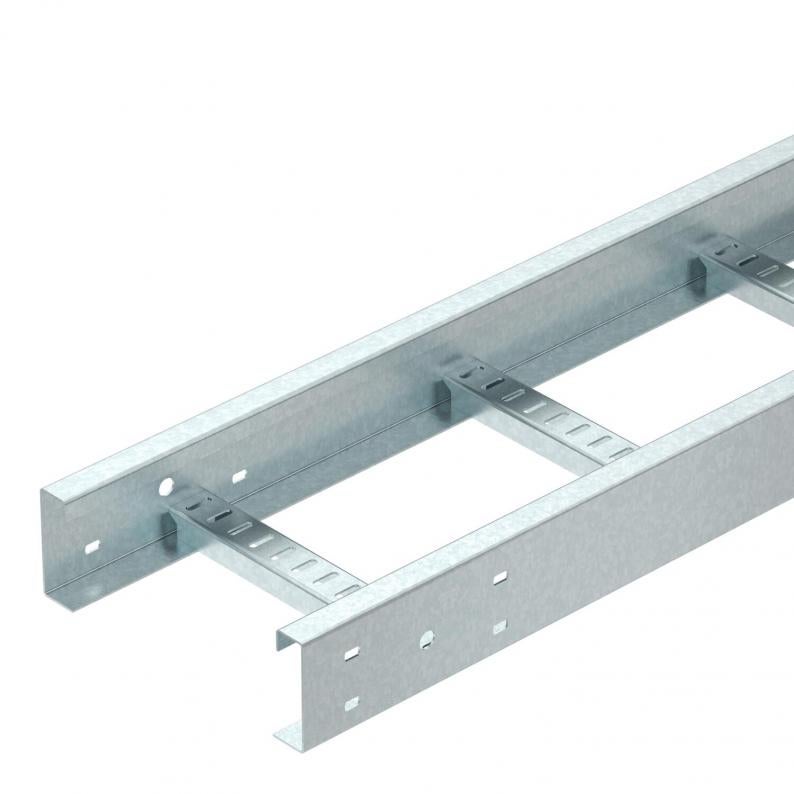

Cable ladder SSP100 Nema 20C, 6 m
Type SSP100 300 HDG
|Item no. 6904657
|EAN 4012196073542
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 6 m
6m
m
Description
Heavy-duty SSP100 cable ladder system Nema 20C, welded version. The side height is 100 mm with a supply length of 6,000 mm.
Technical data
Dimensions
| Length | 6000 mm |
|---|---|
| Width | 300 mm |
| Height | 100 mm |
| Dimension B | 300 mm |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 2 mm |
| Dimension | 6000x300x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
SSP100 200 HDG
6000
200
2
6904653
SSP100 300 HDG
6000
300
2
6904657
SSP100 400 HDG
6000
400
2
6904661
SSP100 500 HDG
6000
500
2
6904665
SSP100 600 HDG
6000
600
2
6904669
SSP100 800 HDG
6000
800
2
6904673
SSP100 1000 HDG
6000
1000
2
6904677
Width
SSP100 200 HDG
Item no.
6904653
Length
6000
Width
200
Rail thickness
2
SSP100 300 HDG
Item no.
6904657
Length
6000
Width
300
Rail thickness
2
SSP100 400 HDG
Item no.
6904661
Length
6000
Width
400
Rail thickness
2
SSP100 500 HDG
Item no.
6904665
Length
6000
Width
500
Rail thickness
2
SSP100 600 HDG
Item no.
6904669
Length
6000
Width
600
Rail thickness
2
SSP100 800 HDG
Item no.
6904673
Length
6000
Width
800
Rail thickness
2
SSP100 1000 HDG
Item no.
6904677
Length
6000
Width
1000
Rail thickness
2
