Cable ladder SSP100 Nema 20B, 6 m
Type SSP100 300 HDG
|Item no. 6904607
|EAN 4012196073429
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 6 m
6m
m
Description

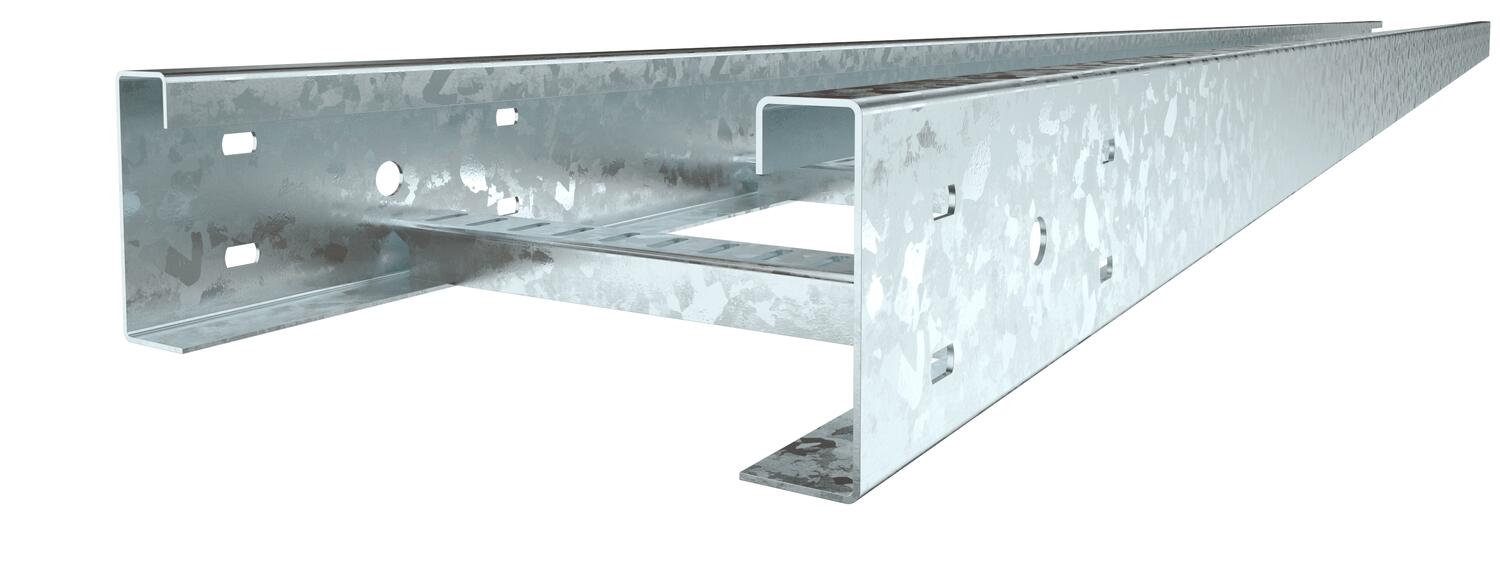

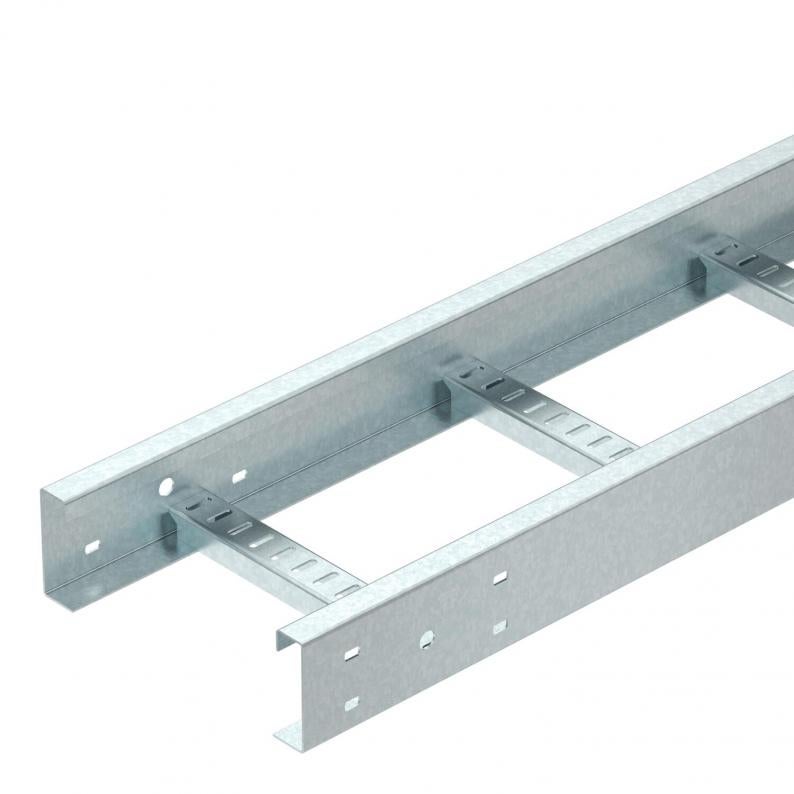

Heavy-duty SSP100 cable ladder system Nema 20B, welded version. The side height is 100 mm with a supply length of 6,000 mm.
Technical data
Dimensions
| Length | 6000 mm |
|---|---|
| Width | 300 mm |
| Height | 100 mm |
| Dimension B | 300 mm |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 1,6 mm |
| Dimension | 6000x300x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
SSP100 200 HDG
6000
200
1,6
6904603
SSP100 300 HDG
6000
300
1,6
6904607
SSP100 400 HDG
6000
400
1,6
6904611
SSP100 500 HDG
6000
500
1,6
6904615
SSP100 600 HDG
6000
600
1,6
6904619
SSP100 800 HDG
6000
800
1,6
6904623
SSP100 1000 HDG
6000
1000
1,6
6904627
