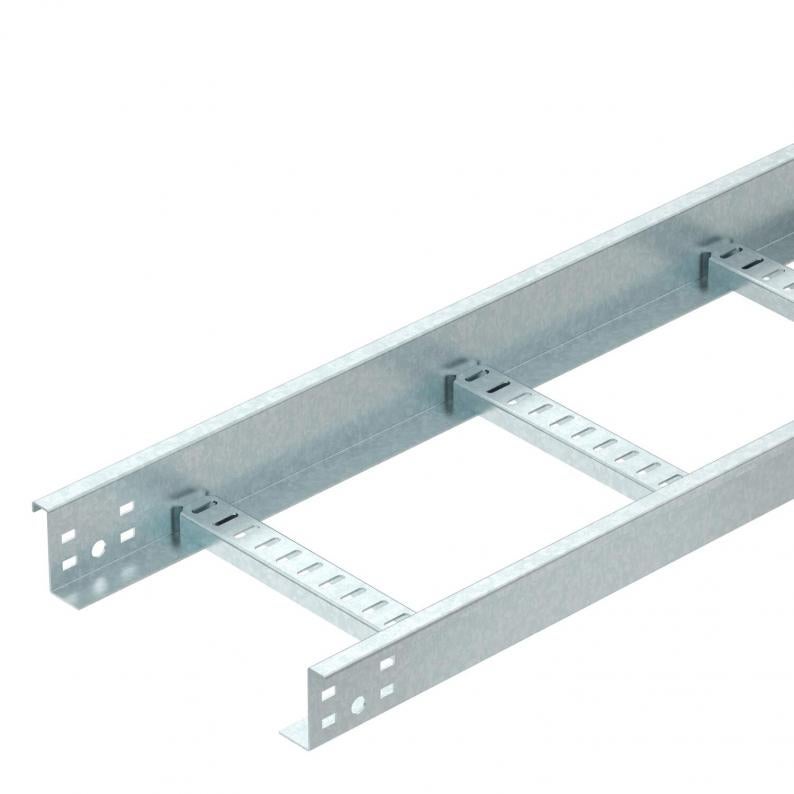

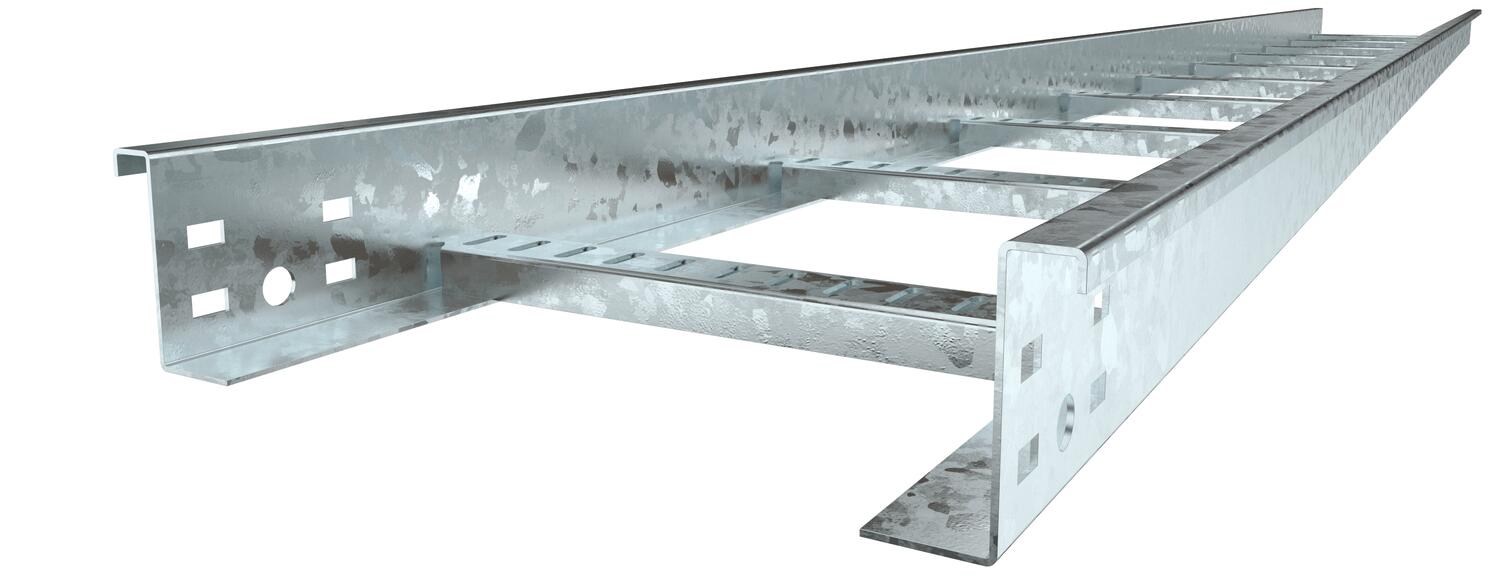

Cable ladder PS75, 3 m
Type PS75 200 HDG
|Item no. 6903407
|EAN 4012196070480
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 3 m
3m
m
Description
Heavy-duty PS75 cable ladder system, welded version. The side height is 75 mm with a supply length of 3,000 mm.
6,000 mm delivery length on request.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
6,000 mm delivery length on request.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 75 mm |
| Dimension L | 75 mm |
| Dimension B | 200 mm |
Loads
| Support spacing 2.0 m | 4 kN/m |
|---|---|
| Support spacing 4.0 m | 0,9 kN/m |
| Support spacing 6.0 m | 0,4 kN/m |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 2 mm |
| Dimension | 75x250x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
PS75 150 HDG
3000
150
2
6903403
PS75 200 HDG
3000
200
2
6903407
PS75 300 HDG
3000
300
2
6903411
PS75 400 HDG
3000
400
2
6903415
PS75 500 HDG
3000
500
2
6903419
PS75 600 HDG
3000
600
2
6903423
PS75 800 HDG
3000
800
2
6903427
PS75 1000 HDG
3000
1000
2
6903431
