Cable ladder PS150
Type PS150 150 HDG
|Item no. 6904003
|EAN 4012196071920
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 3 m
3m
m
Description

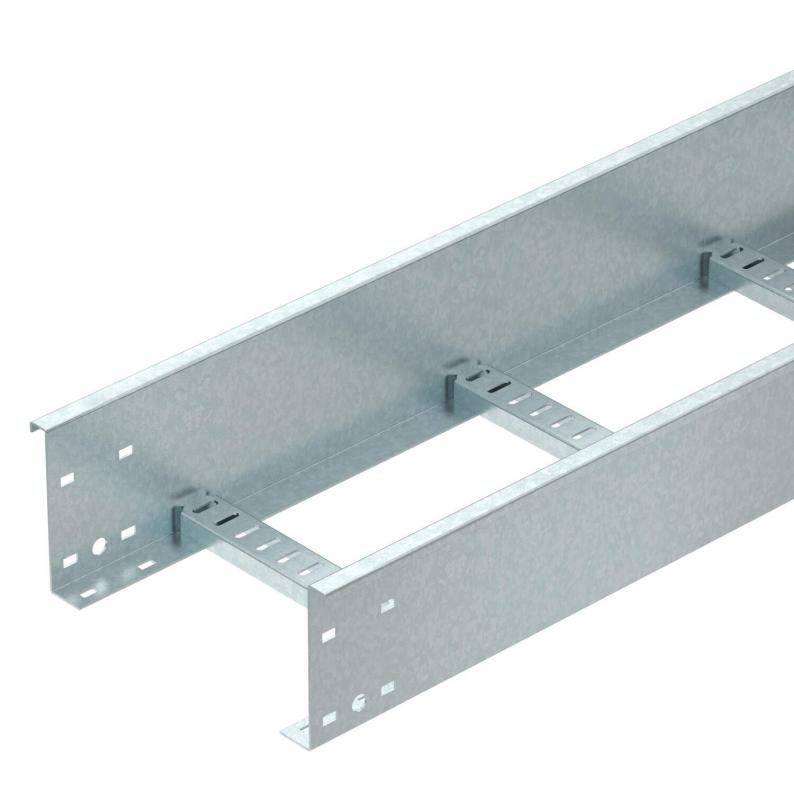

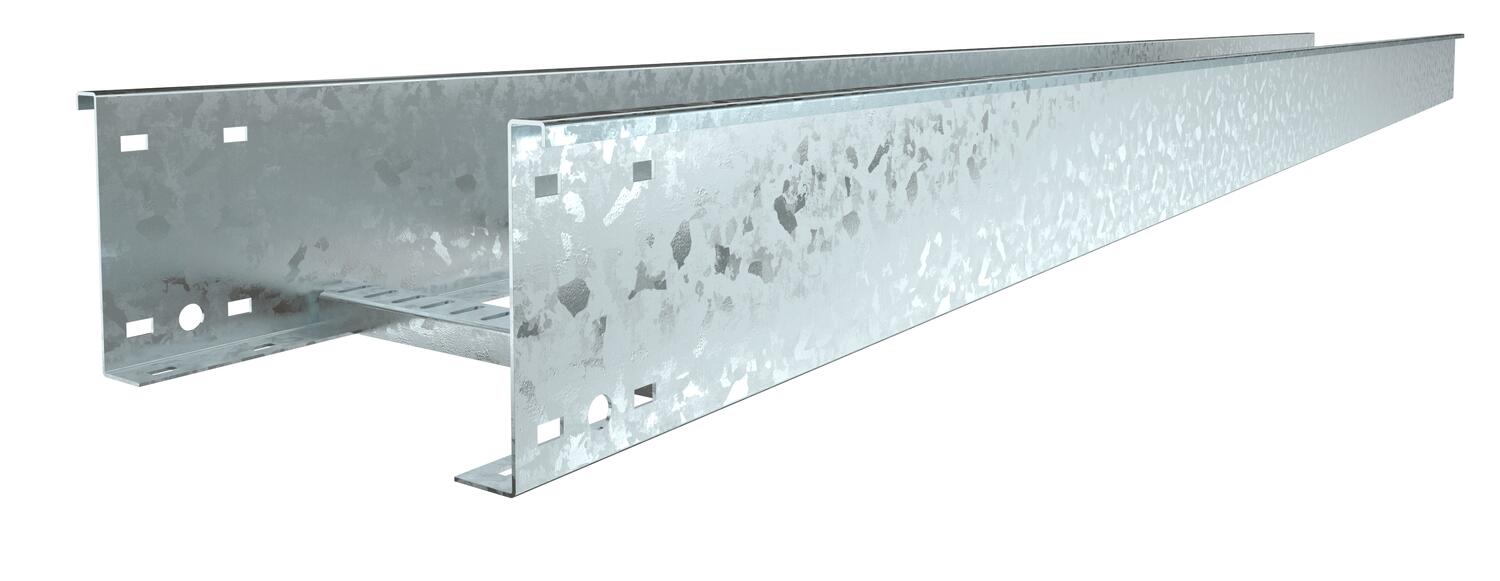

PS150 heavy-duty cable ladder system, welded version. The side height is 150 mm with a supply length of 3,000 mm.
6,000 mm delivery length on request.
6,000 mm delivery length on request.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 150 mm |
| Dimension B | 150 mm |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 2 mm |
| Dimension | 150x200x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
PS150 150 HDG
3000
150
2
6904003
PS150 200 HDG
3000
200
2
6904007
PS150 300 HDG
3000
300
2
6904011
PS150 400 HDG
3000
400
2
6904015
PS150 500 HDG
3000
500
2
6904019
PS150 600 HDG
3000
600
2
6904023
PS150 800 HDG
3000
800
2
6904027
PS150 1000 HDG
3000
1000
2
6904031
Width
PS150 150 HDG
Item no.
6904003
Length
3000
Width
150
Rail thickness
2
PS150 200 HDG
Item no.
6904007
Length
3000
Width
200
Rail thickness
2
PS150 300 HDG
Item no.
6904011
Length
3000
Width
300
Rail thickness
2
PS150 400 HDG
Item no.
6904015
Length
3000
Width
400
Rail thickness
2
PS150 500 HDG
Item no.
6904019
Length
3000
Width
500
Rail thickness
2
PS150 600 HDG
Item no.
6904023
Length
3000
Width
600
Rail thickness
2
PS150 800 HDG
Item no.
6904027
Length
3000
Width
800
Rail thickness
2
PS150 1000 HDG
Item no.
6904031
Length
3000
Width
1000
Rail thickness
2
