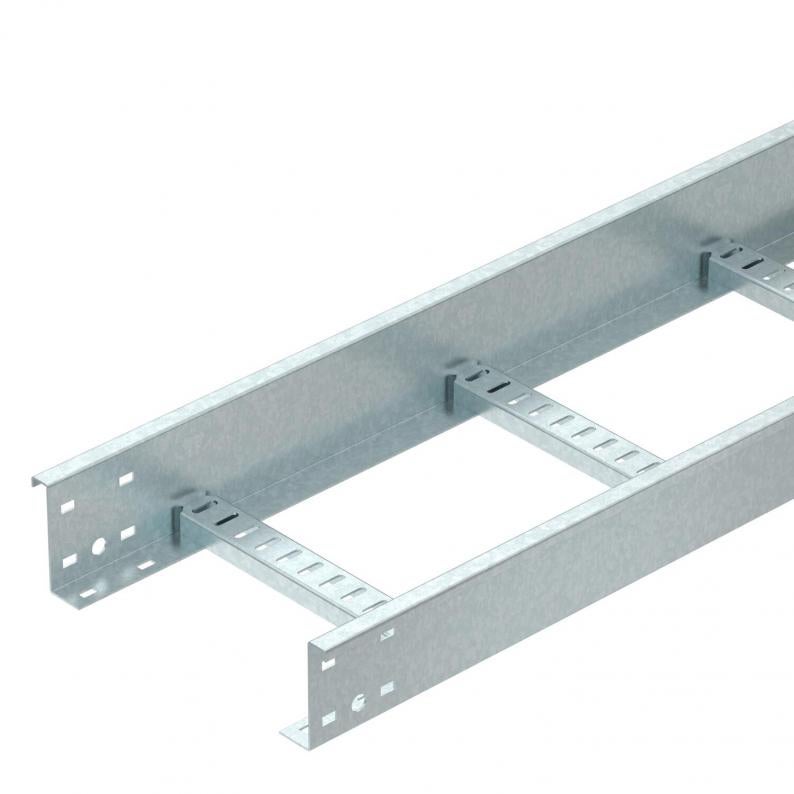

Cable ladder PS100, 3 m
Type PS100 150 HDG
|Item no. 6903703
|EAN 4012196071210
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 3 m
3m
m
Description
PS100 heavy-duty cable ladder system, welded version. The side height is 100 mm with a supply length of 3,000 mm.
6,000 mm delivery length on request.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
6,000 mm delivery length on request.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 100 mm |
| Dimension B | 150 mm |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 2 mm |
| Dimension | 100x200x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
PS100 150 HDG
3000
150
2
6903703
PS100 200 HDG
3000
200
2
6903707
PS100 300 HDG
3000
300
2
6903711
PS100 400 HDG
3000
400
2
6903715
PS100 500 HDG
3000
500
2
6903719
PS100 600 HDG
3000
600
2
6903723
PS100 800 HDG
3000
800
2
6903727
PS100 1000 HDG
3000
1000
2
6903731
