Cable ladder OL76, 3 m
Type OL76 150 HDG
|Item no. 6902807
|EAN 4012196069002
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 3 m
3m
m
Description

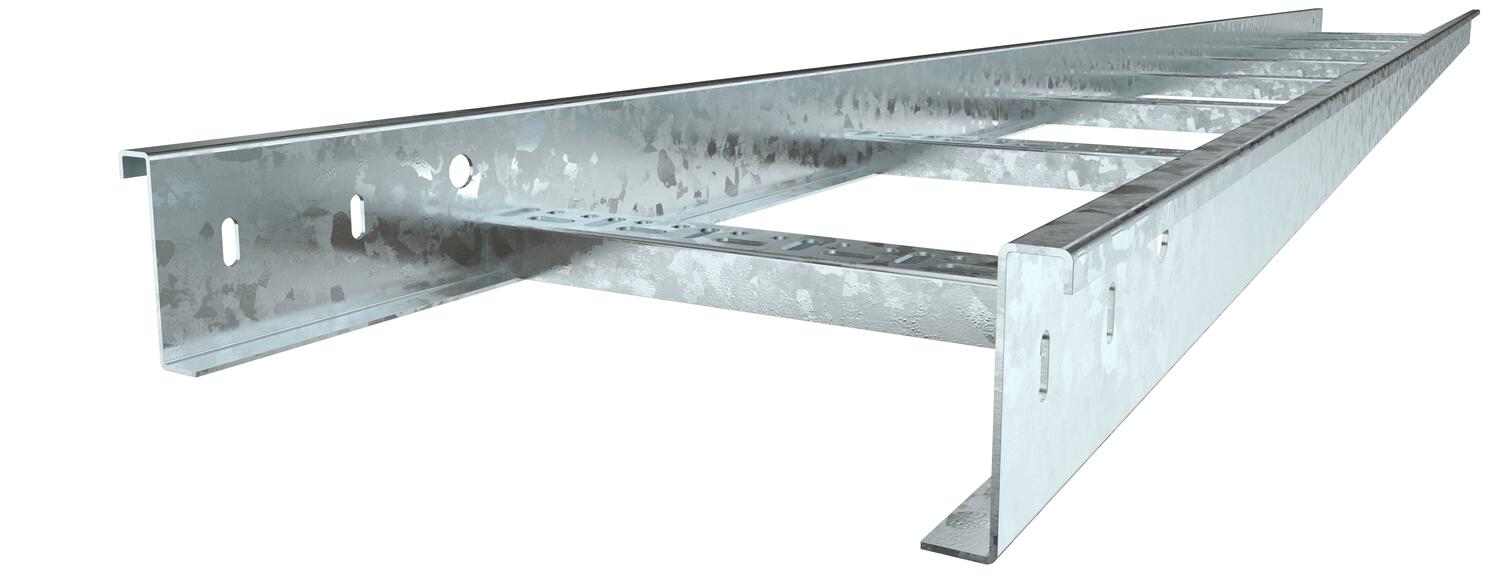

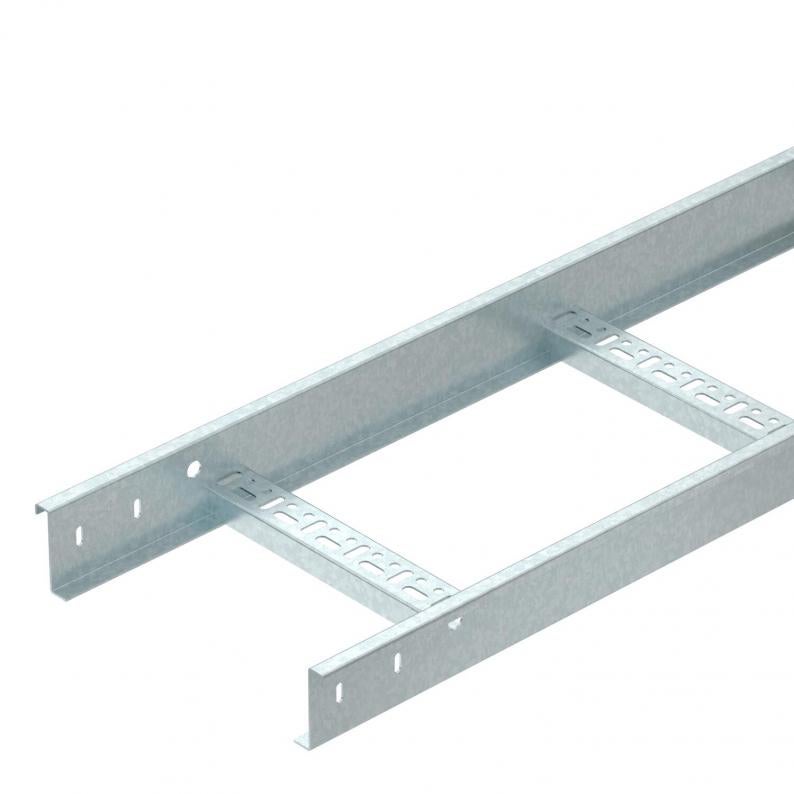

Medium-duty OL76 cable ladder system, welded version. The side height is 76 mm with a supply length of 3000 mm.
6000 mm delivery length on request.
6000 mm delivery length on request.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 76 mm |
| Dimension B | 150 mm |
Loads
| Support spacing 1.5 m | 1,9 kN/m |
|---|---|
| Support spacing 2.0 m | 0,9 kN/m |
| Support spacing 3.0 m | 0,5 kN/m |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 1,6 mm |
| Dimension | 76x200x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
OL76 150 HDG
3000
150
1,6
6902807
OL76 200 HDG
3000
200
1,6
6902811
OL76 300 HDG
3000
300
1,6
6902815
OL76 400 HDG
3000
400
1,6
6902819
OL76 500 HDG
3000
500
2
6902823
OL76 600 HDG
3000
600
2
6902827
OL76 800 HDG
3000
800
2
6902831
OL76 1000 HDG
3000
1000
2
6902835
Width
Rail thickness
OL76 150 HDG
Item no.
6902807
Length
3000
Width
150
Rail thickness
1,6
OL76 200 HDG
Item no.
6902811
Length
3000
Width
200
Rail thickness
1,6
OL76 300 HDG
Item no.
6902815
Length
3000
Width
300
Rail thickness
1,6
OL76 400 HDG
Item no.
6902819
Length
3000
Width
400
Rail thickness
1,6
OL76 500 HDG
Item no.
6902823
Length
3000
Width
500
Rail thickness
2
OL76 600 HDG
Item no.
6902827
Length
3000
Width
600
Rail thickness
2
OL76 800 HDG
Item no.
6902831
Length
3000
Width
800
Rail thickness
2
OL76 1000 HDG
Item no.
6902835
Length
3000
Width
1000
Rail thickness
2
