Cable ladder OL55, 3 m
Type OL55 100 HDG
|Item no. 6902503
|EAN 4012196068432
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 3 m
3m
m
Description

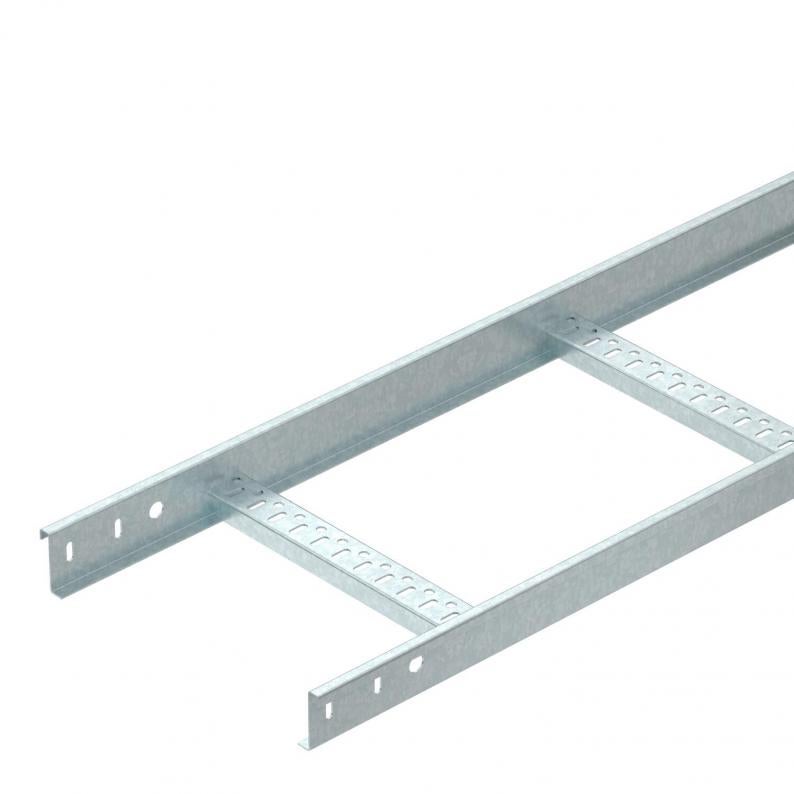

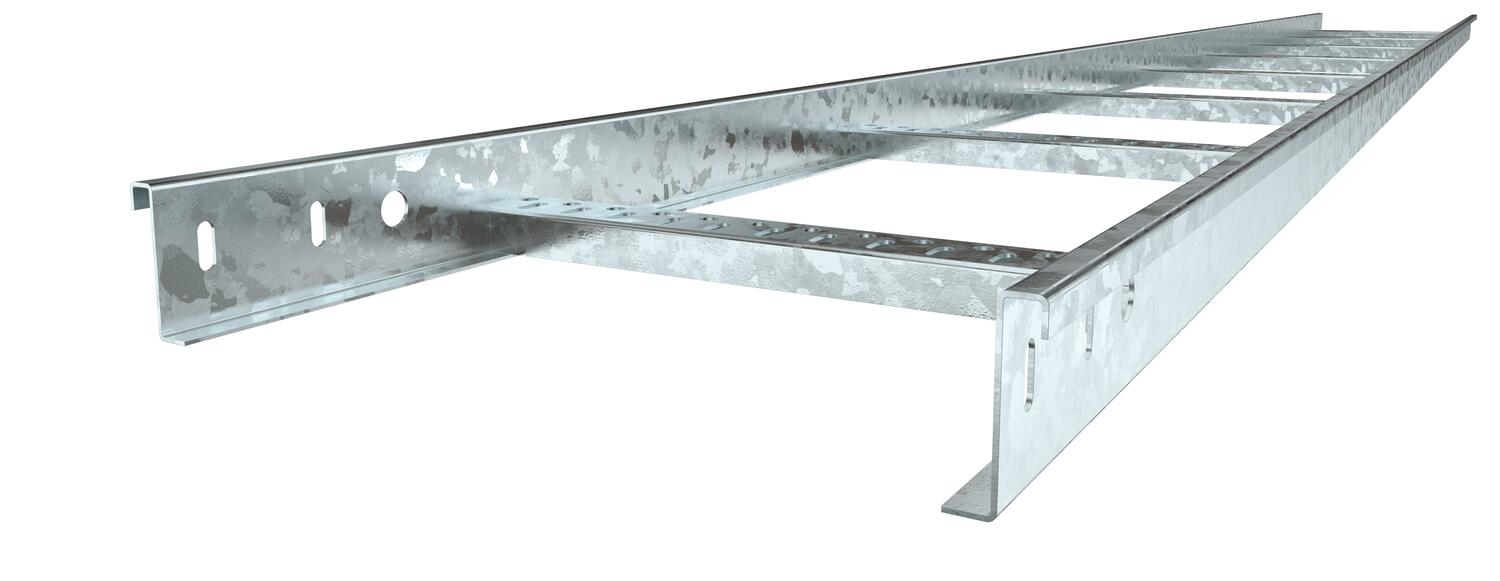

Light-duty OL55 cable ladder system, welded version. The side height is 55 mm with a supply length of 3000 mm.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 55 mm |
| Dimension B | 100 mm |
Loads
| Support spacing 1.0 m | 1,9 kN/m |
|---|---|
| Support spacing 1.5 m | 1,35 kN/m |
| Support spacing 2.0 m | 0,75 kN/m |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 1,6 mm |
| Dimension | 55x150x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
OL55 100 HDG
3000
100
1,6
6902503
OL55 150 HDG
3000
150
1,6
6902507
OL55 200 HDG
3000
200
1,6
6902511
OL55 300 HDG
3000
300
1,6
6902515
Width
OL55 100 HDG
Item no.
6902503
Length
3000
Width
100
Rail thickness
1,6
OL55 150 HDG
Item no.
6902507
Length
3000
Width
150
Rail thickness
1,6
OL55 200 HDG
Item no.
6902511
Length
3000
Width
200
Rail thickness
1,6
OL55 300 HDG
Item no.
6902515
Length
3000
Width
300
Rail thickness
1,6
