Cable ladder MS50, 3 m
Type MS50 150 HDG
|Item no. 6906703
|EAN 4012196077052
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 3 m
3m
m
Description

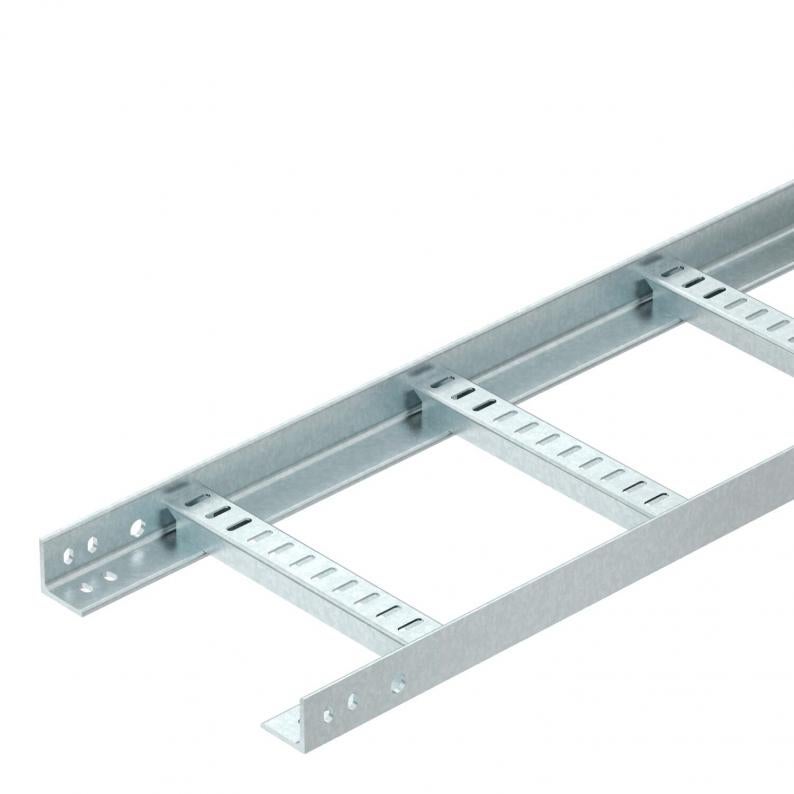

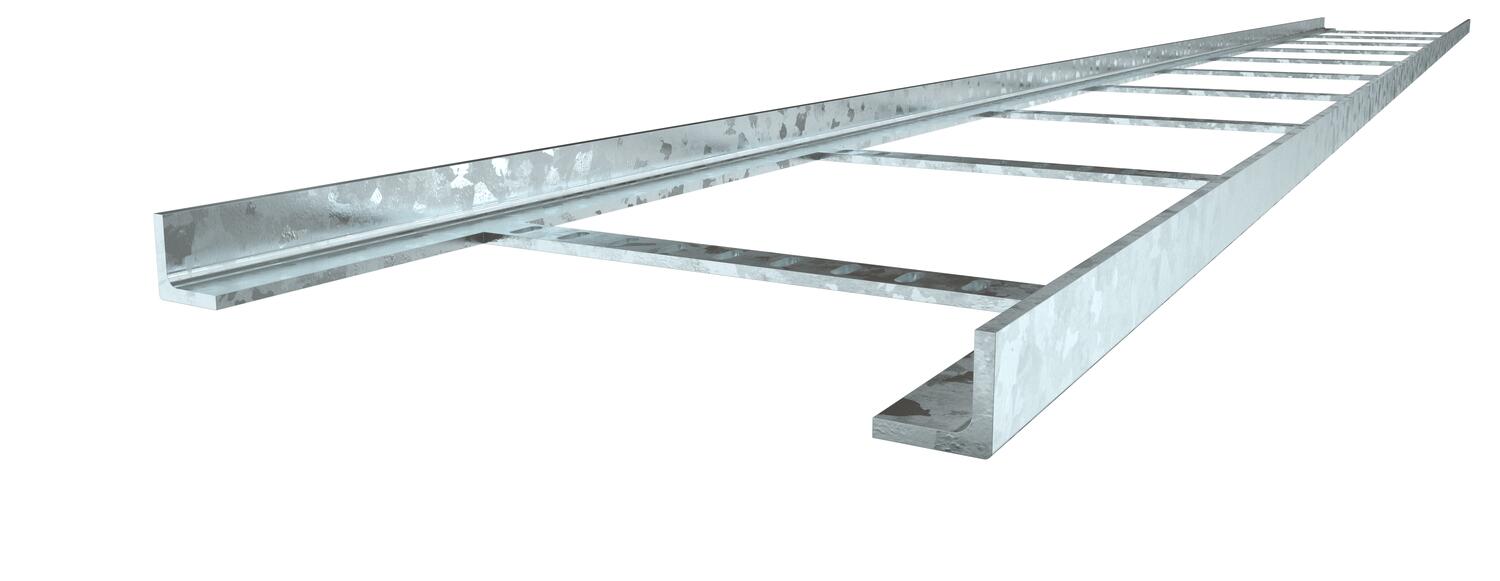

MS50 cable ladder system, welded version. The side height is 50 mm with a supply length of 3,000 mm.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 50 mm |
| Dimension B | 150 mm |
Technical data
| Rung distance | 300 mm |
|---|---|
| Rail thickness | 5 mm |
| Dimension | 3000x150x50 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Item no.
MS50 150 HDG
3000
150
5
6906703
MS50 200 HDG
3000
200
5
6906707
MS50 300 HDG
3000
300
5
6906711
MS50 400 HDG
3000
400
5
6906715
MS50 500 HDG
3000
500
5
6906719
MS50 600 HDG
3000
600
5
6906723
MS50 800 HDG
3000
800
5
6906727
MS50 1000 HDG
3000
1000
5
6906731
Width
MS50 150 HDG
Item no.
6906703
Length
3000
Width
150
Rail thickness
5
MS50 200 HDG
Item no.
6906707
Length
3000
Width
200
Rail thickness
5
MS50 300 HDG
Item no.
6906711
Length
3000
Width
300
Rail thickness
5
MS50 400 HDG
Item no.
6906715
Length
3000
Width
400
Rail thickness
5
MS50 500 HDG
Item no.
6906719
Length
3000
Width
500
Rail thickness
5
MS50 600 HDG
Item no.
6906723
Length
3000
Width
600
Rail thickness
5
MS50 800 HDG
Item no.
6906727
Length
3000
Width
800
Rail thickness
5
MS50 1000 HDG
Item no.
6906731
Length
3000
Width
1000
Rail thickness
5
