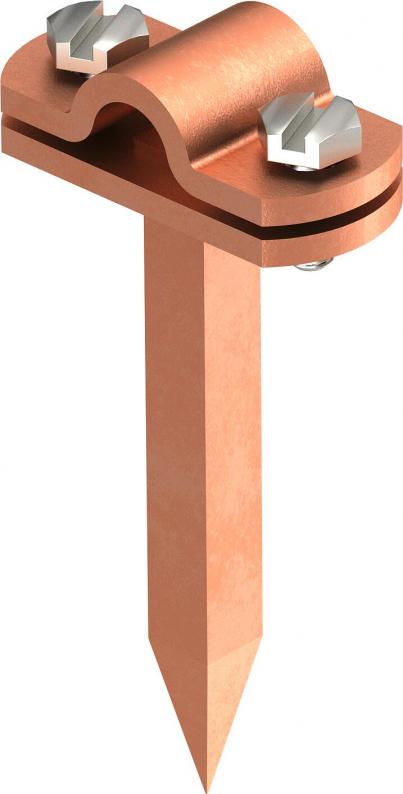

Cable bracket Rd 8−10 mm, with square pin, copper-plated
Type 163 100 CU
Item no. 5223601
EAN 4012195409939
Item no. / Type
5223601 / 163 100 CU
Cable dimensions
8−10 mm round
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
piece
Description
• Complete with crossbar and hexagonal bolts
• With square pin for rapid mounting
• With hexagonal bolts made of VA
• With square pin for rapid mounting
• With hexagonal bolts made of VA
Technical data

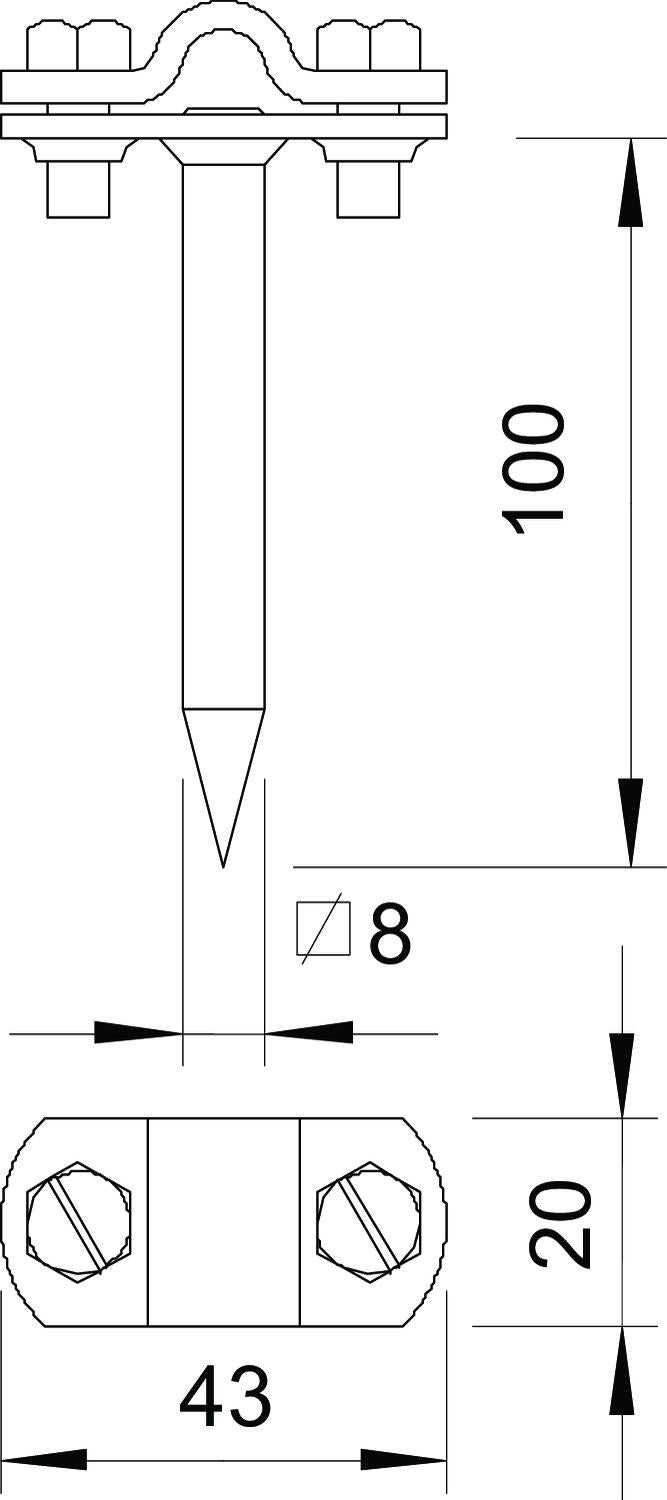

Dimensions
| Length | 100 mm |
|---|---|
| Dimension L | 100 mm |
Technical data
| Cable dimensions | 8−10 mm round |
|---|---|
| Holder fastening type | With impact pin |
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Copper |
| Material of the base | Copper |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Copper |
| ROHS-conformant | Exempt |
| Fit | Rd 8-10 mm |
| Dimension | 100mm |
| Material | Copper |
