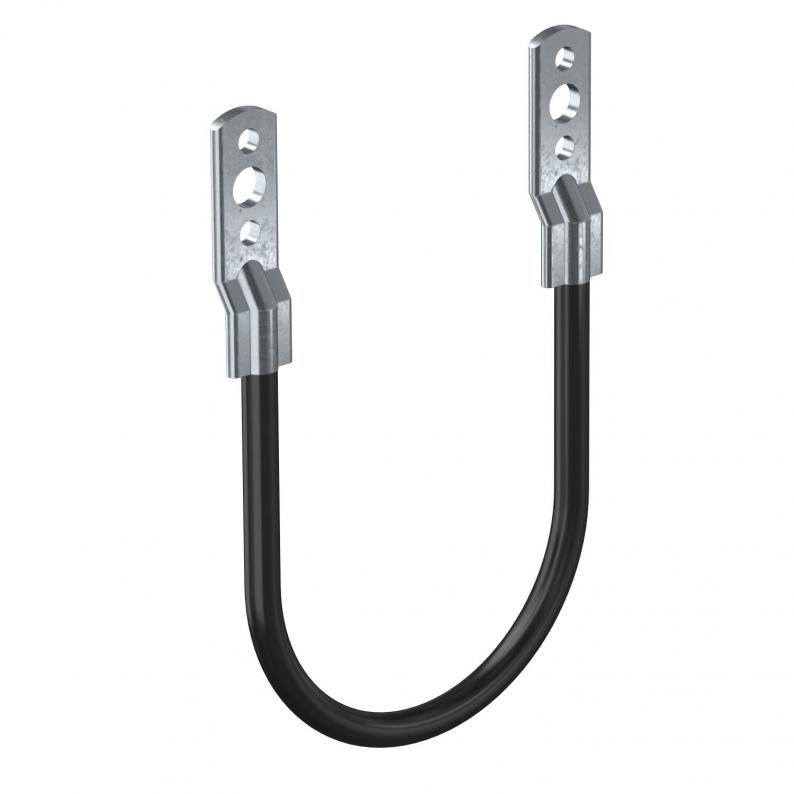

Bridging cable
Type 853 400 SA
Item no. 5331025
EAN 4012196775743
Item no. / Type
5331025 / 853 400 SA
Length
400 mm
Smallest selling unit: 1 piece
1piece
piece
Description
• With tin-plated copper cable lugs
• Made of flexible, insulated copper cable 16 mm²
• Coating: Black PVC
• With 1 mounting hole Ø 10.5 mm
• With 2 mounting holes Ø 6.5 mm
• Suitable for applications outside or inside
• Temperature range –10 °C – +80 °C
• Made of flexible, insulated copper cable 16 mm²
• Coating: Black PVC
• With 1 mounting hole Ø 10.5 mm
• With 2 mounting holes Ø 6.5 mm
• Suitable for applications outside or inside
• Temperature range –10 °C – +80 °C
Technical data

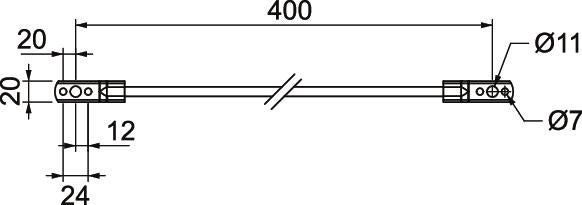

Dimensions
| Length | 400 mm |
|---|---|
| Width | 18 mm |
| Height | 4,5 mm |
| Length | 0,4 m |
Technical data
| Cross-section | 16 mm² |
|---|---|
| Dimension | 400mm |
| Material | Copper |
| Colour | Black |
| Accessories | yes |
| Spare part | no |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Item no.
853 400 SA
400
5331025
853 400 SA
Item no.
5331025
Length
400
