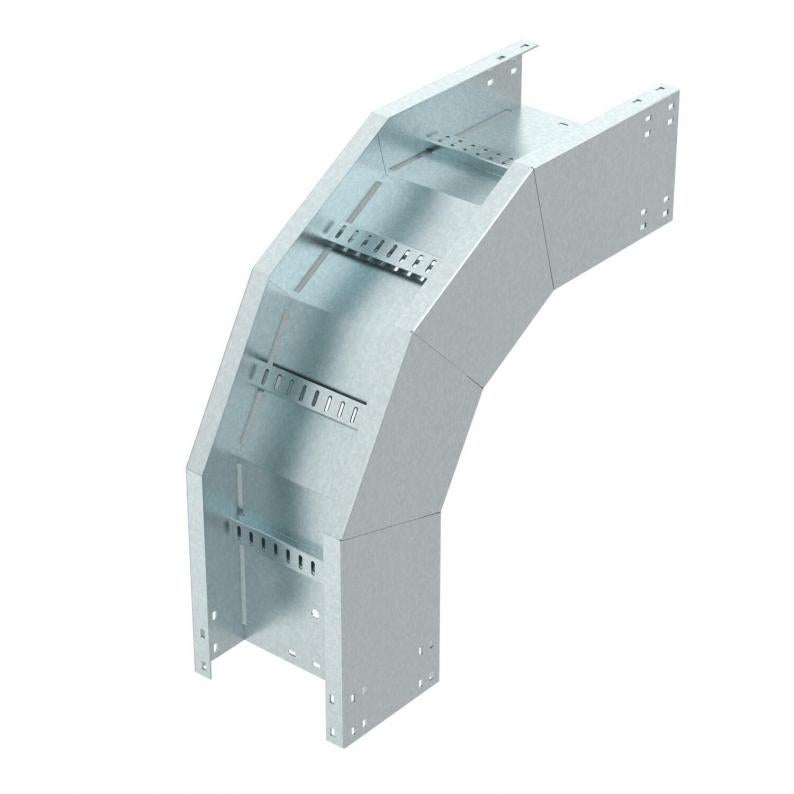

90° vertical bend, rising TS225 FT
Type TS225 300 HDG
|Item no. 6906263
|EAN 4012196076420
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, rising, for all TS225 cable ladder types of 225 mm side height.
Accessory radius = 450 mm.
Accessory radius = 450 mm.
Technical data
Dimensions
| Width | 300 mm |
|---|---|
| Height | 225 mm |
Technical data
| Rail thickness | 2,5 mm |
|---|---|
| Dimension | 983x983x225 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Rail thickness
Item no.
TS225 300 HDG
300
2,5
6906263
TS225 450 HDG
450
2,5
6906267
TS225 600 HDG
600
2,5
6906271
TS225 900 HDG
900
2,5
6906275
Width
TS225 300 HDG
Item no.
6906263
Width
300
Rail thickness
2,5
TS225 450 HDG
Item no.
6906267
Width
450
Rail thickness
2,5
TS225 600 HDG
Item no.
6906271
Width
600
Rail thickness
2,5
TS225 900 HDG
Item no.
6906275
Width
900
Rail thickness
2,5
