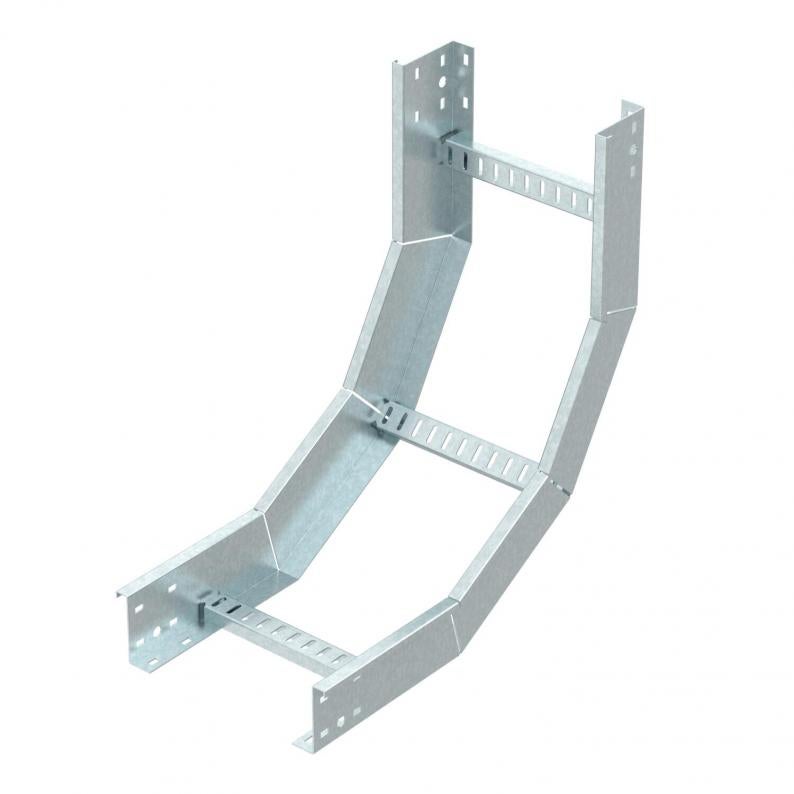

90° vertical bend, rising PS100 FT
Type PS100 150 HDG
|Item no. 6903803
|EAN 4012196071456
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, rising, for all PS100 cable ladder types of 100 mm side height.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Technical data
Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
Technical data
| Rail thickness | 2 mm |
|---|---|
| Dimension | 678x678x190 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Rail thickness
Item no.
PS100 150 HDG
150
2
6903803
PS100 200 HDG
200
2
6903807
PS100 300 HDG
300
2
6903811
PS100 400 HDG
400
2
6903815
PS100 500 HDG
500
2
6903819
PS100 600 HDG
600
2
6903823
PS100 800 HDG
800
2
6903827
PS100 1000 HDG
1000
2
6903831
Width
PS100 150 HDG
Item no.
6903803
Width
150
Rail thickness
2
PS100 200 HDG
Item no.
6903807
Width
200
Rail thickness
2
PS100 300 HDG
Item no.
6903811
Width
300
Rail thickness
2
PS100 400 HDG
Item no.
6903815
Width
400
Rail thickness
2
PS100 500 HDG
Item no.
6903819
Width
500
Rail thickness
2
PS100 600 HDG
Item no.
6903823
Width
600
Rail thickness
2
PS100 800 HDG
Item no.
6903827
Width
800
Rail thickness
2
PS100 1000 HDG
Item no.
6903831
Width
1000
Rail thickness
2
