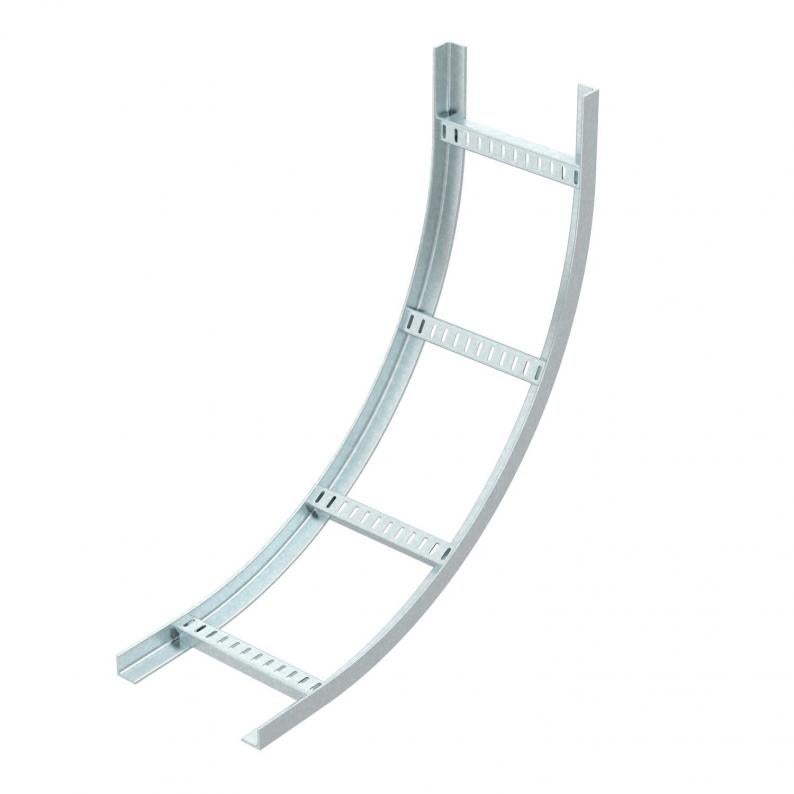

90° vertical bend, rising MS40 FT
Type MS40 150 HDG
|Item no. 6906503
|EAN 4012196076734
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, rising, for all MS40 cable ladder types of 40 mm side height.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.
Technical data
Dimensions
| Width | 150 mm |
|---|---|
| Height | 40 mm |
Technical data
| Rail thickness | 5 mm |
|---|---|
| Dimension | 880x880x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Rail thickness
Item no.
MS40 150 HDG
150
5
6906503
MS40 200 HDG
200
5
6906507
MS40 300 HDG
300
5
6906511
MS40 400 HDG
400
5
6906515
MS40 500 HDG
500
5
6906519
MS40 600 HDG
600
5
6906523
MS40 800 HDG
800
5
6906527
MS40 1000 HDG
1000
5
6906531
Width
MS40 150 HDG
Item no.
6906503
Width
150
Rail thickness
5
MS40 200 HDG
Item no.
6906507
Width
200
Rail thickness
5
MS40 300 HDG
Item no.
6906511
Width
300
Rail thickness
5
MS40 400 HDG
Item no.
6906515
Width
400
Rail thickness
5
MS40 500 HDG
Item no.
6906519
Width
500
Rail thickness
5
MS40 600 HDG
Item no.
6906523
Width
600
Rail thickness
5
MS40 800 HDG
Item no.
6906527
Width
800
Rail thickness
5
MS40 1000 HDG
Item no.
6906531
Width
1000
Rail thickness
5
